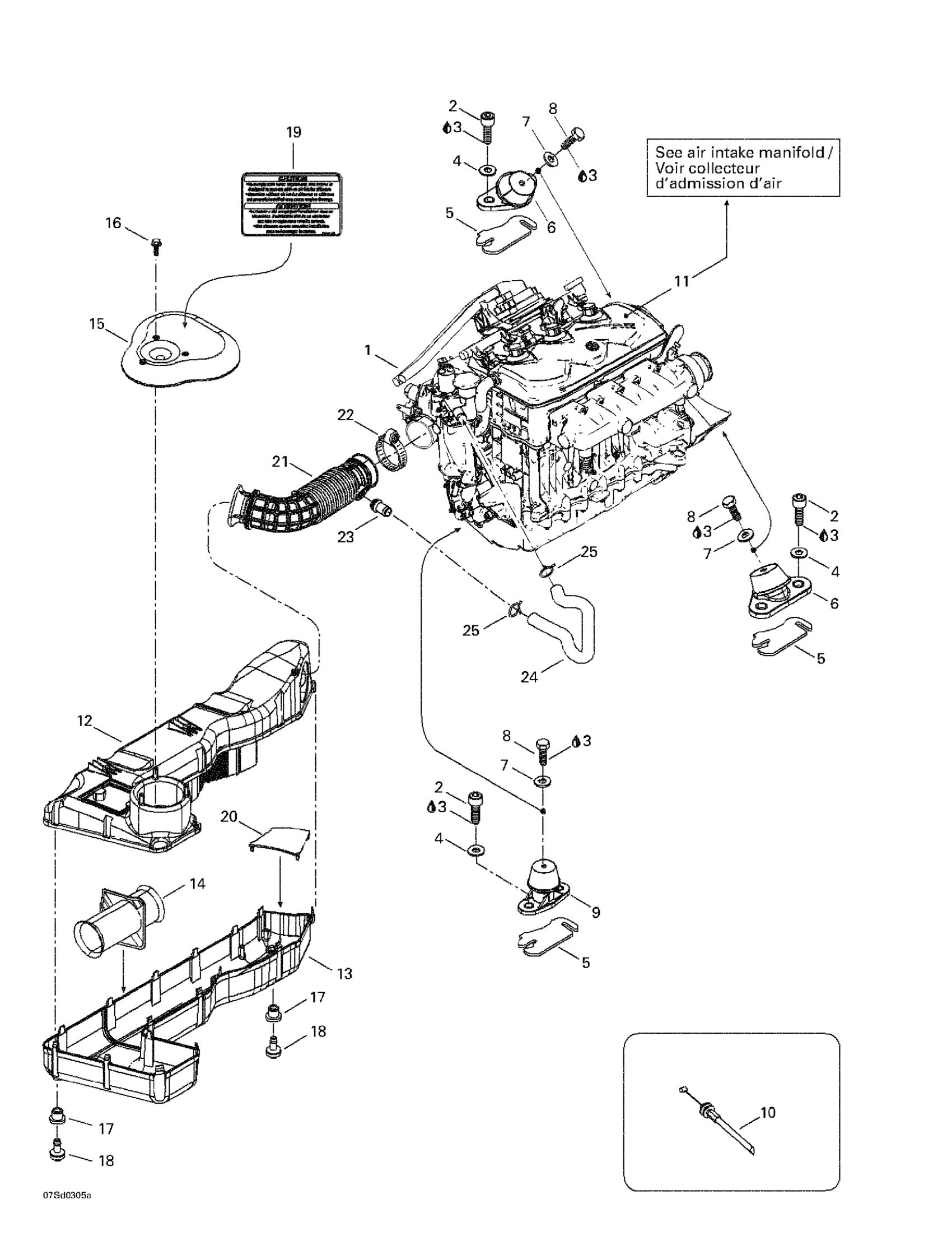

Sea-doo GTX 4-TEC Wake, 2003 Engine Support And Air Intake Diagram

#

Description
Price

1

Rotax Engine 4 Strokes «1503»

270000567

Unavailable

2

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

3

Loctite 243, 10 ml

293800060

$21.49

4

Cone Washer

250200018

$5.33

5

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

Shim 1.3 mm

270000762

$10.37

6

Engine Support Ass'y

270001081

$96.99

7

Flat Washer 8 mm, Stainless

234082600

$2.27

8

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

9

Engine Support Ass'y

270001096

$88.78

10

THROTTLE CABLE - Call your local BRP dealership

277001170

Unavailable

11

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

12

Air Silencer Upper Shell

273000189

Unavailable

13

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

14

Connector Tube

273000191

Unavailable

15

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

16

Hex. Flange Screw K40 X 16

241141660

$1.43

17

GROMMET - Call your local BRP dealership

293720064

Unavailable

18

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

19

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

20

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

21

INTAKE HOSE - Call your local BRP dealership

273000187

Unavailable

22

Tridon Clamp

293650064

$7.57

23

Breather Valve

273000234

$12.21

24

FORMED HOSE - Call your local BRP dealership

275500497

Unavailable

25

Spring Clamp

293650115

$2.82
