- GTX 4-TEC, Supercharged, 2005
10- Electrical Accessories

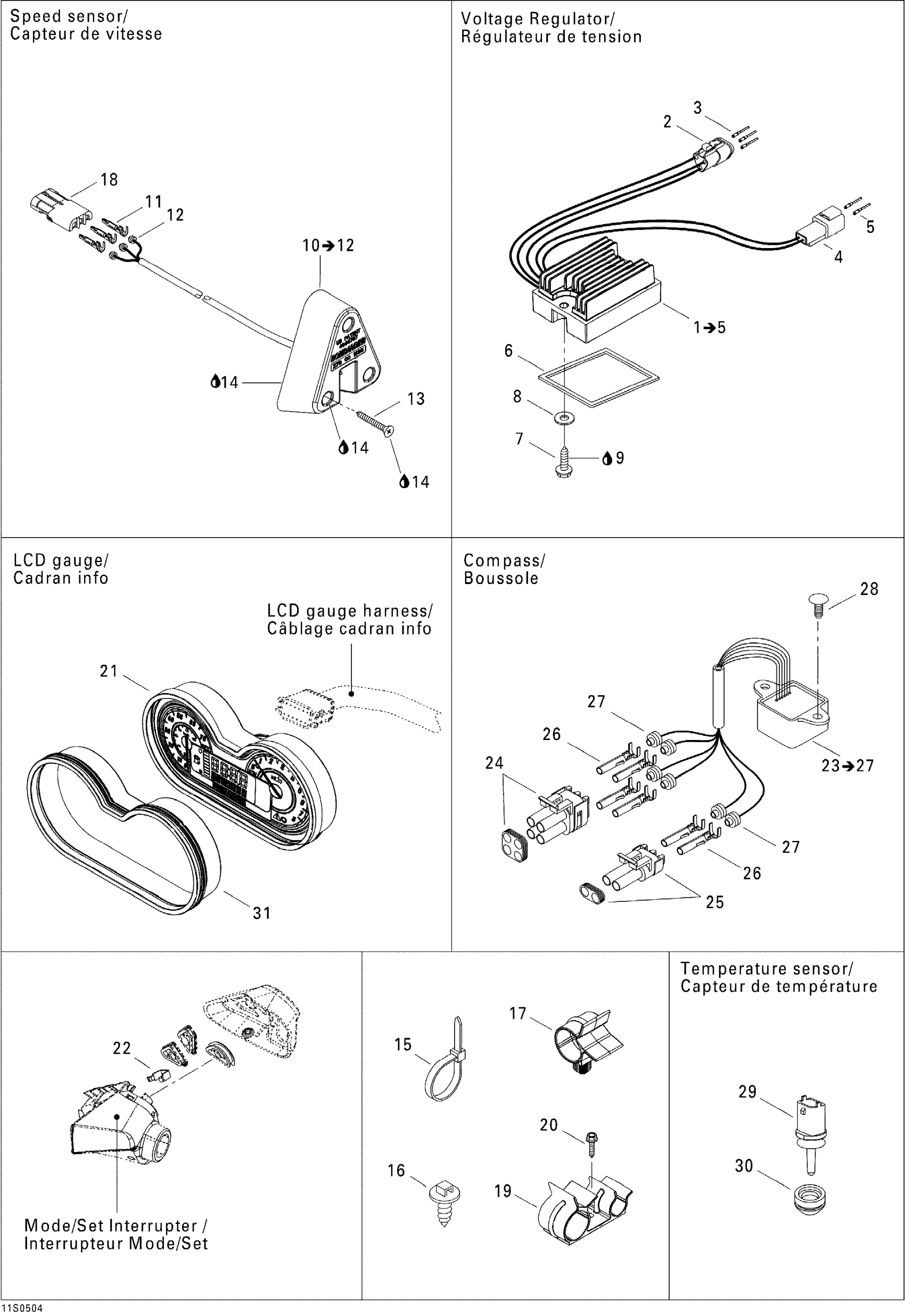

Sea-doo GTX 4-TEC, Supercharged, 2005 10- Electrical Accessories Diagram
#
Description
Price
1
REGULATOR - Call your local BRP dealership | Includes 11 to 15
278001969
$174.99
2
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership
278002375
$30.99
3
Male Terminal
278000631
$4.39
4
Male Housing, 2 Circuits
409206900
$9.59
5
Male Terminal
515175568
$9.12
6
SEAL - Call your local BRP dealership
293250123
Unavailable
7
Hex. Screw 10-14 X 7/8”
211000023
$3.59
8
Stainless Flat Washer M6
234061600
$0.33
9
Loctite 271, 10 ml
293800005
$26.99
10
Speed Sensor
278001993
$169.99
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
14
Silicone Sealant 51388, 300 ml
296000309
$36.99
15
Tie Wrap 142 mm
293750002
$1.25
15
Tie-Rap 180 mm
414115200
$0.11
15
Tie Wrap 368 mm
293750008
$1.04
15
Tie-Rap 206 mm
293750027
$2.89
16
Mount Dart
293730040
$1.04
17
Cable Retainer
275500527
$2.68
18
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
19
RETAINER - Call your local BRP dealership
275500553
Unavailable
20
Hex. Flange Screw K40 X 16
241141660
$1.48
21
CADRAN D'INFORMATION CENTRAL - Call your local BRP dealership
278002033
Unavailable
22
U Bracket
277001069
Unavailable
23
Compass | GTI RFI LE, Includes 38 to 42
278001243
Unavailable
24
CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership
278000891
Unavailable
25
Male Connector, 2 Circuits
278000220
$15.49
26
Female Terminal
278000223
$3.19
27
Wire Seal
278000218
$4.39
28
Black Dart
293730010
$0.99
29
AIR TEMPERATURE SENSOR - Call your local BRP dealership
270600000
Unavailable
30
INSULATOR - Call your local BRP dealership
278001054
Unavailable
31
GAUGE SUPPORT - Call your local BRP dealership
278001603
Unavailable
