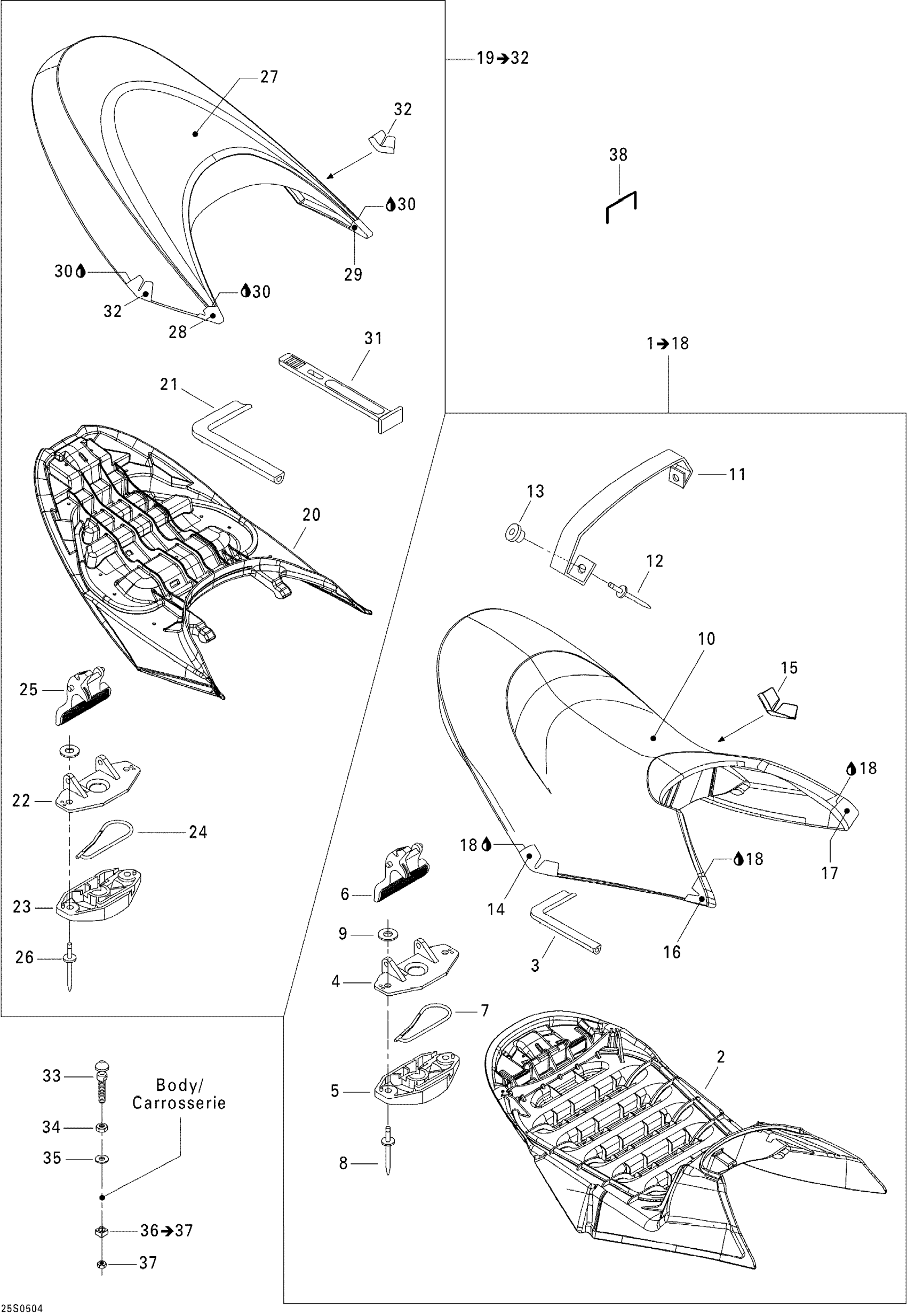

Sea-doo GTX 4-TEC, Supercharged, 2005 09- Seat Diagram
#
Description
Price
1
Front Seat Ass'y, Pearl Blue | STD, Includes 1 to 15
269001208
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Was 293200062 Seal
219704366
$76.49
4
Latch Ass'y
269700109
$24.99
5
Latch Ass'y
269700109
$24.99
6
Latch Ass'y
269700109
$24.99
7
Latch Spring
269700017
$9.19
8
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
9
Stainless Flat Washer M6
234061600
$0.33
10
Cover/foam, Front, Pearl Blue | STD
269001053
Unavailable
11
Seat Strap, Pearl Blue | STD
269001054
Unavailable
12
RIVET_POP 1/4 X ,725 - Call your local BRP dealership
293150078
Unavailable
13
Grommet
293720067
$12.99
14
RH Seat Corner, Pearl Blue | STD
269001055
Unavailable
15
LH Seat Corner, Pearl Blue | STD
269001056
Unavailable
16
RH Front Seat Corner, Pearl Blue | STD
269001057
Unavailable
17
LH Front Seat Corner, Pearl Blue | STD
269001058
Unavailable
18
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
19
Rear Seat Ass'y, Pearl Blue | STD, Includes 16 to 27
269001244
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Was 293200062 Seal
219704366
$76.49
22
Latch Ass'y
269700109
$24.99
23
Latch Ass'y
269700109
$24.99
24
Latch Spring
269700017
$9.19
25
Latch Ass'y
269700109
$24.99
26
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
27
Cover/foam, Rear, Pearl Blue | STD
269001062
Unavailable
28
RH Seat Corner, Pearl Blue | STD
269001063
Unavailable
29
LH Seat Corner, Pearl Blue | STD
269001064
Unavailable
30
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
31
Strap
269502417
$17.69
32
Seat Corner, Pearl Blue | STD
269001065
Unavailable
33
SEAT STUD - Call your local BRP dealership
291000945
Unavailable
34
Hex. Jam Nut M10
232100600
$2.22
35
Flat Washer 10 mm, Stainless
234002600
$2.22
36
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
37
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
38
Staple
293730005
Unavailable
