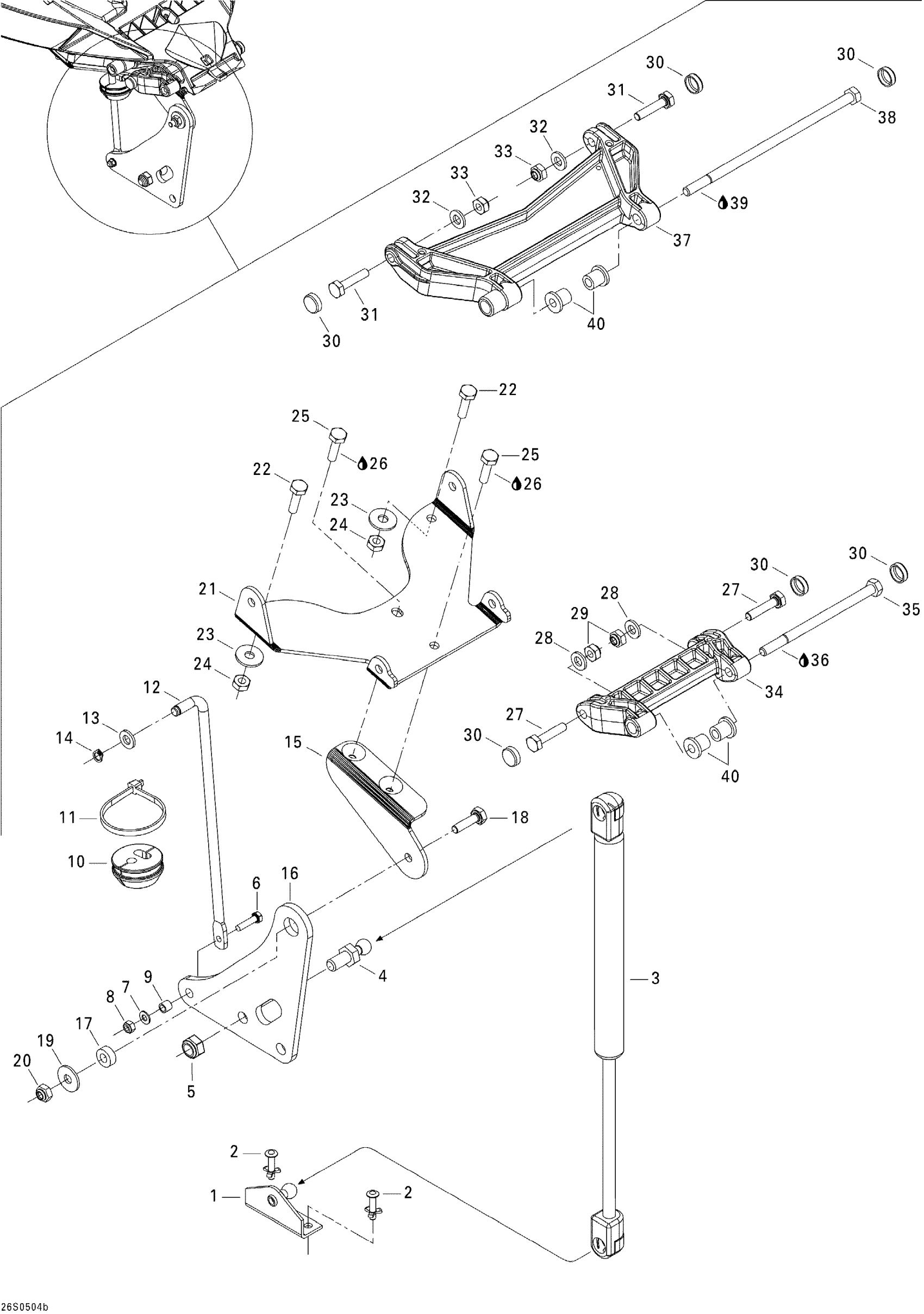

Sea-doo GTX 4-TEC, Supercharged, 2005 Front Storage Compartment 2 Diagram

#

Description
Price

1

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

2

Avdel Rivet 3/16"

293150037

$0.56

3

Gas Shock Ass'y

269501625

$77.99

4

Ball Head Stud

250300016

$14.81

5

Hex. Elastic Nut M8

232581600

$1.48

6

Hex. Screw M4 X 16 | Europe

207141660

$1.47

7

Flat Washer 4 mm, Stainless

234041600

$1.15

8

Elastic Stop Nut M4

232541600

$1.15

9

SPACER - Call your local BRP dealership

269501130

Unavailable

10

CABLE GROMMET - Call your local BRP dealership | North America

293720070

Unavailable

11

Tie-Rap 180 mm

414115200

$0.11

12

ROD - Call your local BRP dealership

269500842

Unavailable

13

Stainless Flat Washer M6

234061600

$0.33

14

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

15

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

16

LEVER - Call your local BRP dealership

269501576

Unavailable

17

SPACER - Call your local BRP dealership

269501172

Unavailable

18

Hex. Forming Screw M6 X 20

207162060

$1.29

19

Flat Washer M6, Stainless

234062600

$0.77

20

Hex. Elastic Stop Nut M6

232561600

$1.15

21

Pivot Support

269500934

Unavailable

22

Hex. Forming Screw M6 X 20

207162060

$1.29

23

Flat Washer M6, Stainless

234062600

$0.77

24

Hex. Elastic Stop Nut M6

232561600

$1.15

25

Hex. Forming Screw M6 X 20

207162060

$1.29

26

Loctite 243, 10 ml

293800060

$21.49

27

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

28

Stainless Flat Washer M6

234061600

$0.33

29

Hex. Elastic Stop Nut M6

232561600

$1.15

30

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

31

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

32

Stainless Flat Washer M6

234061600

$0.33

33

Hex. Elastic Stop Nut M6

232561600

$1.15

34

FRONT ARM - Call your local BRP dealership

269501482

$19.99

35

Hex. Screw M6 X 100

230060060

$7.41

36

Loctite 243, 10 ml

293800060

$21.49

37

REAR ARM - Call your local BRP dealership

269501481

Unavailable

38

Hex. Screw M6 X 150

230065060

$10.16

39

Loctite 271, 10 ml

293800005

$26.99

40

Sleeve

269500706

$4.65
