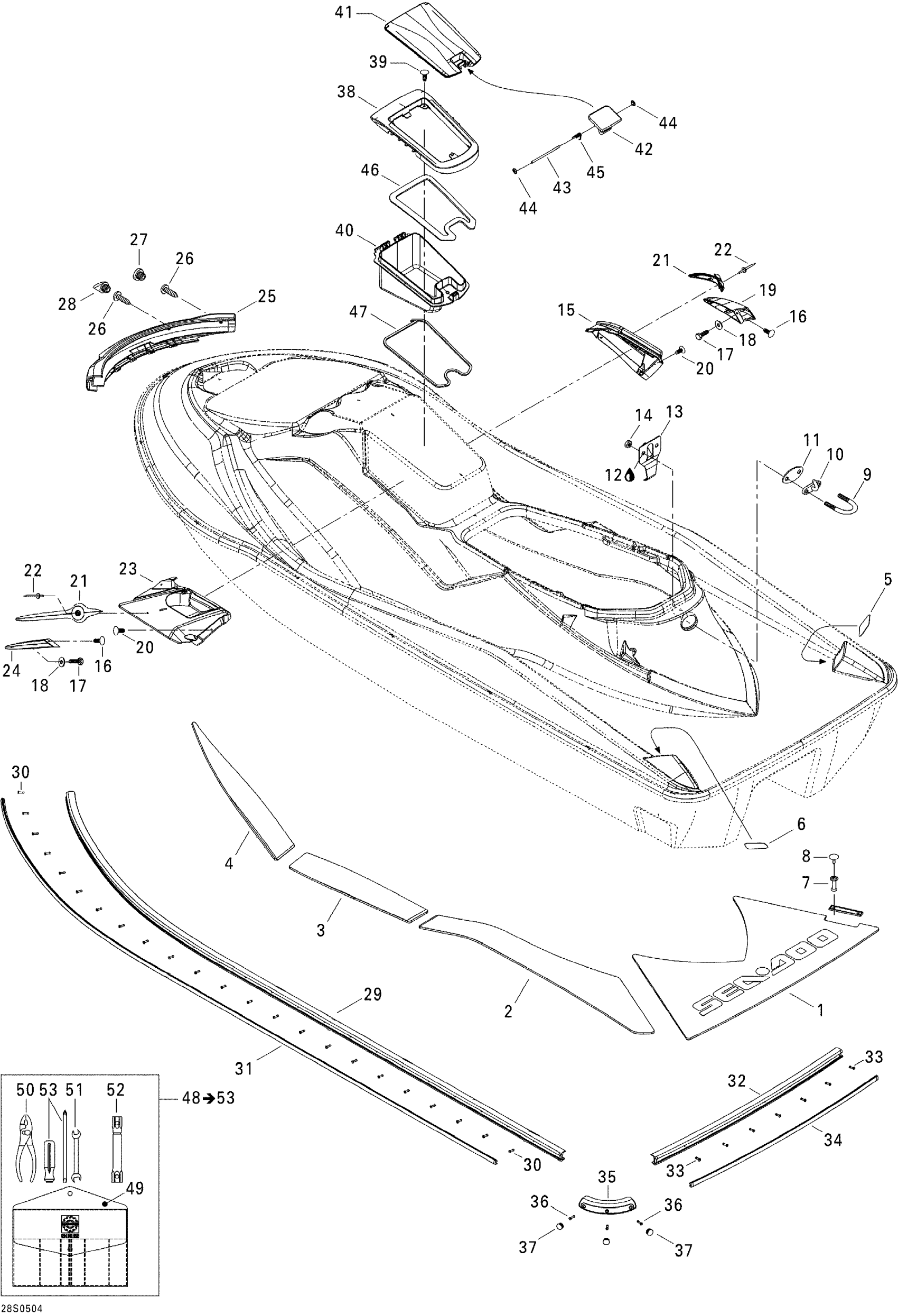

Sea-doo GTX 4-TEC, Supercharged, 2005 Body, Rear View Diagram

#

Description
Price

1

Rear Carpet

291002140

Unavailable

2

RH Center Rear Carpet

291002162

Unavailable

2

LH Center Rear Carpet

291002164

Unavailable

3

RH Center Front Carpet

291002166

Unavailable

3

LH Center Front Carpet

291002168

Unavailable

4

RH Front Carpet

291002170

Unavailable

4

LH Front Carpet

291002172

Unavailable

5

RH ANTI-SKID - Call your local BRP dealership

291001758

$7.66

6

LH Anti-Skid

291001759

Unavailable

7

Rivet 1/8"

293150016

$0.29

8

Black, Snap Cap

293000014

$0.85

9

U-CLAMP - Call your local BRP dealership

292000011

$51.51

10

Hook | Package LTD

291002351

$69.97

11

Black, Finition Plate

291001386

$8.57

12

Silicone Sealant 51388, 300 ml

296000309

$35.72

13

Retainer Plate

291001747

Unavailable

14

Hex. Elastic Nut M8

232581600

$1.25

15

RH GRILL, BLACK - Call your local BRP dealership | WAKE

269500931

$24.58

16

Black Dart

293730010

$0.81

17

Hex. Flange Screw K40 X 16

241141660

$1.25

18

Flat Washer 5 mm, Stainless

234052600

$0.64

19

RH INSERT - Call your local BRP dealership | WAKE

293450223

$13.82

20

Black, Dart

293730006

$0.81

21

FINITION PLATE - Call your local BRP dealership

269500716

$41.51

22

Pop Rivet 3/16"

293150008

$0.40

23

LH GRILL, BLACK - Call your local BRP dealership | WAKE

269500932

Unavailable

24

LH INSERT - Call your local BRP dealership | WAKE

293450224

$13.82

25

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

26

TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership

250000236

$3.91

27

Bumper Plug, Black

291001519

$4.28

28

Bumper Plug, Black

291001040

Unavailable

29

Black, Side Bumper

204050270

$175.35

30

Pop Rivet 3/16"

293150005

$0.40

31

SIDE BUMPER TRIM, BLUE PEARL - Call your local BRP dealership | STD

291001972

Unavailable

32

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

33

Pop Rivet 3/16"

293150005

$0.40

34

REAR BUMPER TRIM, BLUE PEARL - Call your local BRP dealership | STD

291001974

Unavailable

35

Bumper Corner

291002244

$38.32

36

Pop Rivet 3/16"

293150013

$1.11

37

Bumper Plug, Black

291000339

$2.34

38

Cover Trim, Black

269501031

$42.22

39

Black, Dart

293730006

$0.81

40

GLOVE BOX - Call your local BRP dealership

269500968

Unavailable

41

GLOVE BOX DOOR - Call your local BRP dealership

269501648

Unavailable

42

Latch, Black

269500553

$16.87

43

Pin

211400008

$7.32

44

Push Nut | Not shown

211100002

$0.83

45

Latch Spring

291000922

$4.80

46

GASKET - Call your local BRP dealership

293250126

Unavailable

47

GASKET - Call your local BRP dealership

293250127

Unavailable

48

Tool Kit | Includes 52 to 57

294000682

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Not Available As Spare Part - Friction Washer

Unavailable

51

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

52

Socket Wrench

529035731

Unavailable

53

DRIVER SCREW - Call your local BRP dealership

529019200

Unavailable
