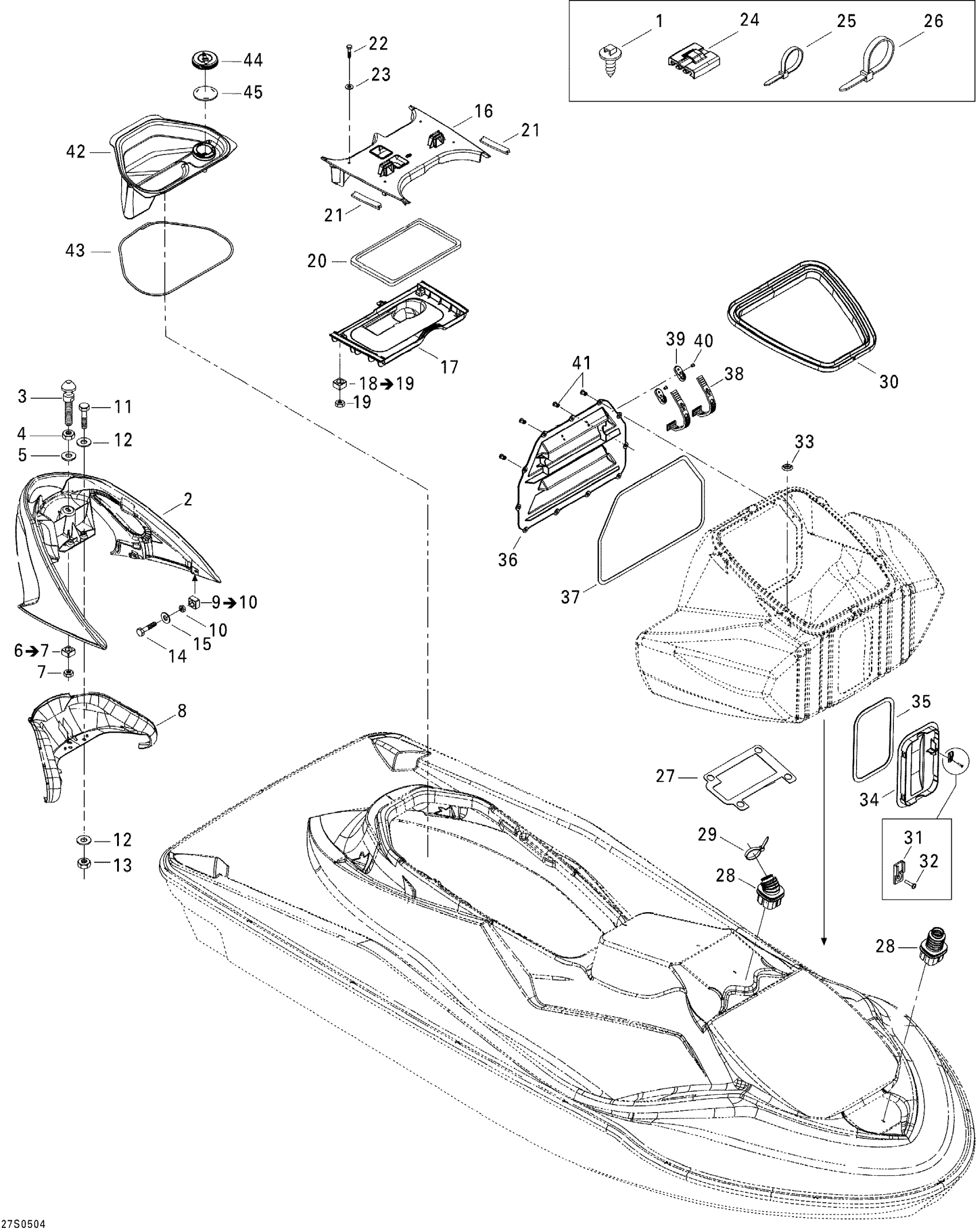

Sea-doo GTX 4-TEC, Supercharged, 2005 Body, Front View Diagram

#

Description
Price

1

Mount Dart

293730040

$1.04

2

GRAB HANDLE, BLACK - Call your local BRP dealership

269000722

Unavailable

3

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

4

Hex. Jam Nut M10

232100600

$2.22

5

Flat Washer 10 mm, Stainless

234002600

$2.22

6

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

7

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

8

HANDLE COVER, BLACK - Call your local BRP dealership

269000749

Unavailable

9

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

Hex. Screw M8 X 45

207084560

$3.38

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

Hex. Elastic Nut M8

232581600

$1.48

14

Hex. Screw M6 X 25

207162560

$1.47

15

Flat Washer M6, Stainless

234062600

$0.77

16

UPPER BRIDGE, BLACK - Call your local BRP dealership

291002136

Unavailable

17

Lower Bridge, Black

291002138

Unavailable

18

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

19

Elastic Stop Nut M6, Brass

232561200

$4.23

20

GASKET - Call your local BRP dealership

293200090

Unavailable

21

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

22

Hex. Screw M6 X 75

207167560

Unavailable

23

Flat Washer M6, Stainless

234062600

$0.77

24

Tie-Rap Mount

293750025

$1.25

25

Tie-Rap 180 mm

414115200

$0.11

26

Tie Wrap 368 mm

293750008

$1.04

27

GASKET - Call your local BRP dealership

293250171

Unavailable

28

GROMMET - Call your local BRP dealership

293720042

Unavailable

29

Tie-Rap 180 mm

414115200

$0.11

30

Cover Trim

269501234

Unavailable

31

Clip

270000141

$11.49

32

Flange Screw K40 X 20

241642060

$1.15

33

Black Plug

291000279

$7.69

34

Front Door

291001744

Unavailable

35

Gasket, Neoprene 2000Mm Long

219704476

$15.36

36

Rear Door

291001743

Unavailable

37

Gasket, Neoprene 2000Mm Long

219704476

$15.36

38

Strap

269502417

$17.69

39

Hook

269500521

$9.09

40

Avdel Rivet

293150027

$2.49

41

Tuflok Plastic Rivet

293150230

$1.47

42

Rear Tray

269501036

Unavailable

43

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

44

COVER - Call your local BRP dealership

269000788

Unavailable

45

COVER SEAL - Call your local BRP dealership

269000810

Unavailable
