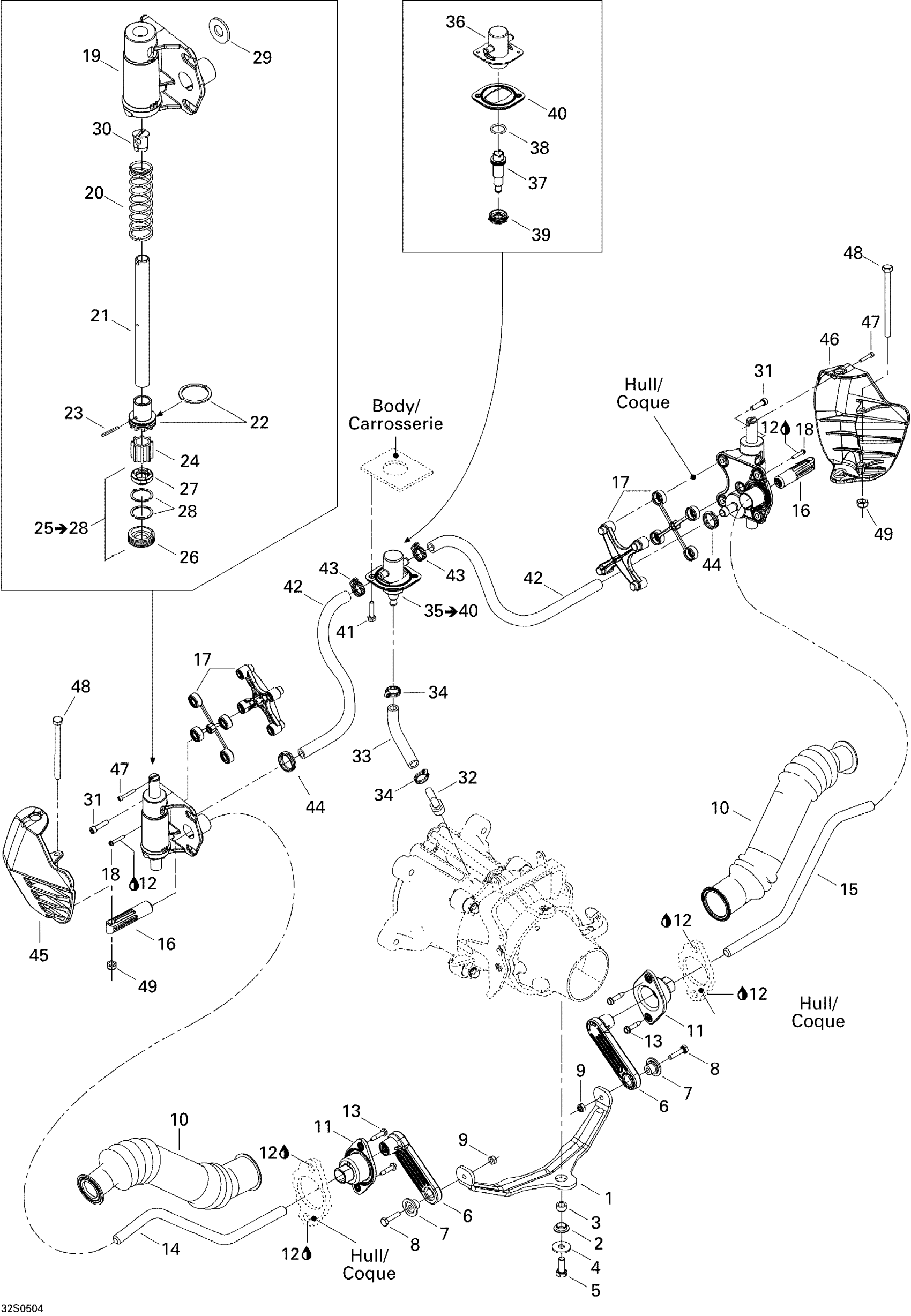

Sea-doo GTX 4-TEC, Supercharged, 2005 Off Power Assisted Steering Diagram

#

Description
Price

1

U LEVER - Call your local BRP dealership

277000979

Unavailable

2

Venturi Bushing

271000321

$8.69

3

Bushing

277000980

$15.99

4

Flat Washer 8 mm, Stainless

234082600

$2.43

5

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

6

LEVER - Call your local BRP dealership

265000013

Unavailable

7

FLANGED BUSHING - Call your local BRP dealership

293900042

Unavailable

8

Hex. Screw M6 X 25

207162560

$1.47

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

Seal Tube

277001123

$45.99

11

ROD GROMMET - Call your local BRP dealership

277001164

Unavailable

12

Silicone Sealant 51388, 300 ml

296000309

$36.99

13

Hex. Screw 10-14 X 7/8”

211000023

$3.59

14

LH TIE ROD - Call your local BRP dealership

277000976

Unavailable

15

RH TIE ROD - Call your local BRP dealership

277001063

Unavailable

16

FITTING STABILISATOR - Call your local BRP dealership

265000014

Unavailable

17

SUPPORT PLATE ASS'Y - Call your local BRP dealership

277001177

Unavailable

18

Hex. Flange Screw K40 X 25

241142560

$2.64

19

LH Cylinder Support

265000016

Unavailable

19

RH CYLINDER SUPPORT - Call your local BRP dealership

265000036

Unavailable

20

SPRING - Call your local BRP dealership

277000962

Unavailable

21

Pivot Rod

277001091

$56.99

22

PISTON ASSY - Call your local BRP dealership

277001080

Unavailable

23

Spring Pin

250400014

$3.28

24

SPACER - Call your local BRP dealership

277001168

Unavailable

25

COVER ASS?Y - Call your local BRP dealership | Includes 25 to 27

265000008

Unavailable

26

Threaded Cover

265000009

Unavailable

27

WEAR RING - Call your local BRP dealership

277000985

Unavailable

28

Split Ring

277000986

Unavailable

29

SEAL - Call your local BRP dealership

293250119

Unavailable

30

LOCKING INSERT - Call your local BRP dealership

277001185

Unavailable

31

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

32

ELBOW ASSY - Call your local BRP dealership

271001298

Unavailable

33

Formed Hose

276000139

Unavailable

34

Norma Clamp

293650080

Unavailable

35

VALVE ASSY - Call your local BRP dealership | Includes 35 to 40

277001178

Unavailable

36

Valve Housing

277000999

Unavailable

37

VALVE ASSY - Call your local BRP dealership | Includes 35 to 40

277001178

Unavailable

38

O-Ring

414542700

Unavailable

39

Threaded Cover

265000009

Unavailable

40

Seal

293250144

Unavailable

41

Hex. Screw 10-14 X 7/8”

211000023

$3.59

42

Was 276000001 Hose 12.5 mm

219704394

$51.99

43

Tridon Gear Clamp

293650172

$3.09

44

OETIKER CLAMP - Call your local BRP dealership

293650123

Unavailable

45

LH SIDE VANE - Call your local BRP dealership

277001486

Unavailable

46

RH Side Vane

277001487

$51.99

47

Socket Head Screw M4 X 25

205042560

$2.22

48

HEX. SCREW M8 X 110 - Call your local BRP dealership

250000077

Unavailable

49

Hex. Elastic Nut M8

232581600

$1.48
