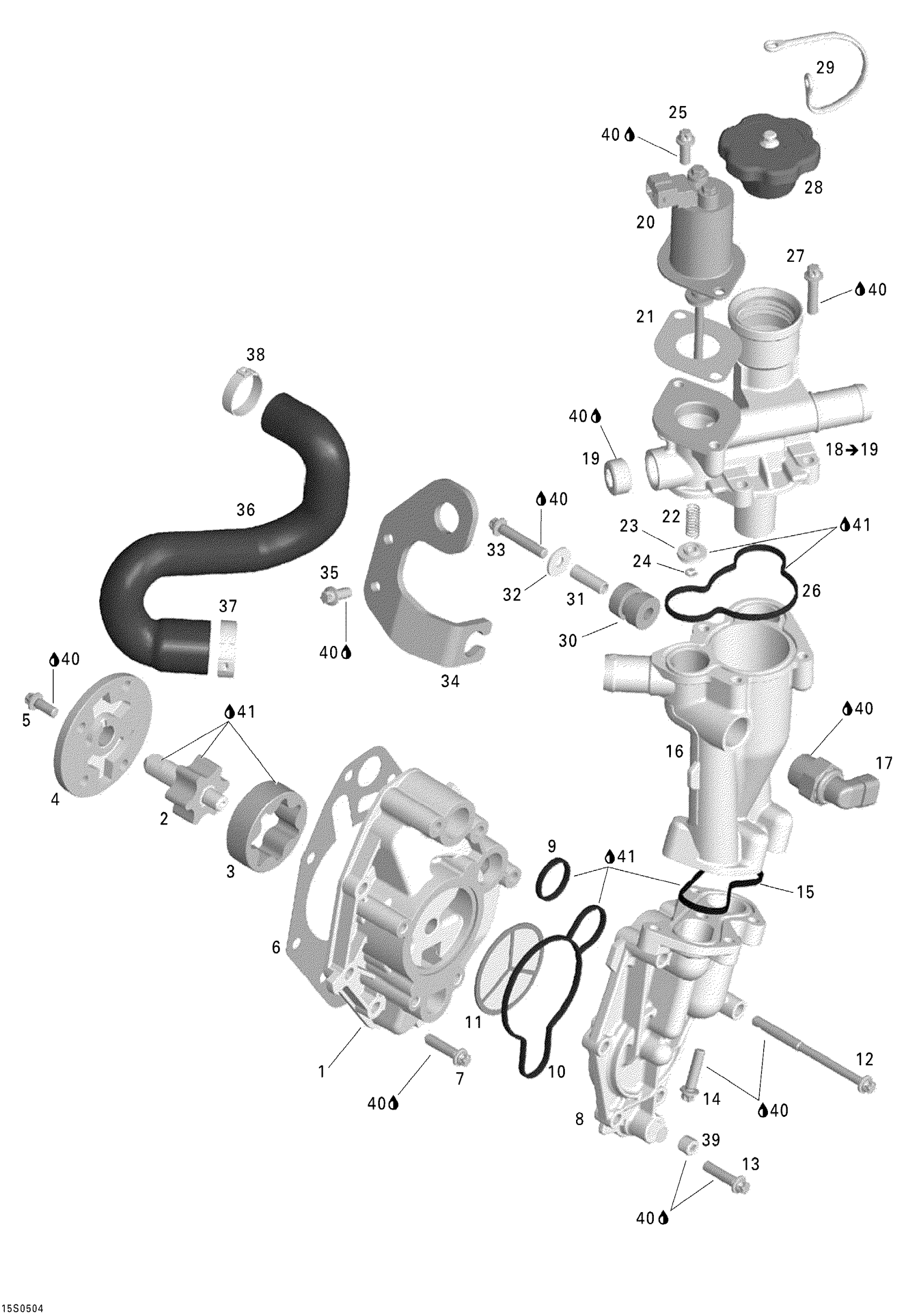

Sea-doo GTX 4-TEC, Supercharged, 2005 Oil Separator Diagram

#

Description
Price

1

OIL PUMP HOUSING - Call your local BRP dealership

420811840

Unavailable

2

PUMP SHAFT ASS'Y - Call your local BRP dealership

420837542

Unavailable

3

Oil Pump Rotor 16 mm

420956675

$36.99

4

Oil Pump Cover

420811851

$33.99

5

Torx Flange Screw M6 X 16

420641048

$2.96

6

Gasket

420950970

$12.64

7

Torx Flange Screw M6 X 25

420641238

$3.27

8

OIL SIEVE COVER - Call your local BRP dealership

420811892

Unavailable

9

SEAL RING - Call your local BRP dealership

420630240

Unavailable

10

GASKET - Call your local BRP dealership

420950850

Unavailable

11

OIL SIEVE - Call your local BRP dealership

420256570

Unavailable

12

Torx Flange Screw M6 X 85

420641228

$7.41

13

Torx Flange Screw M6 X 25

420641238

$3.27

14

Torx Flange Screw M6 X 25

420641238

$3.27

15

GASKET - Call your local BRP dealership

420630231

Unavailable

16

OIL SEPARATOR HOUSING - Call your local BRP dealership

420956761

Unavailable

17

Interr.Pression*Oil Tk Pres Sw This part replaces 420256885.

420256886

$51.99

18

OIL SEPARATOR COVER - Call your local BRP dealership

420811962

Unavailable

19

Plug Screw M20 X 1.5

420641317

$14.22

20

SOLENOID SHUT-OFF - Call your local BRP dealership

420956661

$329.99

21

Gasket

420630540

Unavailable

22

COMPRESSION SPRING - Call your local BRP dealership

420939250

Unavailable

23

VALVE DISC - Call your local BRP dealership

420856055

Unavailable

24

RETAINING RING - Call your local BRP dealership

420845620

Unavailable

25

Torx Flange Screw M6 X 16

420641048

$2.96

26

GASKET - Call your local BRP dealership

420630220

Unavailable

27

Torx Flange Screw M6 X 25

420641238

$3.27

28

Plug Cover, Yellow

420956923

$23.49

29

Retaining Band

420660620

$7.41

30

Rubber Bracket

420660090

$4.12

31

SPACER - Call your local BRP dealership

420847970

Unavailable

32

Flat Washer M6

420827968

$1.90

33

Torx Flange Screw M6 X 35

420641258

$3.38

34

FRONT TRANSPORT BRACKET - Call your local BRP dealership

420851610

Unavailable

35

Torx Flange Screw M6 X 16

420641048

$2.96

36

Formed Hose

420956970

Unavailable

37

Gear Clamp

420851673

$5.71

38

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

39

Plug Screw M10 X 1

420641323

$14.28

40

Loctite 243, 10 ml

293800060

$21.49

41

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
