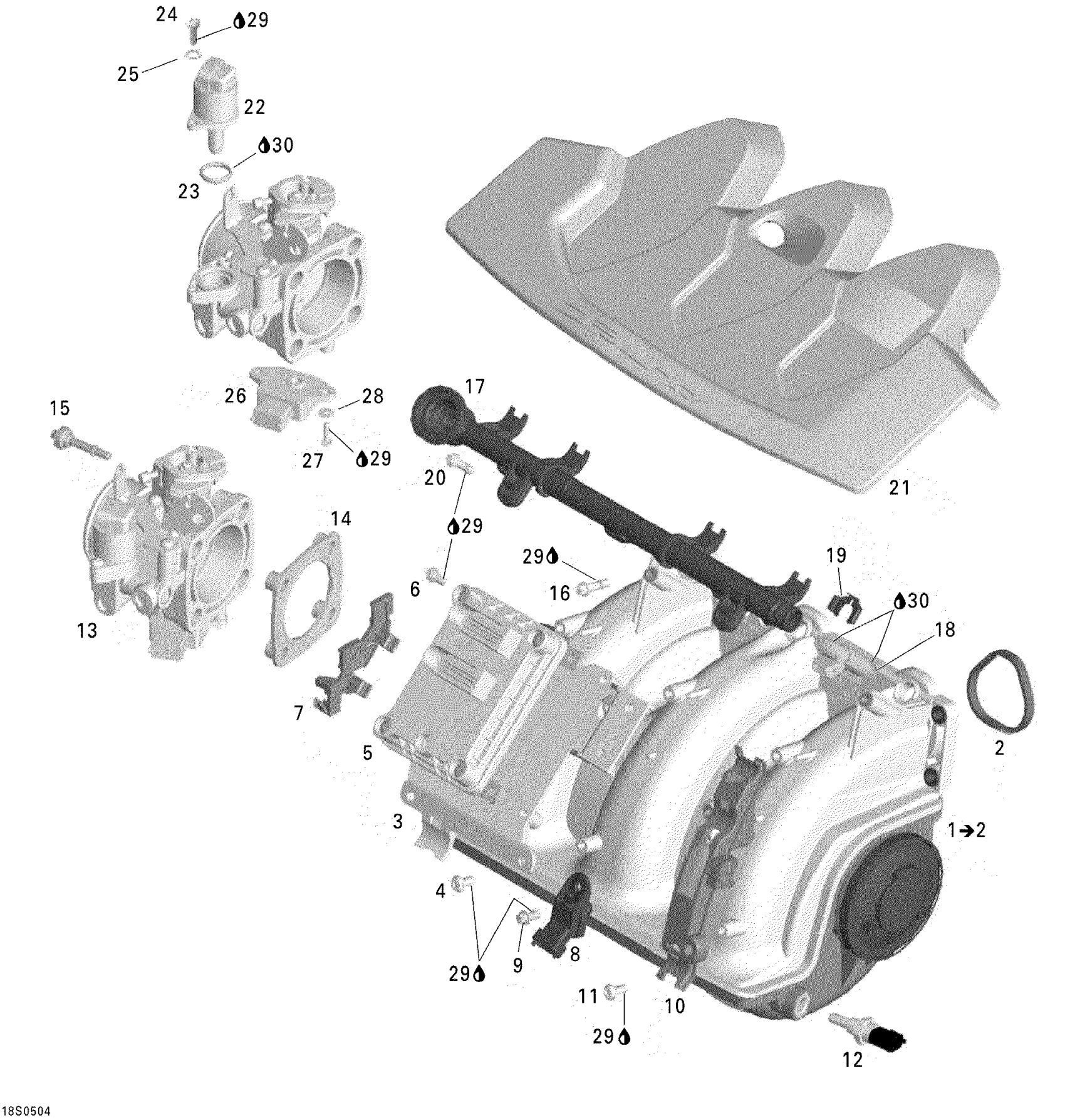

Sea-doo GTX 4-TEC, Supercharged, 2005 Air Intake Manifold Diagram

#

Description
Price

1

Induction Manifold | Includes 1 to 2

420867951

$610.74

2

Gasket | Included in gasket kit

420950740

$3.61

3

BASE PLATE - Call your local BRP dealership

420851521

$52.28

4

Torx Flange Screw M6 X 16

420641048

$2.46

5

ELECTRONIC BOX - Call your local BRP dealership

420665471

Unavailable

6

Torx Flange Screw M6 X 16

420641588

$1.74

7

CONNECTOR BRACKET - Call your local BRP dealership

420660402

$5.62

8

Pressure Sensor

420274058

$109.17

9

Torx Flange Screw M6 X 16

420641048

$2.46

10

WIRING SUPPORT - Call your local BRP dealership

420660410

$8.60

11

Torx Flange Screw M6 X 16

420641588

$1.74

12

Temperature Sensor

278002895

$31.82

13

Throttle Body

420892450

Unavailable

14

Rubber Gasket

420950792

$8.89

15

Allen Screw M6 x 30,5

420440561

$3.67

16

Torx Flange Screw M6 X 25

420641238

$2.68

17

FUEL RAIL ASS'Y - Call your local BRP dealership

420874391

Unavailable

18

Fuel Injector | Includes 19 to 20

420874520

$119.57

19

Injector Clip

420853030

$2.46

20

Torx Flange Screw M6 X 25

420641238

$2.68

21

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

$39.97

22

Idle Bypass Valve

420963051

$254.12

23

O-Ring

420631780

$3.61

24

Binding Head Screw M5 X 16

420440911

$11.48

25

Snap Ring

420845710

$3.38

26

Position Sensor

420866120

$77.97

27

Phillips Screw M4 X 16

208641660

$0.74

28

Flat Washer 4 mm, Stainless

234042600

$0.92

29

Loctite 243, 10 ml

293800060

$20.77

30

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
