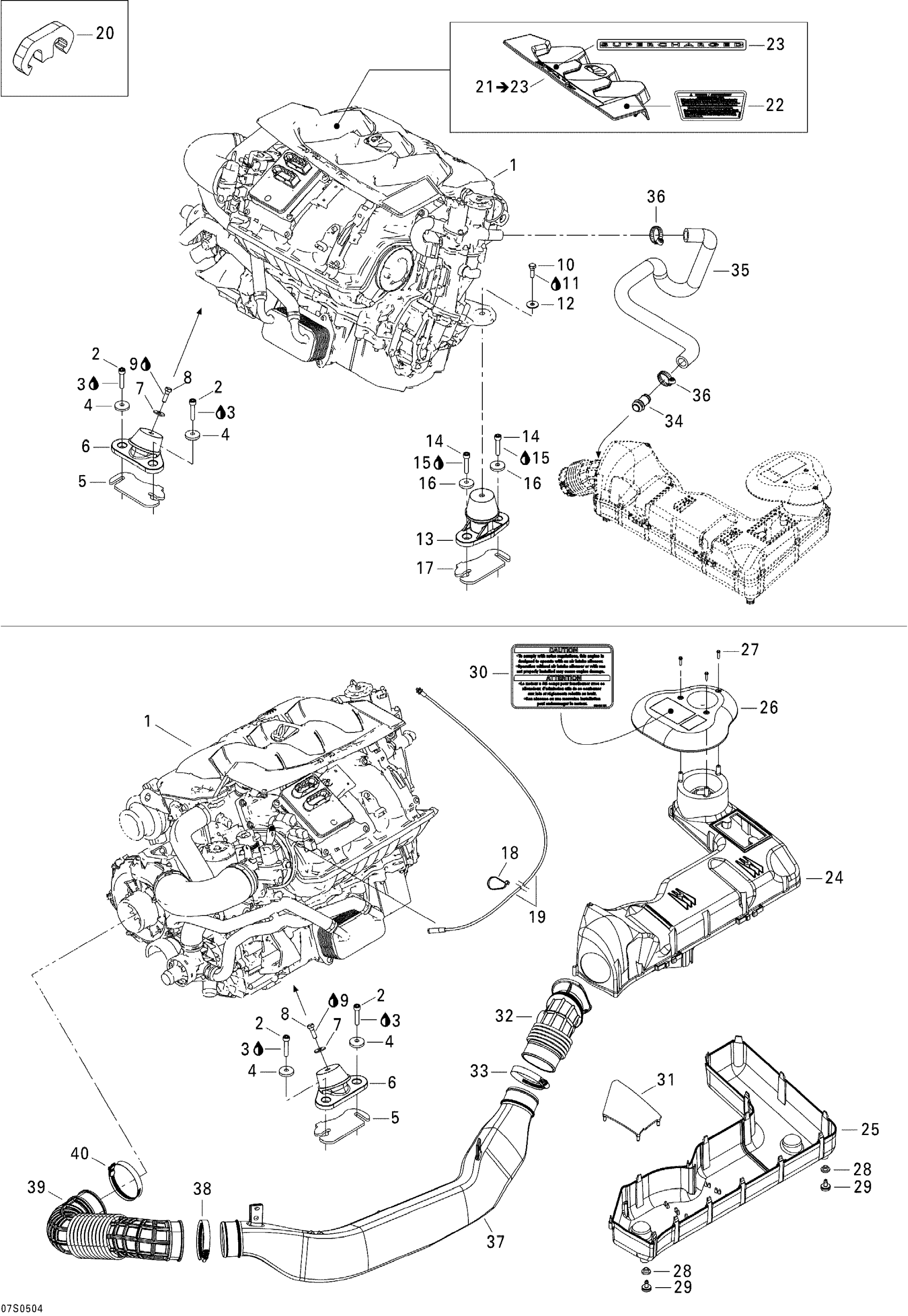

Sea-doo GTX 4-TEC, Supercharged, 2005 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Rotax Engine 4 Strokes «1503 SC»

270000644

Unavailable

1

REBUILD-LONG BLOCK 1503BV - Call your local BRP dealership

421000653

Unavailable

2

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

3

Loctite 243, 10 ml

293800060

$20.77

4

Cone Washer

250200018

$4.64

5

Shim 1.3 mm

270000762

$9.04

6

Engine Support Ass'y

270001081

$84.47

7

Flat Washer 8 mm, Stainless

234082600

$1.98

8

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

$1.01

9

Loctite 243, 10 ml

293800060

$20.77

10

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

$1.01

11

Loctite 243, 10 ml

293800060

$20.77

12

Flat Washer 8 mm, Stainless

234082600

$1.98

13

Engine Support Ass'y

270001096

$77.32

14

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

15

Loctite 243, 10 ml

293800060

$20.77

16

Cone Washer

250200018

$4.64

17

Shim 1.3 mm

270000762

$9.04

18

Tie-Rap 180 mm

414115200

$0.09

19

THROTTLE CABLE - Call your local BRP dealership

277001121

$63.67

20

TAB LOCK - Call your local BRP dealership

277000279

$6.89

21

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

$39.97

22

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

23

Identification Decal, Motor SC

219902492

Unavailable

24

Upper Air Silencer - Call Your Local BRP Dealership

273000222

$34.58

25

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

26

AIR SILENCER COVER - Call your local BRP dealership

273000266

$36.12

27

Hex. Flange Screw K40 X 16

241141660

$1.25

28

GROMMET - Call your local BRP dealership

293720064

Unavailable

29

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

30

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

31

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

32

INTAKE HOSE - Call your local BRP dealership

273000186

$27.43

33

Tridon Clamp

293650064

$7.80

34

Breather Valve

273000234

$10.63

35

Hose

275500566

Unavailable

36

Tridon Gear Clamp

293650051

$3.61

37

Intake Hose

273000214

Unavailable

38

Tridon Clamp

293650179

$8.81

39

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

$45.35

40

Tridon Clamp

293650179

$8.81
