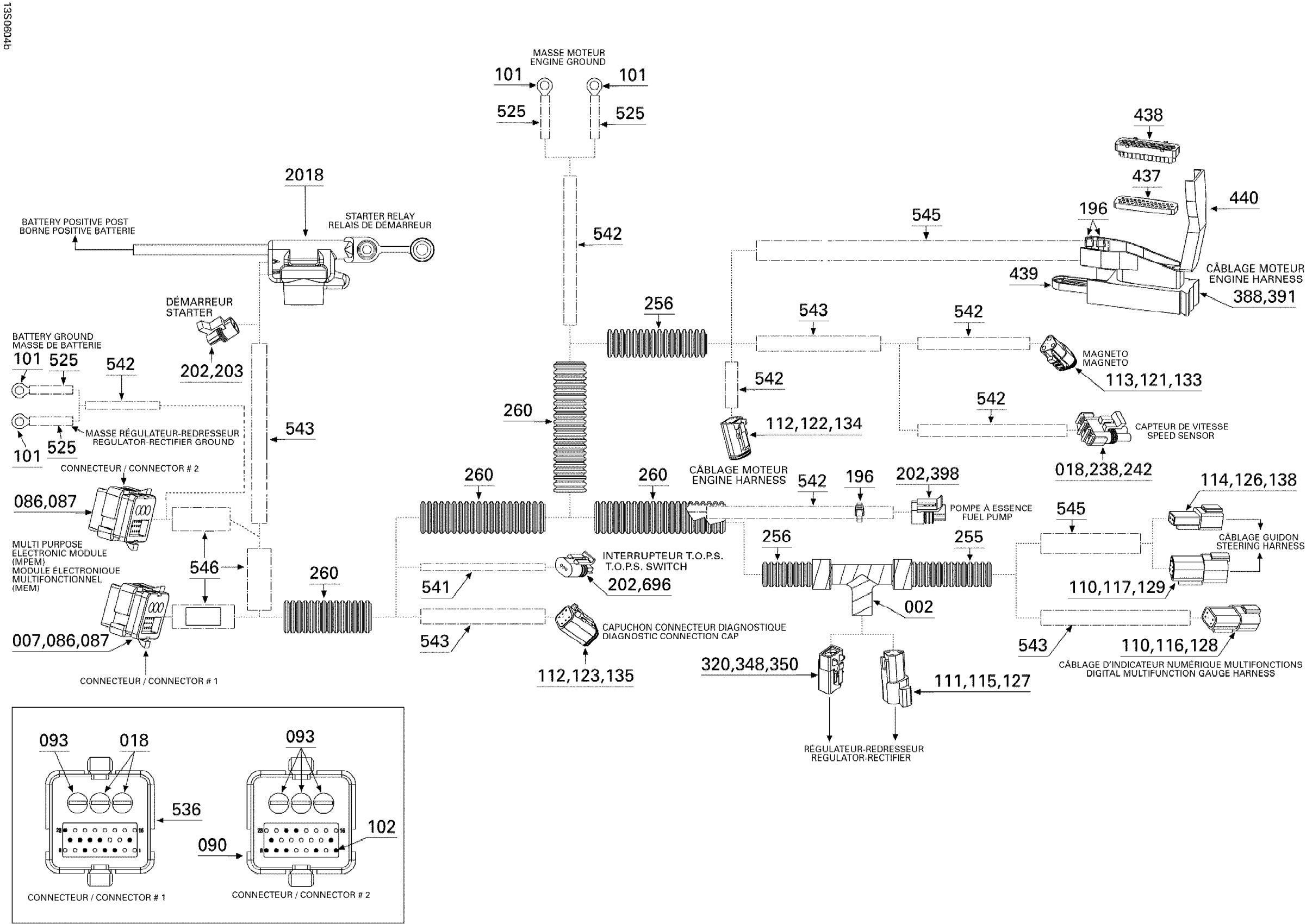

Sea-doo GTX 4-TEC, STD, 2006 10- Electrical Harness Diagram

#

Description
Price

1

MAIN HARNESS - Call your local BRP dealership | Includes 1 to 2018

278002119

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

7

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

18

Seal

278001223

Unavailable

86

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

87

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

90

Male Terminal Housing, 26 Circuits

278001062

Unavailable

93

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

101

Open Barrel Terminal

278001392

$4.79

102

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

110

Male Terminal

278000631

$4.39

111

Male Terminal

515175823

$4.55

112

Female Terminal

278000632

$2.09

113

FEMALE TERMINAL - Call your local BRP dealership

278001276

Unavailable

114

Male Housing, 2 Circuits

409206900

$9.59

115

Male Housing

278002378

$13.99

116

Female Housing, 4 Circuits

278000635

$16.49

117

Male Terminal Housing, 6 Circuits

710001539

$19.99

120

Female Connector, 2 Circuits

409207300

$9.85

121

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

122

Male Connector, 4 Circuits | CE

278000739

$19.49

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

126

Male Lock, 2 Circuits

409207500

$3.19

127

Male Lock, 3 Circuits

409207600

$3.19

128

Female Wedge, 4 Circuits

278000636

$4.39

129

Female Lock, 6 Circuits

278000735

$3.19

133

Female Lock

409207200

$4.39

134

Male Lock, 4 Circuits | CE

278000738

$3.09

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

138

Sealing Cap

293000052

$3.19

196

Tie Wrap 142 mm

293750002

$1.25

202

Female Terminal

278001114

$3.19

203

Male Connector, 2 Circuits

278001113

$16.86

229

Female Terminal

278000223

$3.19

237

Male Connector, 2 Circuits

278000220

$15.49

238

Male Housing, 3 Circuits

278000273

$9.59

242

Wire Seal

278000218

$4.39

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

260

Was 515175319 Tubing 22 mm

219704423

$14.99

320

Open Clamp

515175507

$1.89

348

Female Terminal Housing, 2 Circuits

278001673

$23.49

350

Female Lock, 2 Circuits

278001671

$3.58

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

398

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$9.12

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

536

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

696

Connector, 3 Circuits

278002064

$25.99

2018

BATTERY CABLE - Call your local BRP dealership

278002137

Unavailable
