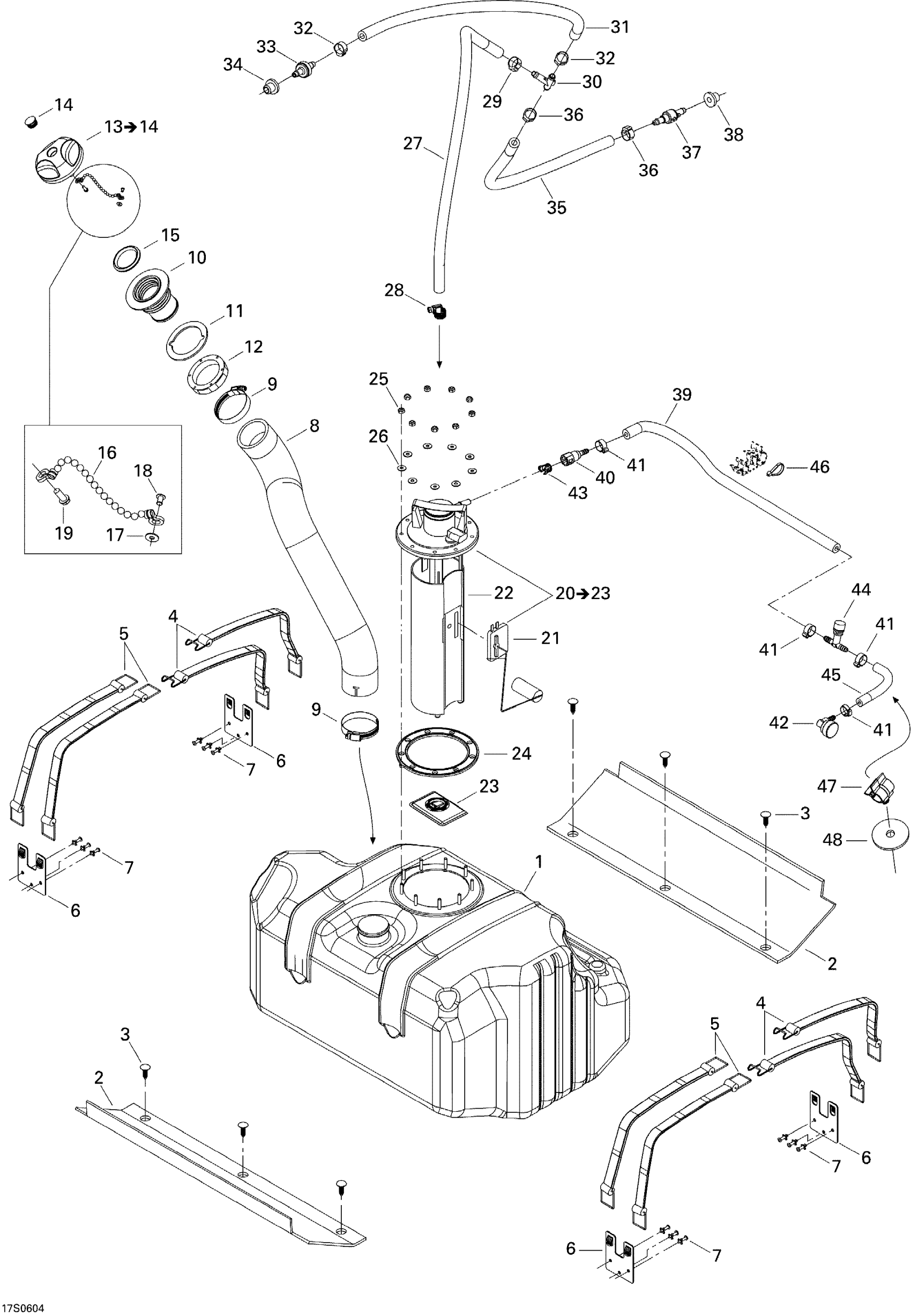

Sea-doo GTX 4-TEC, STD, 2006 Fuel System Diagram

#

Description
Price

1

Fuel Tank

275500675

Unavailable

2

RUBBER PAD - Call your local BRP dealership

293830094

Unavailable

3

Black, Dart

293730011

$0.91

4

Fuel Tank Strap

293850093

$19.37

5

Fuel Tank Strap

293850094

$20.12

6

STRAP CLIP - Call your local BRP dealership

293850066

Unavailable

7

Pop Rivet 3/16"

293150043

$1.85

8

FILLER NECK HOSE - Call your local BRP dealership

275500648

Unavailable

9

Tridon Clamp

293650023

$11.37

10

Filler Neck, Fuel

275500231

$12.40

11

Gasket

293250029

$13.85

12

Filler Neck Nut, Fuel

211100012

$11.51

13

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$26.09

14

Black, Snap Cap

293000034

$8.58

15

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

16

Fuel Cap Chain

275500974

$16.39

17

Flat Washer M3, Stainless

234032600

$0.52

18

Pop Rivet 1/8"

390407900

$1.34

19

Screw K40 X 10

241140060

$1.43

20

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 47 to 49

270600087

Unavailable

21

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Fuel Filter, Bosch

219700368

$36.54

24

Gasket

293250088

$12.57

25

Elastic Stop Nut 5 mm

232551200

$1.40

26

Flat Washer 5 mm, Stainless

234052600

$0.73

27

Was 275500549 Hose 1/4"

219704357

$178.33

28

Tridon Gear Clamp

293650170

$2.00

29

Oetiker Gear Clamp

293650025

$2.82

30

Y-Fitting

293710059

$9.40

31

Was 275500549 Hose 1/4"

219704357

$178.33

32

Oetiker Gear Clamp

293650025

$2.82

33

Check Valve

275500398

$9.84

34

Grommet

293720029

$1.30

35

Was 275500549 Hose 1/4"

219704357

$178.33

36

Oetiker Gear Clamp

293650025

$2.82

37

Check Valve

275500505

$29.07

38

Grommet

293720029

$1.30

39

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

40

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

41

Oetiker Clamp

293650011

$2.82

42

Elbow Fitting 90°

293710105

$12.15

43

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

44

Bleed Valve

293710112

Unavailable

45

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

46

Tie-Rap 180 mm

414115200

$0.10

47

Hose Retainer

275500528

Unavailable

48

RUBBER WASHER - Call your local BRP dealership

250200028

Unavailable
