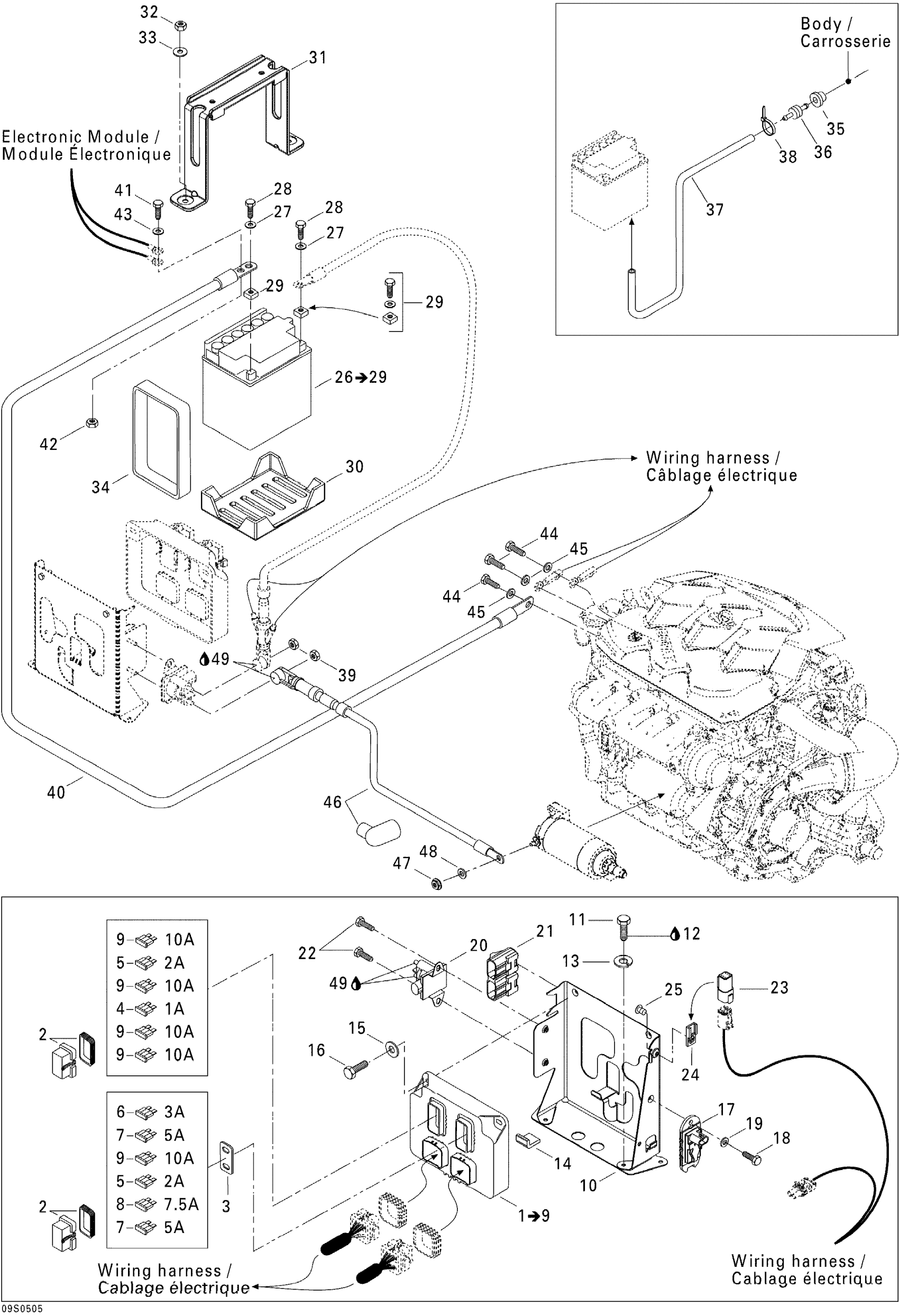

Sea-doo GTX 4-TEC, STD, 2005 Electrical System Diagram

#

Description
Price

1

Multi Purpose Electronic Module, Mpem | Includes 1 to 9, GTI Rental

278002043

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

4

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

5

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

6

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

7

Fuse, 5 Amperes | CE

278000344

$3.39

8

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

9

Fuse, 10 Amperes | North America

278001197

$2.29

10

Module Support

278002005

Unavailable

11

Hex. Screw 10-14 X 7/8”

211000023

$3.69

12

Loctite 271, 10 ml

293800005

$26.99

13

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

14

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

15

Flat Washer M6, Stainless

234062600

$1.49

16

Hex. Screw M6 X 12, Scotch Grip

207361260

$1.49

17

Interrupter T.O.P.S.

278001992

$75.99

18

Hex. Screw M6 X 12, Scotch Grip

207361260

$1.49

19

Stainless Flat Washer M6

234061600

$1.49

20

Starter Relay

278003012

$43.99

21

HOUSING COVER - Call your local BRP dealership

710000342

Unavailable

22

Hex. Screw M6 X 12, Scotch Grip

207361260

$1.49

23

Diagnostic Connector

278002704

$19.49

24

Clip

270000141

$11.99

25

Pop Rivet 3/16"

204000081

$1.49

26

Battery, 30 Amperes

278001882

$171.95

27

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

28

Hex. Screw M6 X 16

207161644

$1.49

29

Battery Bolt Kit

250000282

$7.49

30

LOWER BATTERY PAD - Call your local BRP dealership

278001582

Unavailable

31

BATTERY SUPPORT - Call your local BRP dealership

278001677

Unavailable

32

Hex. Elastic Nut M8

232581600

$1.49

33

Flat Washer 8 mm, Stainless

234082600

$2.49

34

BATTERY STRAP 337 MM - Call your local BRP dealership

278001764

Unavailable

35

Grommet

293720029

$1.69

36

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

37

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

38

Tie Wrap 94 mm | 4X4

293750001

$1.49

39

Hex. Elastic Stop Nut M6

232561600

$1.49

40

Battery Ground Cable Ass'y

278001611

Unavailable

41

Hex. Cap Screw M6 X 12

207161260

$1.49

42

Hex. Elastic Stop Nut M6

232561600

$1.49

43

Stainless Flat Washer M6

234061600

$1.49

44

Hex. Screw M6 X 12, Scotch Grip

207361260

$1.49

45

Stainless Flat Washer M6

234061600

$1.49

46

STARTER CABLE - Call your local BRP dealership

278002265

Unavailable

47

Hex. Elastic Stop Nut M6

232561600

$1.49

48

Stainless Flat Washer M6

234061600

$1.49

49

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
