Description

Price

1

Timing Drive Cover | Includes 1 to 4

420812620

Unavailable

2

Plug Screw M20 X 1.5

420641317

$14.49

3

Oil Seal

420650315

$11.99

4

Rotary Seal

420650371

$44.99

5

Oil Sieve

420956950

$16.86

6

Torx Flange Screw M6 X 85

420641228

$7.59

7

Torx Flange Screw M6 X 35

420641258

$3.49

8

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$24.49

9

Valve Seat Sleeve

420256606

$31.99

10

Piston Valve

420256638

$22.99

11

Compression Spring

420939211

$9.19

12

Plug Screw M20 X 1.5

420641052

$38.99

13

O-Ring

420230890

$5.49

14

Pump Shaft Ass'y

420837472

$56.99

15

Oil Pump Rotor 16 mm

420956675

$37.99

16

Needle Pin

420929070

$1.99

17

Oil Pump Cover

420811591

$38.99

18

Torx Flange Screw M6 X 16

420641048

$2.99

19

Impeller

420922801

$16.99

20

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$309.99

21

Water Pump Housing Gasket | Included in gasket kit

420950840

$15.49

22

Torx Flange Screw M6 X 25

420641238

$3.39

23

Torx Flange Screw M6 X 105

420641338

$7.59

24

Oil Filter

420956741

$14.49

25

Oil Filter Cover

420610329

$33.99

26

O-Ring

420230923

$3.29

26a

O-Ring

420850500

$3.29

27

Oil Filter Screw Kit

295501207

$41.99

28

O-Ring

420950860

$3.99

29

STATOR ASS'Y - Call your local BRP dealership

420889720

Unavailable

30

MAGNETO FLYWHEEL ASS'Y - Call your local BRP dealership

420889710

Unavailable

31

Torx Flange Screw M6 X 35

420641258

$3.49

32

CRANKSHAFT SENSOR - Call your local BRP dealership

420664140

Unavailable

33

Retaining Plate

420926300

$16.37

34

Torx Flange Screw M6 X 16

420641048

$2.99

35

Trigger Wheel

420966851

$18.49

36

Starter Gear, 86 Teeth

420835163

$319.99

37

Hex Screw

295501162

$15.49

38

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$142.99

39

O-Ring

420631612

$4.39

40

Gear Clamp

420851653

$7.59

41

Gear Clamp 46.8-50.0MM

420853023

$7.59

42

Formed Hose

420922822

$66.49

43

Oetiker Clamp

420851687

$11.65

44

Loctite 243, 10 ml

293800060

$21.49

45

Dow Corning 111, 150 g

413707000

$59.99

46

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

47

Loctite 5910, 300 ml

293800081

$57.99

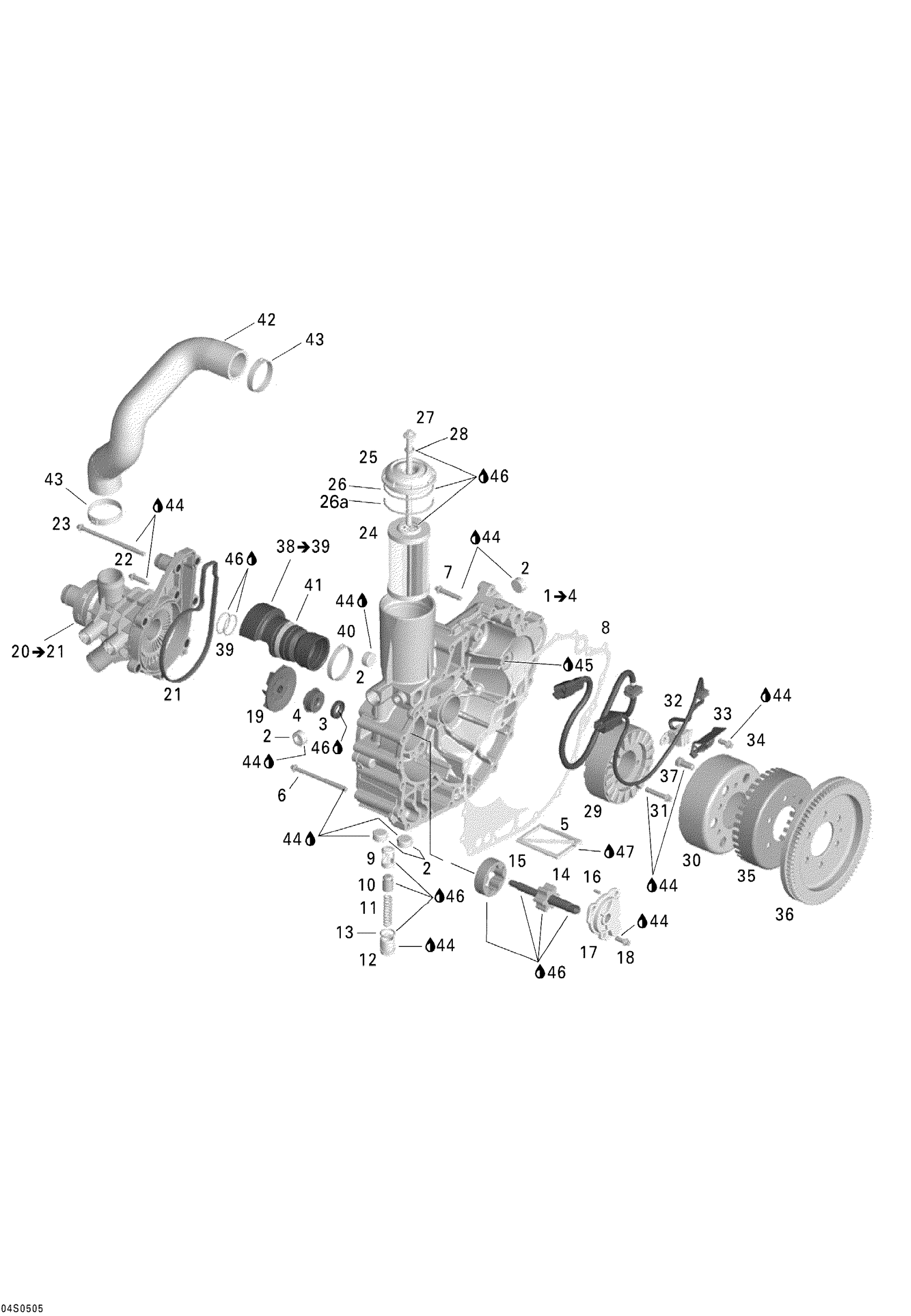

Sea-doo GTX 4-TEC, STD, 2005 PTO Cover And Magneto Diagram

Timing Drive Cover | Includes 1 to 4

Plug Screw M20 X 1.5

Oil Seal

Rotary Seal

Oil Sieve

Torx Flange Screw M6 X 85

Torx Flange Screw M6 X 35

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

Valve Seat Sleeve

Piston Valve

Compression Spring

Plug Screw M20 X 1.5

O-Ring

Pump Shaft Ass'y

Oil Pump Rotor 16 mm

Needle Pin

Oil Pump Cover

Torx Flange Screw M6 X 16

Impeller

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

Water Pump Housing Gasket | Included in gasket kit

Torx Flange Screw M6 X 25

Torx Flange Screw M6 X 105

Oil Filter

Oil Filter Cover

O-Ring

O-Ring

Oil Filter Screw Kit

O-Ring

STATOR ASS'Y - Call your local BRP dealership

MAGNETO FLYWHEEL ASS'Y - Call your local BRP dealership

Torx Flange Screw M6 X 35

CRANKSHAFT SENSOR - Call your local BRP dealership

Retaining Plate

Torx Flange Screw M6 X 16

Trigger Wheel

Starter Gear, 86 Teeth

Hex Screw

Ball Bearing With Bellows Ass'y | Includes 50 to 52

O-Ring

Gear Clamp

Gear Clamp 46.8-50.0MM

Formed Hose

Oetiker Clamp

Loctite 243, 10 ml

Dow Corning 111, 150 g

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

Loctite 5910, 300 ml
