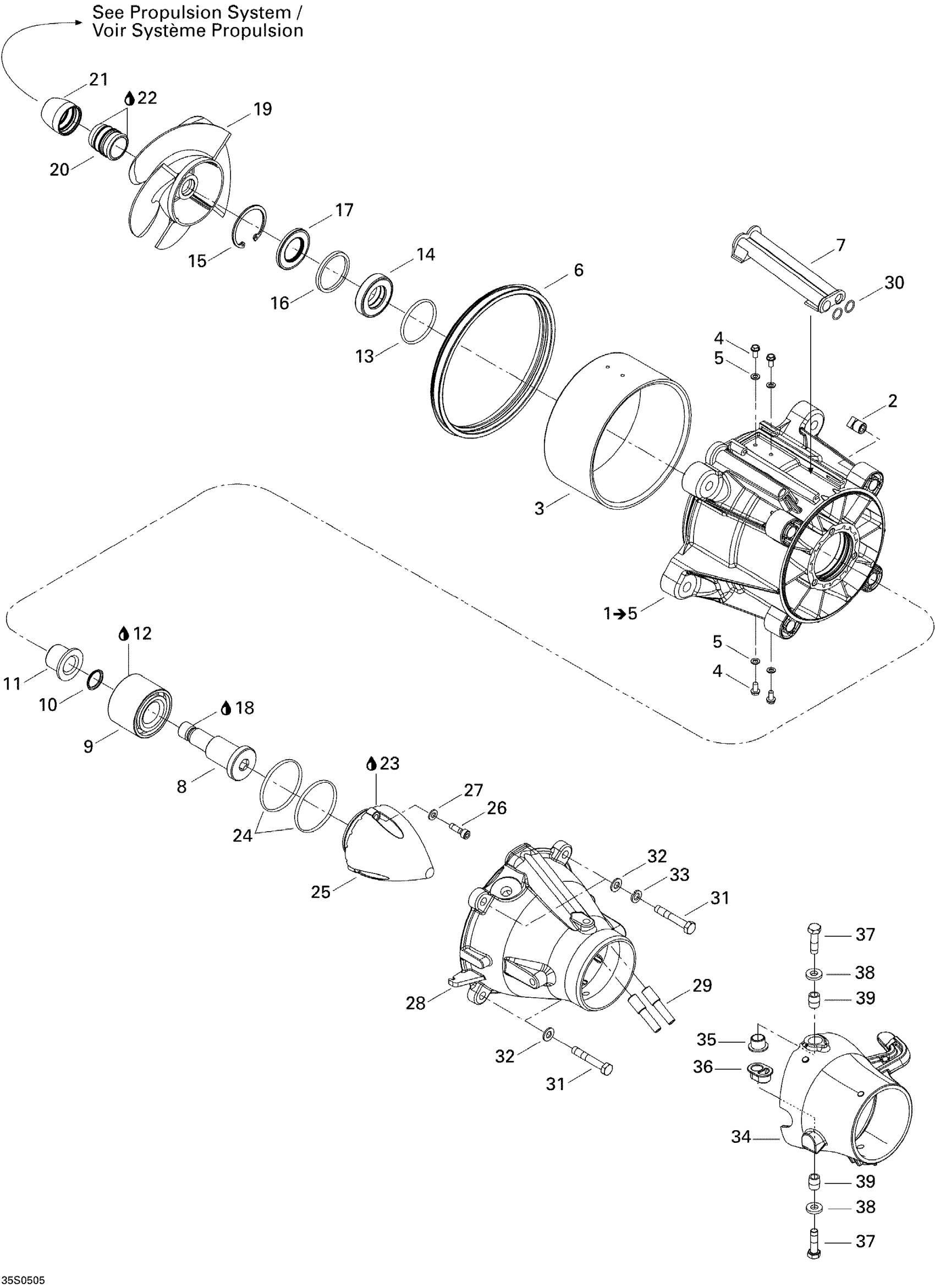

Sea-doo GTX 4-TEC, STD, 2005 05- Pump Diagram
#
Description
Price
1
Impeler Housing Ass'y | Includes 9 to 12
267000056
Unavailable
2
Square Nut M8
211100033
$17.99
3
Wear Ring
267000419
$84.99
4
Hex. Plastite Screw #10 X 3/8"
250000040
$1.05
5
Flat Washer M5, Stainless
234051600
$0.77
6
Neoprene Seal
293200087
$12.63
7
Water Outlet
271000785
$3.80
8
Impeller Shaft
267000054
$116.49
9
Angled Bearing This part replaces 267000030.
267000900
$80.99
10
O-Ring
505070315
$2.85
11
Shaft Sleeve
267000318
$134.99
12
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
13
O-Ring
293300090
$7.20
14
Seal
271002071
$33.99
15
Circlip
293370038
$8.79
16
Spacer
271001393
$8.59
17
Oil Seal
293200089
$19.99
18
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
19
Impeller Assy This part replaces 267000115.
267000673
$391.99
20
IMPELLER BOOT - Call your local BRP dealership
271001152
Unavailable
21
IMPELLER RING - Call your local BRP dealership
271001153
Unavailable
22
Synthetic Grease, 400 G
293550010
Unavailable
23
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
24
O-Ring
293300086
$3.59
25
Impeller Cover
267000262
$21.99
26
Socket Head Screw M6 X 20, Scotch Grip
205562060
$0.76
27
Stainless Flat Washer M6
234061600
$0.33
28
Venturi, Black
267000068
Unavailable
29
Siphon Tube
271001133
$10.99
30
O-Ring
293300013
$8.18
31
Hex. Screw M8 X 50, Scotch Grip
207285060
$2.11
32
Stainless, Flat Washer 8 mm
234081600
$0.55
33
Lock Washer 8 mm, Stainless
234181601
$0.55
34
Steering Nozzle, Black
271001469
Unavailable
35
Venturi Bushing
293900001
$7.62
36
Plastic Bushing
293900010
$9.59
37
Hex. Screw M8 X 30, Scotch Grip
207383060
$1.90
38
Flat Washer M8.5 x 18
293050001
$3.07
39
Sleeve
271001816
$14.99
