Description

Price

1

Pump Support

271001545

$132.49

2

Square Stud

250300022

$20.99

3

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

4

Shim 0.3 mm

272000053

$11.49

5

Flat Washer 10 mm, Stainless

234002600

$2.22

6

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

7

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

8

Flat Washer 10 mm, Stainless

234002600

$2.22

9

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

10

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

11

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

12

Watertight Seal

293250084

$7.49

13

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

14

Reducer This part replaces 291001887.

291004649

$17.49

15

Riding Plate | Includes 11 to 16

271001491

Unavailable

16

STRAIGHT PLASTIC FITTING - Call your local BRP dealership

293710087

Unavailable

17

Was 293800041 Loctite Primer 7649

219704458

$39.99

18

Socket Drain Plug M6 X 12

250500005

$16.49

19

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

20

Was 293800013 Loctite 56765

219704454

$65.99

21

Hex. Screw M8 X 40, Scotch Grip

250000230

$2.53

22

Stainless, Flat Washer 8 mm

234081600

$0.55

23

Silicone Sealant 51388, 300 ml

296000309

$36.99

24

Gasket, Neoprene 2000Mm Long

219704476

$15.36

25

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

26

Stainless Flat Washer M6

234061600

$0.33

27

Anode Zinc

271001813

$18.99

28

PUMP GRATE, BLACK - Call your local BRP dealership

271001459

Unavailable

29

Hex. Screw M6 X 16

207161660

$1.59

30

Stainless Flat Washer M6

234061600

$0.33

31

Loctite 271, 10 ml

293800005

$26.99

32

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

33

Stainless, Flat Washer 8 mm

234081600

$0.55

34

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

35

Silicone Sealant 51388, 300 ml

296000309

$36.99

36

Shaft Ass'y | Includes 36 to 39

271001521

Unavailable

37

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

38

C-Clip

271001575

$6.11

39

O-Ring

293300044

$1.05

40

Drive Shaft Plug

272000173

$8.68

41

Synthetic Grease, 400 G

293550010

Unavailable

42

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

43

Bellows

272000183

$28.99

44

Norma Clamp

293650077

$7.41

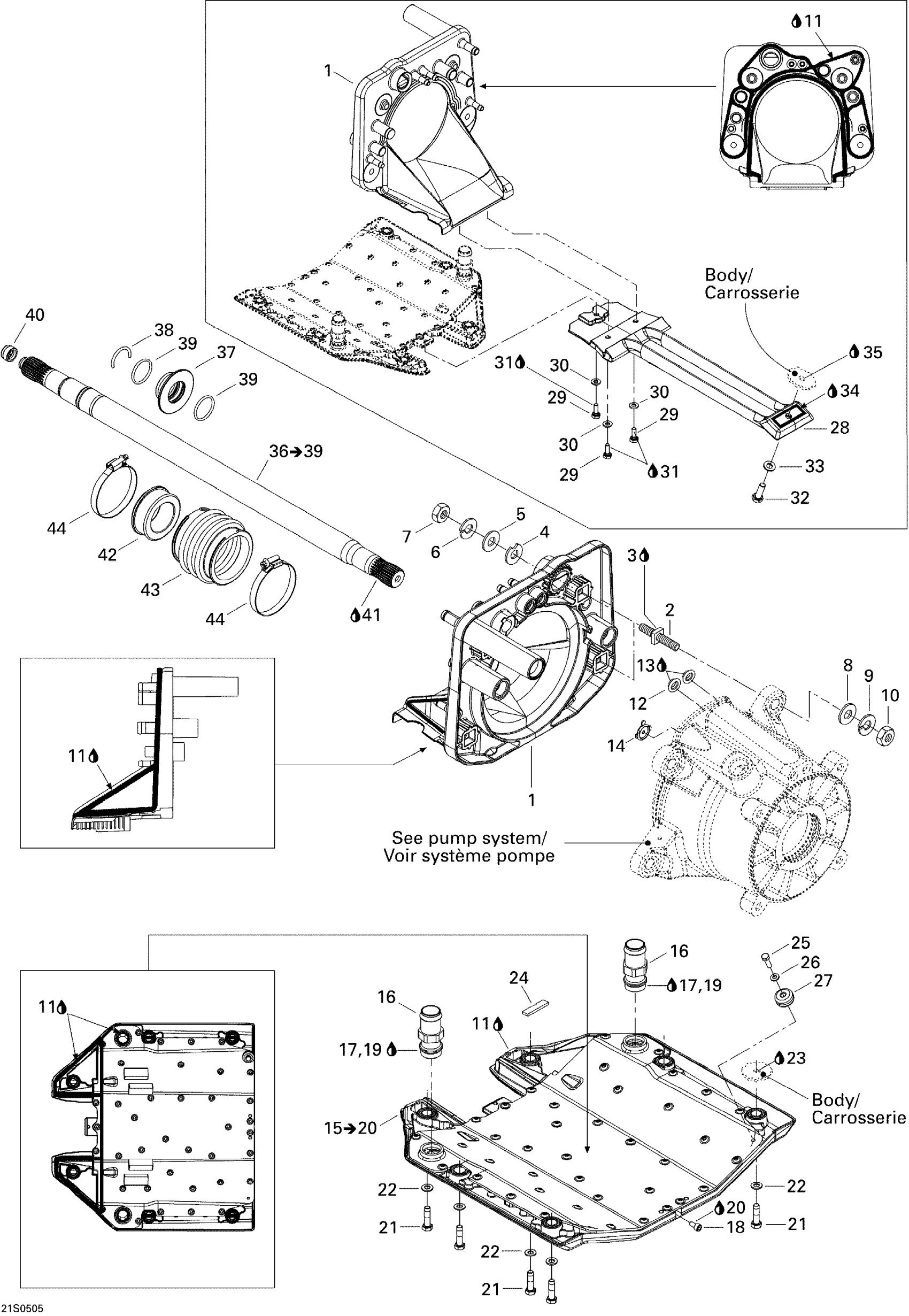

Sea-doo GTX 4-TEC, STD, 2005 Propulsion Diagram

Pump Support

Square Stud

Était/Was 293800038 Loctite 518, 50 ml

Shim 0.3 mm

Flat Washer 10 mm, Stainless

Helicoidal Lock Washer M10 | XT Models

HEX. NUT M10 - Call your local BRP dealership

Flat Washer 10 mm, Stainless

Helicoidal Lock Washer M10 | XT Models

HEX. NUT M10 - Call your local BRP dealership

Was 293800066 Sealant Loctite 5900, 300 ml

Watertight Seal

Était/Was 293800038 Loctite 518, 50 ml

Reducer This part replaces 291001887.

Riding Plate | Includes 11 to 16

STRAIGHT PLASTIC FITTING - Call your local BRP dealership

Was 293800041 Loctite Primer 7649

Socket Drain Plug M6 X 12

Était Was 293800050 Loctite 577, 250 ml

Was 293800013 Loctite 56765

Hex. Screw M8 X 40, Scotch Grip

Stainless, Flat Washer 8 mm

Silicone Sealant 51388, 300 ml

Gasket, Neoprene 2000Mm Long

Hex. Screw M6 X 20, Scotch Grip

Stainless Flat Washer M6

Anode Zinc

PUMP GRATE, BLACK - Call your local BRP dealership

Hex. Screw M6 X 16

Stainless Flat Washer M6

Loctite 271, 10 ml

Hex. Screw M8 X 30, Scotch Grip

Stainless, Flat Washer 8 mm

Was 293800066 Sealant Loctite 5900, 300 ml

Silicone Sealant 51388, 300 ml

Shaft Ass'y | Includes 36 to 39

Carbon Ring Kit This part replaces 272000177.

C-Clip

O-Ring

Drive Shaft Plug

Synthetic Grease, 400 G

Carbon Ring Kit This part replaces 272000177.

Bellows

Norma Clamp
