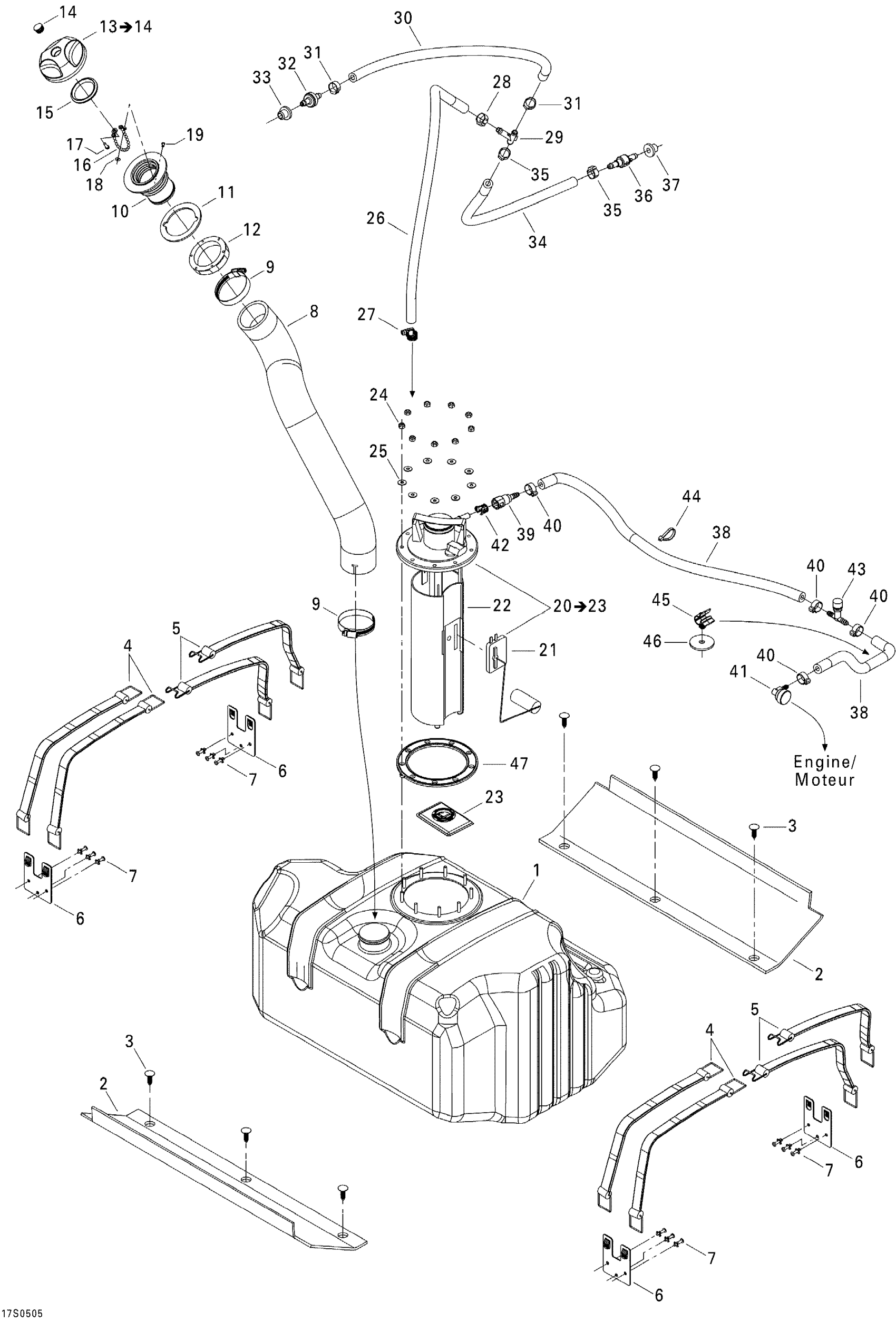

Sea-doo GTX 4-TEC, STD, 2005 02- Fuel System Diagram

#

Description
Price

1

Fuel Tank

275500480

Unavailable

2

RUBBER PAD - Call your local BRP dealership

293830094

Unavailable

3

Black, Dart

293730006

$0.99

4

Fuel Tank Strap

293850093

$21.99

5

Fuel Tank Strap

293850094

$22.49

6

STRAP CLIP - Call your local BRP dealership

293850066

Unavailable

7

Avdel Rivet 3/16"

293150037

$0.56

8

FILLER NECK HOSE - Call your local BRP dealership

275500648

Unavailable

9

Tridon Clamp

293650023

$13.49

10

Filler Neck, Fuel

275500231

$14.75

11

Gasket

293250029

$14.82

12

Filler Neck Nut, Fuel

211100012

$14.22

13

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

14

Black, Snap Cap

293000034

$9.39

15

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

16

Fuel Cap Chain

275500974

$19.99

17

Screw K40 X 10

241140060

$1.48

18

Flat Washer M3, Stainless

234032600

$0.55

19

Pop Rivet 1/8"

390407900

$1.49

20

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 47 to 49

270600087

Unavailable

21

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Fuel Filter, Bosch

219700368

$39.99

24

Elastic Stop Nut 5 mm

232551200

$1.47

25

Flat Washer 5 mm, Stainless

234052400

$2.85

26

Was 275500549 Hose 1/4"

219704357

$194.99

27

Tridon Gear Clamp

293650170

$1.99

28

Oetiker Gear Clamp

293650025

$3.09

29

Y-Fitting

293710059

$9.69

30

Was 275500549 Hose 1/4"

219704357

$194.99

31

Oetiker Gear Clamp

293650025

$3.09

32

Check Valve

275500398

$10.99

33

Grommet

293720029

$1.59

34

Was 275500549 Hose 1/4"

219704357

$194.99

35

Oetiker Gear Clamp

293650025

$3.09

36

Check Valve

275500505

$31.99

37

Grommet

293720029

$1.59

38

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

39

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

40

Oetiker Clamp

293650011

$3.09

41

Elbow Fitting 90°

293710105

$14.22

42

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

43

Bleed Valve

293710104

Unavailable

44

Tie-Rap 180 mm

414115200

$0.11

45

Hose Retainer

275500528

Unavailable

46

RUBBER WASHER - Call your local BRP dealership

250200028

Unavailable

47

Gasket

293250088

$14.99
