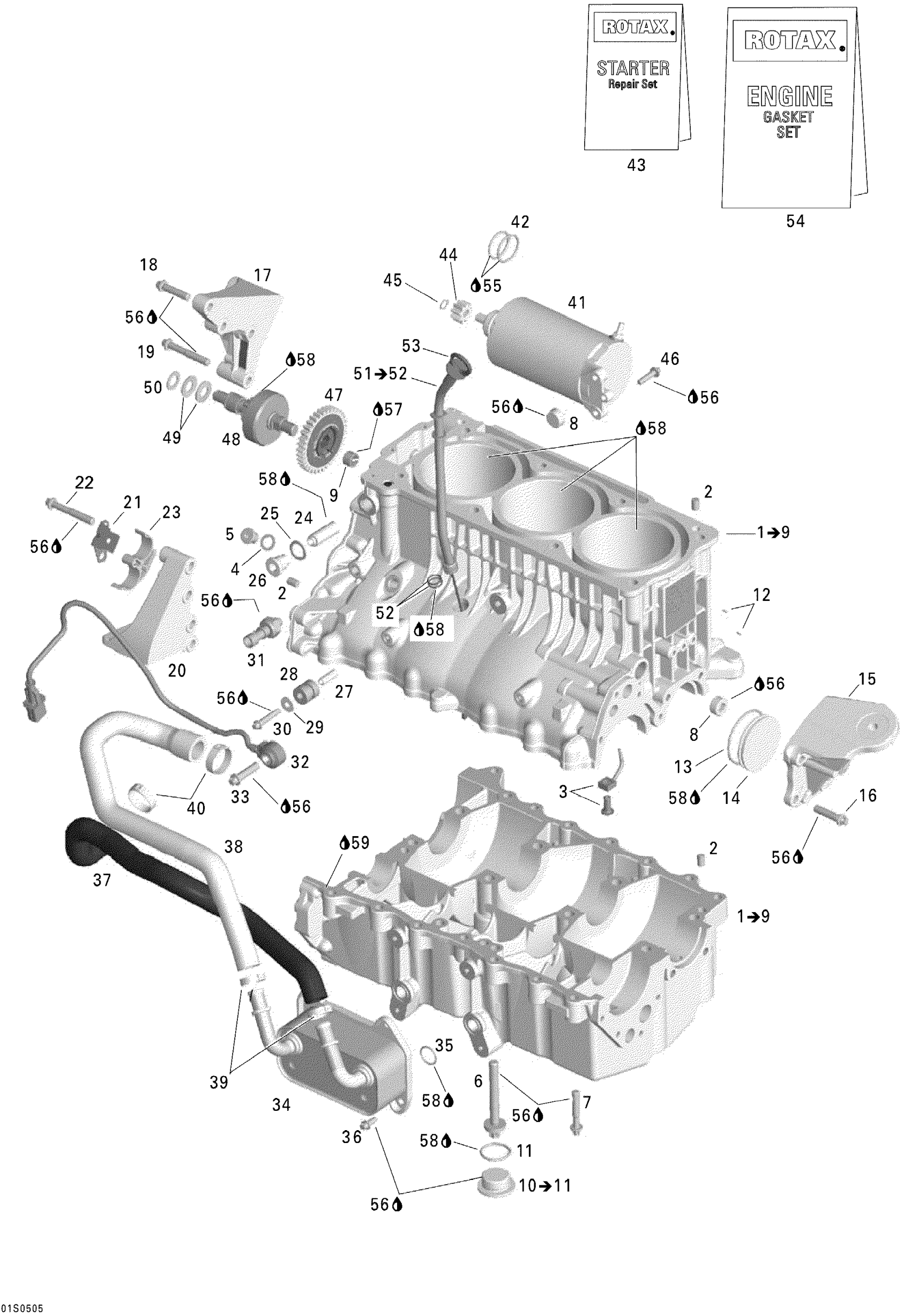

Sea-doo GTX 4-TEC, STD, 2005 Engine Block Diagram

#

Description
Price

1

Engine Block Ass'y 1503, Elite | Includes 1 to 9

420888814

Unavailable

2

Center Pin 8 X 12

420632010

$4.09

3

Oil Spray Nozzle This part replaces 420956778.

420956827

$28.99

4

Aluminum Sealing Ring

420250016

$5.49

5

Plug Screw M12

420841923

$15.99

6

Torx Flange Screw M10 X 82

420641120

$7.59

7

Hex. Flange Screw M8 X 45

420641208

$7.69

8

Plug Screw M20 X 1.5

420641317

$14.49

9

Needle Bushing

420232482

$20.99

10

Plug Screw M30 X 1.5

420641171

$21.99

11

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$10.99

12

Grooved Pin

420249073

$1.99

13

O-Ring

420430405

$13.18

14

Plug Cover

420660110

$7.59

15

FRONT ENGINE BRACKET - Call your local BRP dealership This part replaces 420811791.

420811792

Unavailable

16

Torx Flange Screw M8 X 35

420641188

$7.59

17

Engine Bracket PTO, Exhaust

420811788

$75.99

18

Torx Flange Screw M8 X 35

420641188

$7.59

19

Torx Flange Screw M8 X 55

420641213

$7.59

20

Engine Bracket PTO, Exhaust

420811784

$63.99

21

Retaining Plate

420851740

$20.99

22

Torx Flange Screw M8 X 55

420641213

$7.59

23

Hose Bracket

420660290

$16.37

24

Chain Tensioner

415129408

$64.99

25

Gasket Ring

420430624

$1.89

26

Chain Tensioner With Screw | Includes no. 8-11

420236259

$72.99

27

SPACER - Call your local BRP dealership

420847970

Unavailable

28

Rubber Bracket

420660090

$4.19

29

Flat Washer M6

420827968

$1.99

30

Torx Flange Screw M6 X 35

420641258

$3.49

31

Inter.Press.Hui*Oil Pressure Switch This part replaces 420856530.

420856538

$59.99

32

Noise Sensor

270000484

$84.99

33

Torx Flange Screw M8 X 35

420641188

$7.59

34

Oil Radiator

420888850

Unavailable

35

O-Ring

420250057

$4.29

36

Torx Flange Screw M6 X 16

420641048

$2.99

37

FORMED HOSE - Call your local BRP dealership

420922796

Unavailable

38

FORMED HOSE - Call your local BRP dealership

420922791

Unavailable

39

Oeticker Gear Clamp, 25.6-706R

509000442

$5.29

40

Gear Clamp

420851673

$5.79

41

Electric Starter Ass'y | Includes no. 20-21

420888995

$265.99

42

O-Ring

420631310

$4.49

43

CARBON BRUSH SET - Call your local BRP dealership

420664710

Unavailable

44

Starter Gear, 9 Teeth

420834522

$76.99

45

Retaining Ring

420845601

$4.69

46

Torx Flange Screw M6 X 25

420641238

$3.39

47

Bendix Starter This part replaces 420889872.

420890637

$264.99

48

Bendix Starter This part replaces 420889872.

420890637

$264.99

49

Spring Washer

420238300

$7.59

50

Thrust Washer

420827261

$7.69

51

OIL LEVEL TUBE - Call your local BRP dealership | Includes 51 to 52

420956943

Unavailable

52

O-Ring

420950810

$15.49

53

Oil Level Gauge

420956932

$24.60

54

Engine Gasket Set

420889772

$399.99

55

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99

56

Loctite 243, 10 ml

293800060

$21.49

57

Dow Corning 111, 150 g

413707000

$59.99

58

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

59

Loctite 5910, 300 ml

293800081

$57.99

60

Engine Long Block, 1503 NA | Not Shown

415150315

Unavailable
