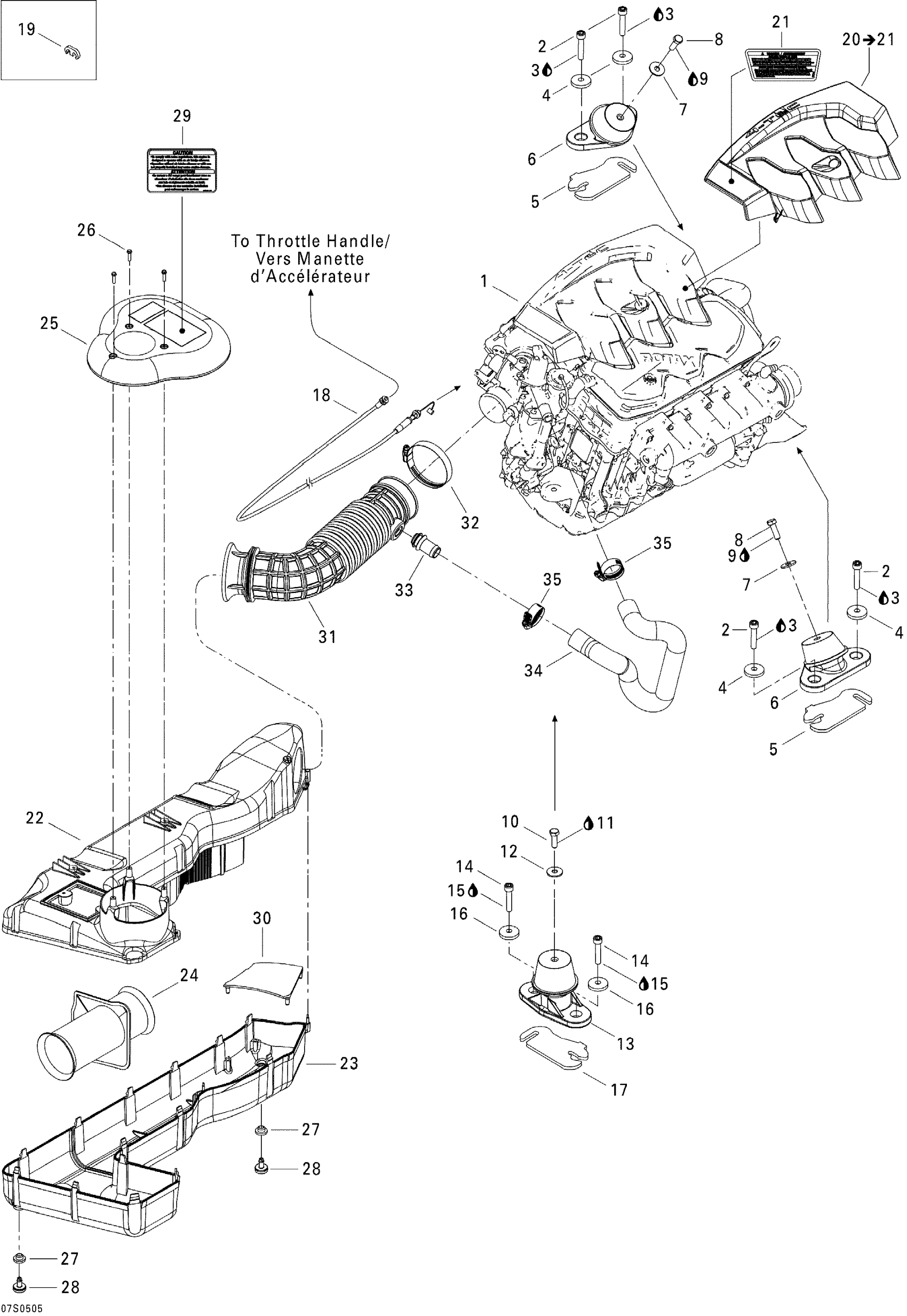

Sea-doo GTX 4-TEC, STD, 2005 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Rotax Engine 4 Strokes «1503 NA»

270000645

Unavailable

1

REBUILD-LONG BLOCK 1503NA - Call your local BRP dealership | Not Shown

421000652

Unavailable

2

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

3

Loctite 243, 10 ml

293800060

$21.49

4

Cone Washer

250200018

$5.61

5

Shim 1.3 mm

270000762

$12.99

6

Engine Support Ass'y

270001081

$109.99

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

9

Loctite 243, 10 ml

293800060

$21.49

10

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

11

Loctite 243, 10 ml

293800060

$21.49

12

Flat Washer 8 mm, Stainless

234082600

$2.43

13

Engine Support Ass'y

270001096

$97.99

14

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

15

Loctite 243, 10 ml

293800060

$21.49

16

Cone Washer

250200018

$5.61

17

Shim 1.3 mm

270000762

$12.99

18

THROTTLE CABLE - Call your local BRP dealership

277001170

Unavailable

19

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

20

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

21

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

22

UPPER AIR SILENCER - Call your local BRP dealership

273000224

Unavailable

23

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

24

Connector Tube

273000191

Unavailable

25

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

26

Hex. Flange Screw K40 X 16

241141660

$1.48

27

GROMMET - Call your local BRP dealership

293720064

Unavailable

28

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

29

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

30

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

31

INTAKE HOSE - Call your local BRP dealership

273000187

Unavailable

32

Tridon Clamp

293650064

$8.29

33

Breather Valve

273000234

$14.49

34

FORMED HOSE - Call your local BRP dealership

275500497

Unavailable

35

Tridon Gear Clamp

293650051

$4.19
