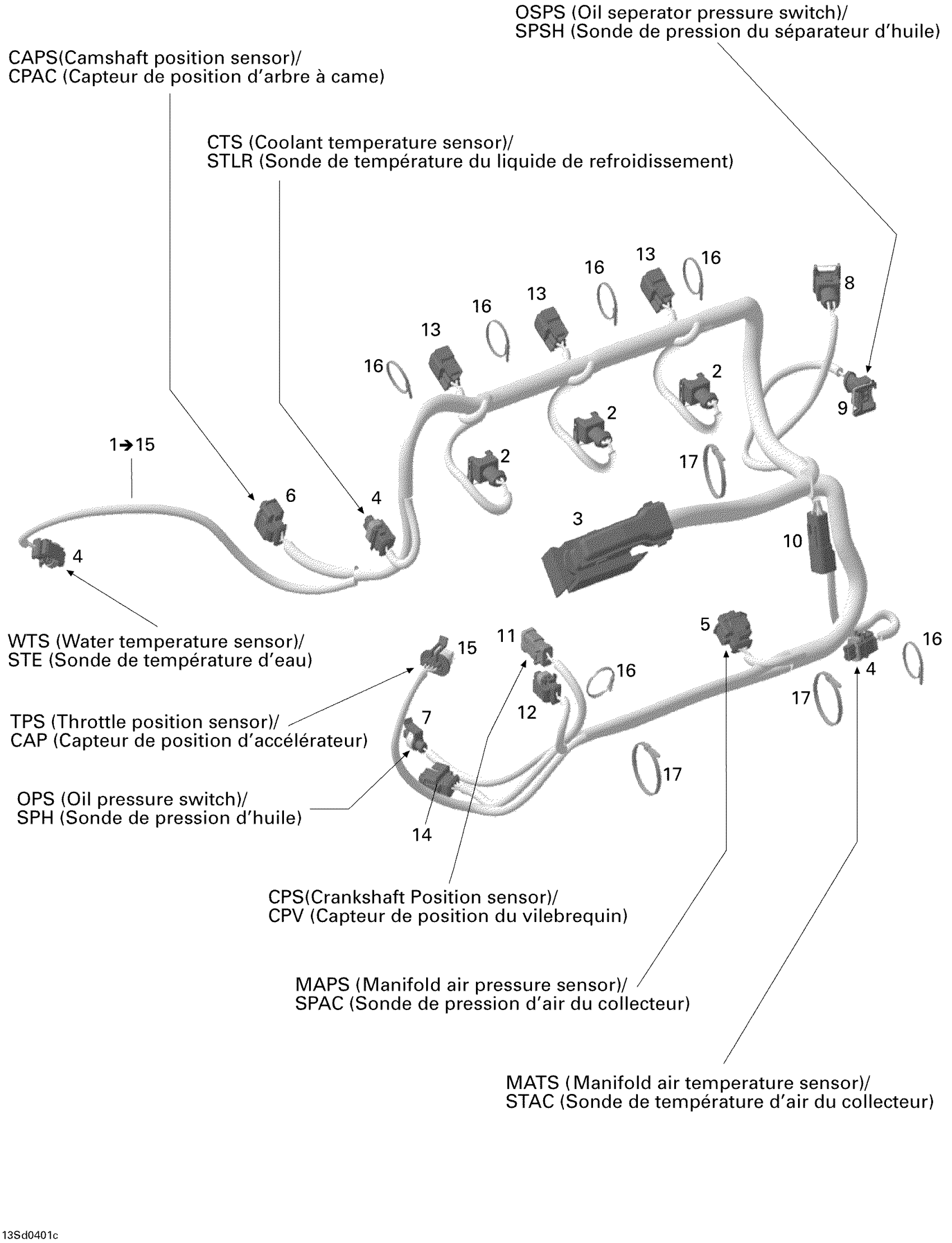

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Engine Harness Diagram

Wiring Harness Ass’Y | INCLUDES 1 TO 15

420664054

Unavailable

Male Connector, 2 Circuits

278001003

$46.49

ECM Connector

420664450

$27.49

Male Housing, 2 Circuits

278001005

$19.49

Housing Connector, 3 Circuits

278001829

$21.99

Housing Connector, 3 Circuits

278001830

$35.99

Male Housing, 1 Circuit

278001012

$16.86

Female Terminal Housing, 2 Circuits

415128500

$7.62

Female Terminal Housing, 2 Circuits

415128500

$7.62

Female Housing, 4 Circuits

278000635

$16.49

Connector, Magneto

278001831

Unavailable

Male Housing, 2 Circuits

278001005

$19.49

CONNECTOR 3 POSITIONS - Call your local BRP dealership

420964100

Unavailable

Connector, Idle Bypass Valve

278001833

Unavailable

Male Housing, 3 Circuits

278000997

$19.49

Tie Rap

420866714

$1.90

Tie-Rap

420866716

$1.90
