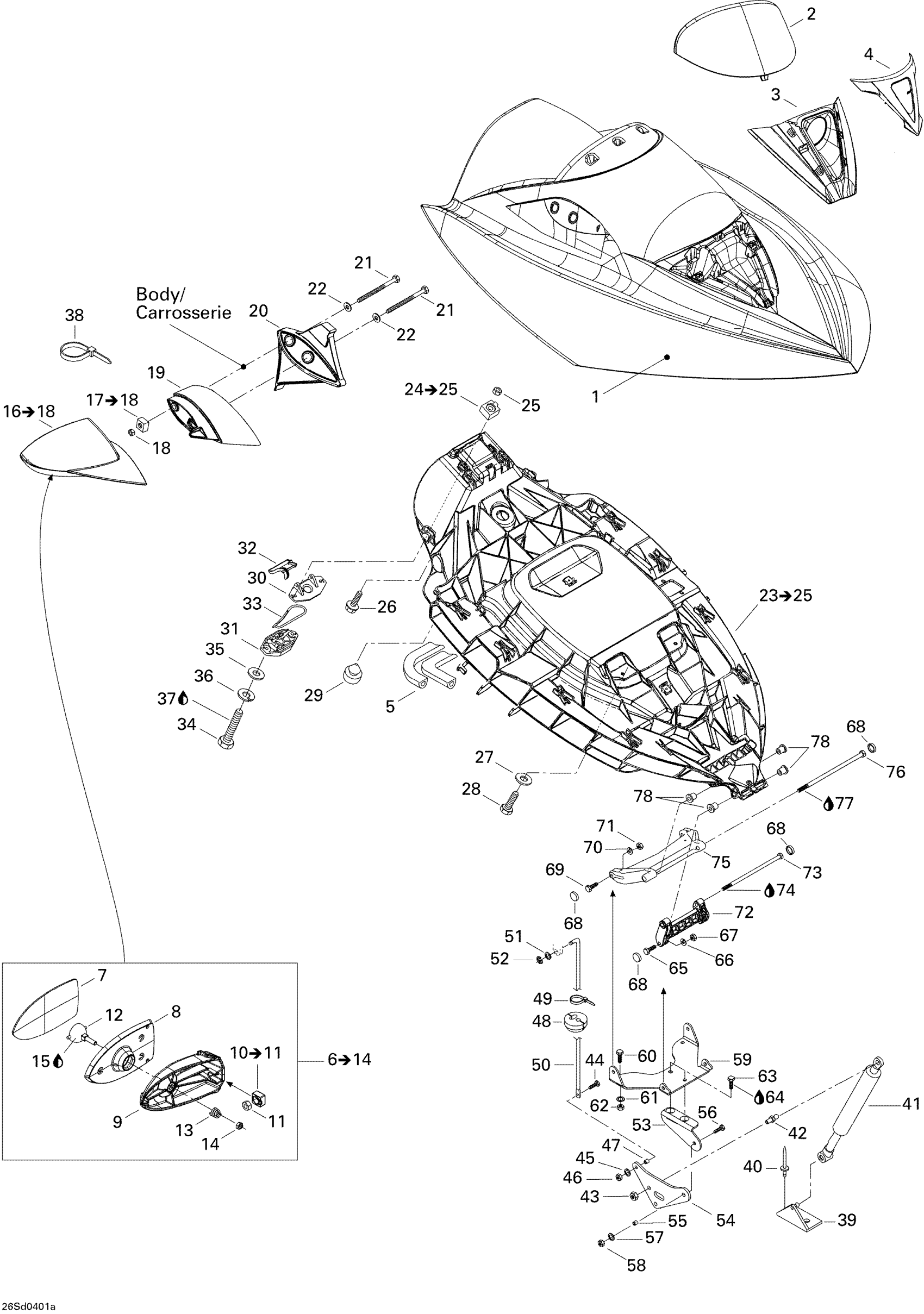

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Front Cover Diagram

#

Description
Price

1

Upper Luggage Cover, Black | Includes 1 to 3

269501265

Unavailable

2

Deflector

269501189

Unavailable

3

Lower Grille

269500994

Unavailable

4

Upper Grille

269500942

Unavailable

5

Was 293200017 Neoprene Seal

219704365

$149.99

6

RH Mirror Ass’Y | Includes Items 19 to 28 / LE

269500685

Unavailable

LH Mirror Ass'y | Includes Items 19 to 28 / LE

269500688

Unavailable

7

RH Mirror

269500687

Unavailable

LH MIRROR - Call your local BRP dealership

269500788

Unavailable

8

Frame Mirror

269500697

Unavailable

9

Housing Support | WAKE

269500807

Unavailable

10

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

11

Hex. Elastic Nut M8

232581600

$1.48

12

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

13

Mirror Spring

269500453

$10.49

14

Hex. Elastic Stop Nut M6

232561600

$1.15

15

Synthetic Grease, 400 G

293550010

Unavailable

16

Mirror Shell Ass'y, Black | Includes 18 to 20

269501072

Unavailable

17

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

18

Hex. Elastic Nut M8

232581600

$1.48

19

RH Mirror Support, Black

269501076

Unavailable

LH Mirror Support, Black

269501078

Unavailable

20

RH Spacer

269500950

Unavailable

LH Spacer

269500951

Unavailable

21

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

22

Flat Washer 8 mm, Stainless

234082600

$2.43

23

Lower Storage Cover Ass'y | Includes 25 to 27

269500952

Unavailable

24

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

25

Hex. Nut M6

232061600

$1.15

26

Hex. Flange Screw K40 X 13

241141360

$0.67

27

Flat Washer M6, Stainless

234062600

$0.77

28

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

29

Rubber Bumper

293830005

$8.09

30

Latch Ass'y

269700109

$24.99

31

Latch Ass'y

269700109

$24.99

32

Latch Ass'y

269700109

$24.99

33

Latch Spring

269700017

$9.19

34

Hex. Screw M6 X 30

207063060

$1.89

35

Stainless Flat Washer M6

234061600

$0.33

36

Lock Washer Helical M6

234161601

$1.15

37

Loctite 243, 10 ml

293800060

$21.49

38

Tie Wrap 368 mm

293750008

$1.04

39

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

40

Avdel Rivet 3/16"

293150037

$0.56

41

Gas Shock Ass'y

269501625

$77.99

42

Ball Head Stud

250300016

$14.81

43

Hex. Elastic Nut M8

232581600

$1.48

44

Hex. Screw M4 X 16 | Europe

207141660

$1.47

45

Flat Washer 4 mm, Stainless

234041600

$1.15

46

Elastic Stop Nut M4

232541600

$1.15

47

SPACER - Call your local BRP dealership

269501130

Unavailable

48

CABLE GROMMET - Call your local BRP dealership | North America

293720070

Unavailable

49

Tie-Rap 180 mm

414115200

$0.11

50

ROD - Call your local BRP dealership

269500842

Unavailable

51

Stainless Flat Washer M6

234061600

$0.33

52

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

53

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

54

LEVER - Call your local BRP dealership

269501576

Unavailable

55

SPACER - Call your local BRP dealership

269501172

Unavailable

56

Hex. Forming Screw M6 X 20

207162060

$1.29

57

Flat Washer M6, Stainless

234062600

$0.77

58

Hex. Elastic Stop Nut M6

232561600

$1.15

59

Pivot Support

269500934

Unavailable

60

Hex. Forming Screw M6 X 20

207162060

$1.29

61

Flat Washer M6, Stainless

234062600

$0.77

62

Hex. Elastic Stop Nut M6

232561600

$1.15

63

Hex. Forming Screw M6 X 20

207162060

$1.29

64

Loctite 243, 10 ml

293800060

$21.49

65

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

66

Stainless Flat Washer M6

234061600

$0.33

67

Hex. Elastic Stop Nut M6

232561600

$1.15

68

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

69

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

70

Stainless Flat Washer M6

234061600

$0.33

71

Hex. Elastic Stop Nut M6

232561600

$1.15

72

FRONT ARM - Call your local BRP dealership

269501482

$19.99

73

Hex. Screw M6 X 100

230060060

$7.41

74

Loctite 243, 10 ml

293800060

$21.49

75

REAR ARM - Call your local BRP dealership

269501481

Unavailable

76

Hex. Screw M6 X 150

230065060

$10.16

77

Loctite 271, 10 ml

293800005

$26.99

78

Sleeve

269500706

$4.65
