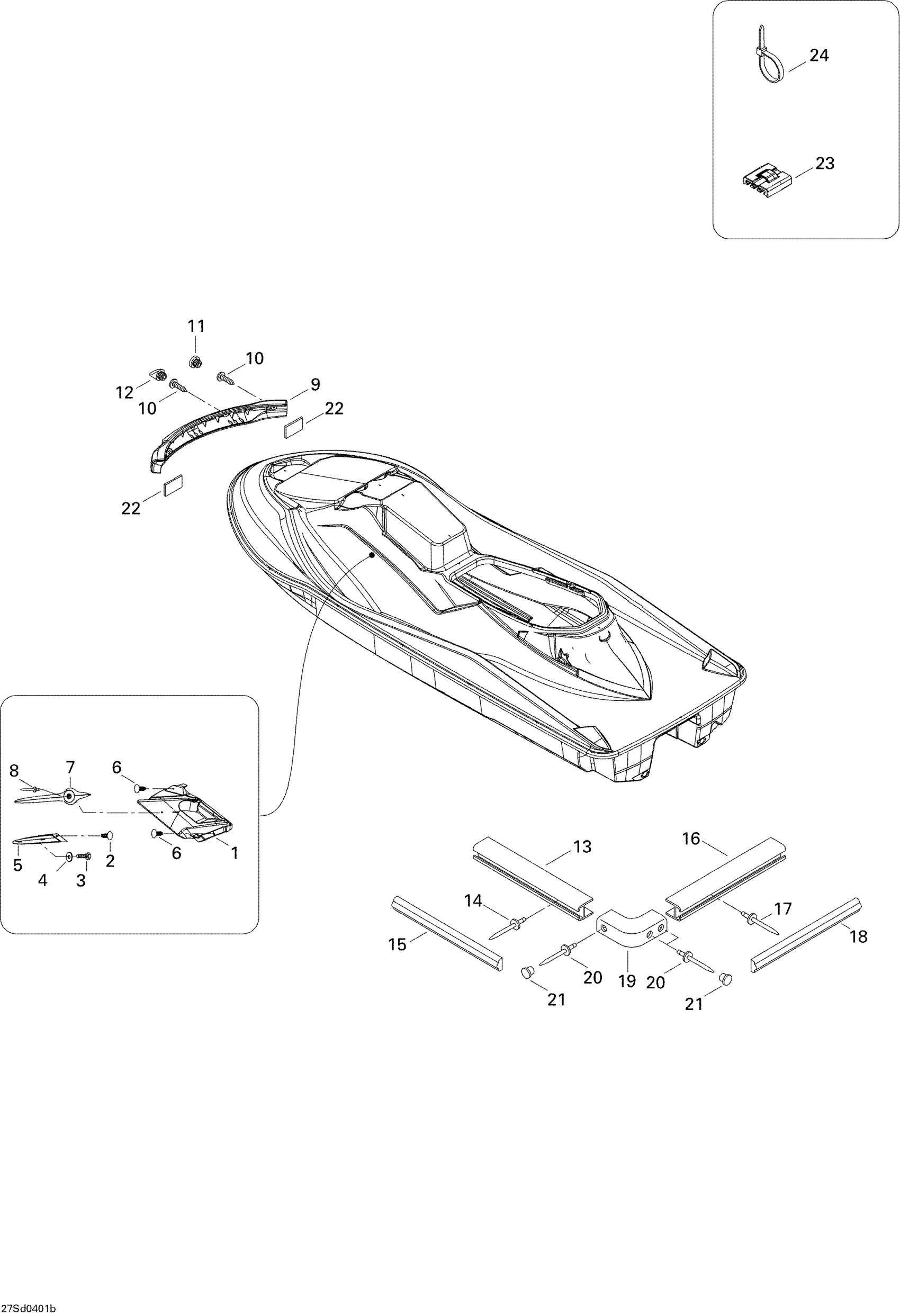

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Body 2 Diagram

#

Description
Price

1

RH GRILL, BLACK - Call your local BRP dealership | WAKE

269500931

Unavailable

LH GRILL, BLACK - Call your local BRP dealership | WAKE

269500932

Unavailable

2

Black Dart

293730010

$0.99

3

Hex. Flange Screw K40 X 16

241141660

$1.48

4

Flat Washer 5 mm, Stainless

234052600

$0.77

5

RH INSERT - Call your local BRP dealership | WAKE

293450223

Unavailable

LH INSERT - Call your local BRP dealership | WAKE

293450224

Unavailable

6

Black, Dart

293730006

$0.99

7

FINITION PLATE - Call your local BRP dealership

269500716

Unavailable

8

Pop Rivet 3/16"

293150008

$0.50

9

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

10

Phillips Screw 10-14 X 7/8”

211000037

Unavailable

11

Bumper Plug, Black

291001519

$5.49

12

Bumper Plug, Black

291001040

$7.39

13

Black, Side Bumper

204050270

$179.99

14

Pop Rivet 3/16"

293150005

$0.52

15

SIDE BUMPER TRIM - Call your local BRP dealership

291001840

Unavailable

16

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

17

Pop Rivet 3/16"

293150005

$0.52

18

SIDE BUMPER TRIM - Call your local BRP dealership

291001840

Unavailable

19

Bumper Corner

291002244

$48.99

20

Pop Rivet 3/16"

293150013

$1.37

21

Bumper Plug, Black

291000339

$2.99

22

Rubber Pad

709000401

$9.79

23

Tie-Rap Mount

293750025

$1.25

24

Tie-Rap 180 mm

414115200

$0.11
