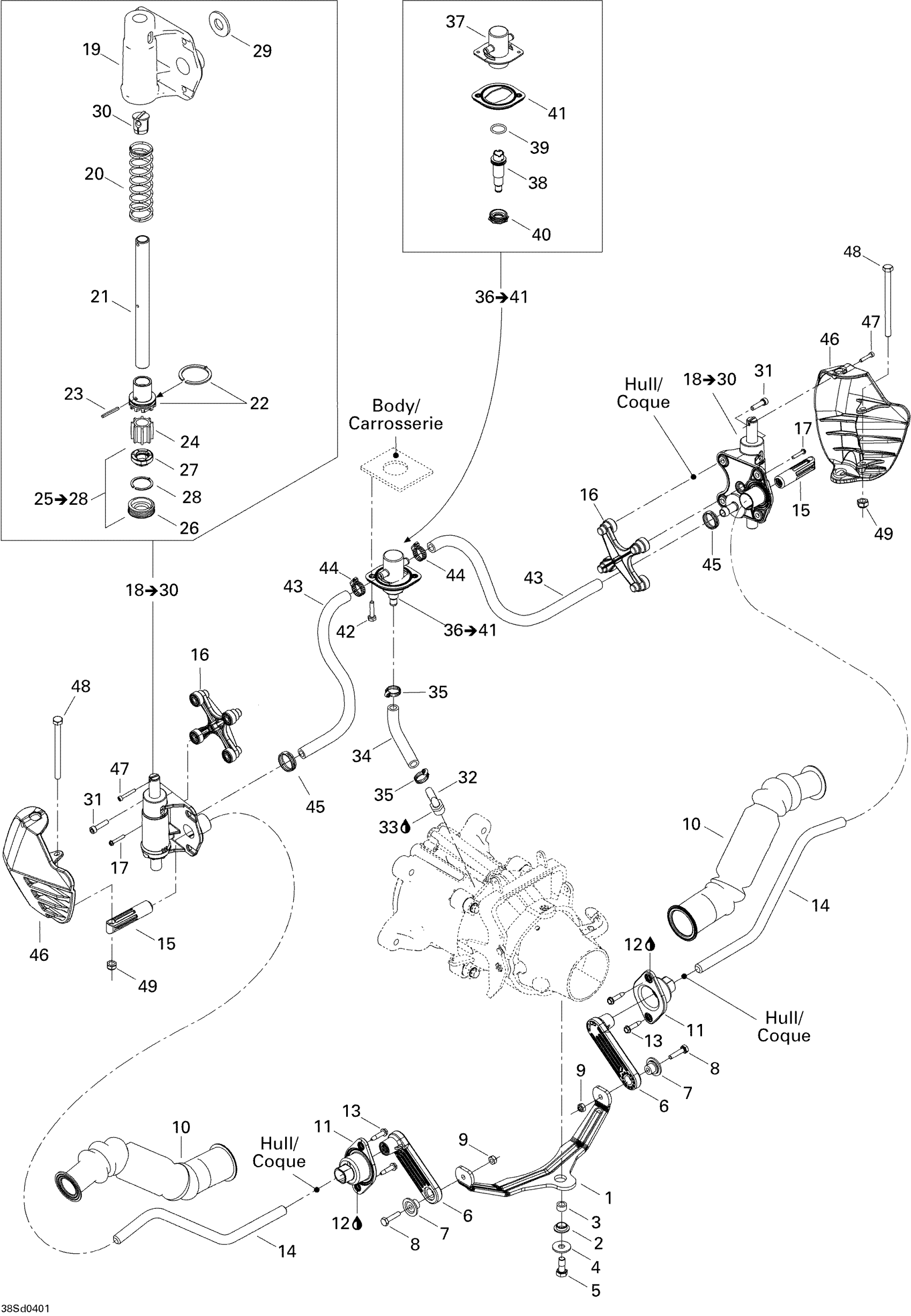

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Off Power Assisted Steering Diagram

#

Description
Price

1

U LEVER - Call your local BRP dealership

277000979

Unavailable

2

Venturi Bushing

271000321

$8.69

3

Bushing

277000980

$15.99

4

Flat Washer 8 mm, Stainless

234082600

$2.43

5

Hex. Screw M8 X 20, Scotch Grip

250000150

Unavailable

6

LEVER - Call your local BRP dealership

265000013

Unavailable

7

FLANGED BUSHING - Call your local BRP dealership

293900042

Unavailable

8

Hex. Screw M6 X 25

207162560

$1.47

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

Seal Tube

277001123

$45.99

11

ROD GROMMET - Call your local BRP dealership

277001164

Unavailable

12

Silicone Sealant 51388, 300 ml

296000309

$36.99

13

Hex. Screw 10-14 X 7/8”

211000023

$3.59

14

LH TIE ROD - Call your local BRP dealership

277000976

Unavailable

RH TIE ROD - Call your local BRP dealership

277001063

Unavailable

15

FITTING STABILISATOR - Call your local BRP dealership

265000014

Unavailable

16

SUPPORT PLATE ASS'Y - Call your local BRP dealership

277001177

Unavailable

17

Hex. Flange Screw K40 X 25

241142560

$2.64

18

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

19

Cylinder Support LH

277001138

Unavailable

Cylinder Support RH

277001142

Unavailable

20

SPRING - Call your local BRP dealership

277000962

Unavailable

21

Pivot Rod

277001091

$56.99

22

PISTON ASSY - Call your local BRP dealership

277001080

Unavailable

23

Spring Pin

250400014

$3.28

24

SPACER - Call your local BRP dealership

277001168

Unavailable

25

COVER ASS?Y - Call your local BRP dealership | Includes 25 to 27

265000008

Unavailable

26

Threaded Cover

265000009

Unavailable

27

WEAR RING - Call your local BRP dealership

277000985

Unavailable

28

Split Ring

277000986

Unavailable

29

SEAL - Call your local BRP dealership

293250119

Unavailable

30

LOCKING INSERT - Call your local BRP dealership

277001185

Unavailable

31

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

32

ELBOW ASSY - Call your local BRP dealership

271001298

Unavailable

33

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

34

Formed Hose

276000101

Unavailable

35

Norma Clamp

293650080

Unavailable

36

VALVE ASSY - Call your local BRP dealership | Includes 35 to 40

277001178

Unavailable

37

Valve Housing

277000999

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

O-Ring

414542700

Unavailable

40

Threaded Cover

265000009

Unavailable

41

Seal

293250144

Unavailable

42

Hex. Screw 10-14 X 7/8”

211000023

$3.59

43

Was 276000001 Hose 12.5 mm

219704394

$51.99

44

Tridon Gear Clamp

293650172

$3.09

45

OETIKER CLAMP - Call your local BRP dealership

293650123

Unavailable

46

LH SIDE VANE - Call your local BRP dealership

277001486

Unavailable

RH Side Vane

277001487

$51.99

47

Socket Head Screw M4 X 25

205042560

$2.22

48

HEX. SCREW M8 X 110 - Call your local BRP dealership

250000077

Unavailable

49

Hex. Elastic Nut M8

232581600

$1.48
