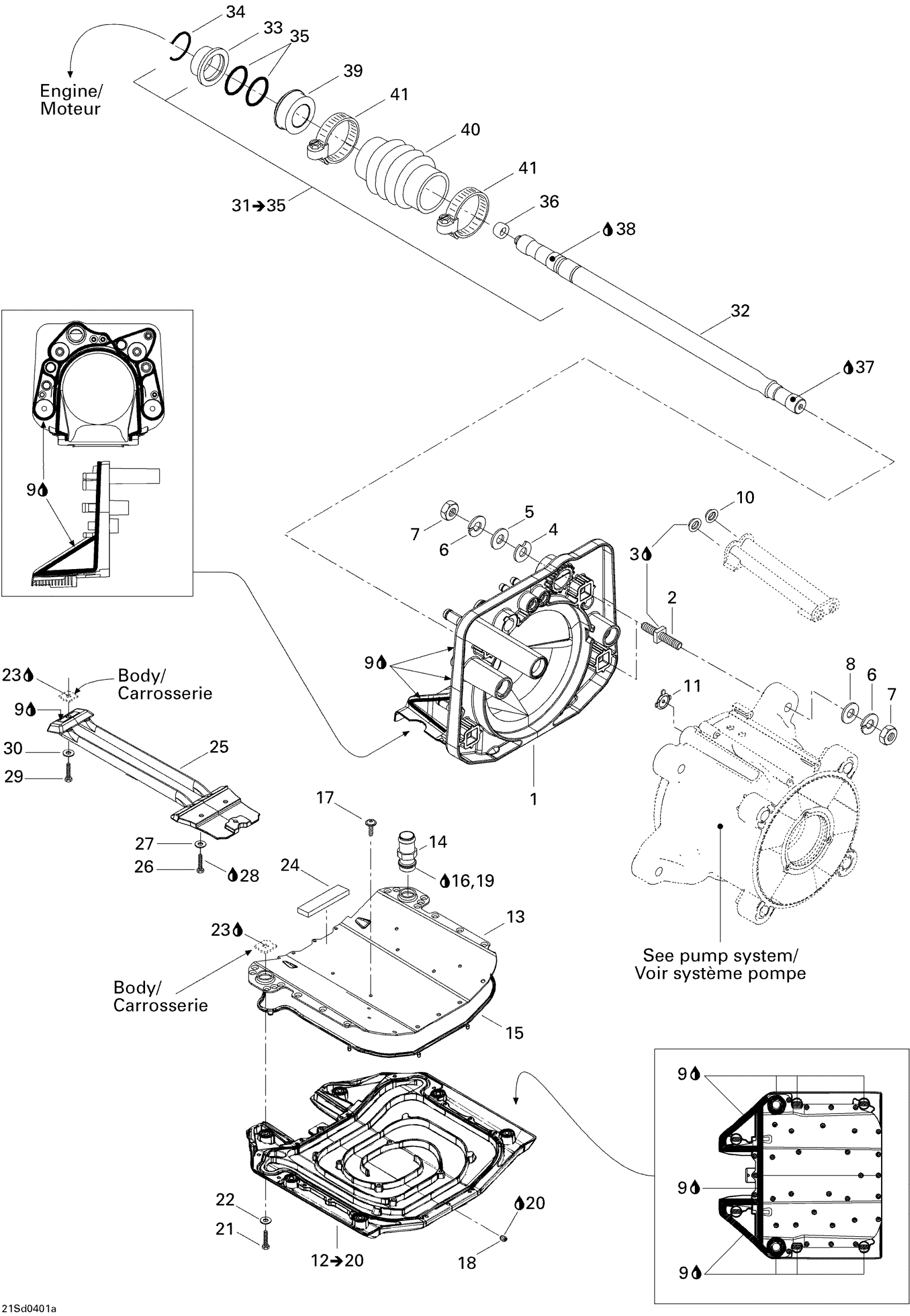

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Propulsion System Diagram

#

Description
Price

1

Pump Support

271001545

Unavailable

2

Square Stud

250300022

Unavailable

3

ADHESIVE LOCTITE 518 - Call your local BRP dealership This part replaces 293800044.

293800038

Unavailable

4

Shim 0.3 mm

272000053

Unavailable

5

Flat Washer 10 mm, Stainless

234002600

Unavailable

6

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

7

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

8

Flat Washer 10 mm, Stainless

234001600

Unavailable

9

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

Unavailable

10

Watertight Seal

293250084

Unavailable

11

Reducer

291001888

Unavailable

12

Riding Plate Ass’Y | Includes Items 4 to 9

271001187

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

STRAIGHT PLASTIC FITTING - Call your local BRP dealership

293710087

Unavailable

15

SEAL - Call your local BRP dealership This part replaces 293250141.

293250206

Unavailable

16

Was 293800041 Loctite Primer 7649

219704458

Unavailable

17

Torx Button Head Screw M6 X 14

250000064

Unavailable

18

Socket Drain Plug M6 X 12

250500005

Unavailable

19

Était Was 293800050 Loctite 577, 250 ml

219704459

Unavailable

20

Was 293800013 Loctite 56765

219704454

Unavailable

21

Hex. Screw M8 X 30, Scotch Grip

207383060

Unavailable

22

Stainless, Flat Washer 8 mm

234081600

Unavailable

23

Silicone Sealant 51388, 300 ml

296000309

Unavailable

24

Gasket, Neoprene 2000Mm Long

219704476

Unavailable

25

PUMP GRATE - Call your local BRP dealership

271001169

Unavailable

26

Hex. Screw M6 X 16

207161660

Unavailable

27

Stainless Flat Washer M6

234061600

Unavailable

28

Loctite 271, 10 ml

293800005

Unavailable

29

Hex. Screw M8 X 30, Scotch Grip

207383060

Unavailable

30

Stainless, Flat Washer 8 mm

234081600

Unavailable

31

Drive Shaft

271001449

Unavailable

32

Drive Shaft

271001449

Unavailable

33

Carbon Ring Kit This part replaces 272000177.

295501200

Unavailable

34

C-Clip

271001575

Unavailable

35

O-Ring

293300044

Unavailable

36

Drive Shaft Plug

272000173

Unavailable

37

Synthetic Grease, 400 G

293550010

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Carbon Ring Kit This part replaces 272000177.

295501200

Unavailable

40

Bellows

272000183

Unavailable

41

Norma Clamp

293650077

Unavailable
