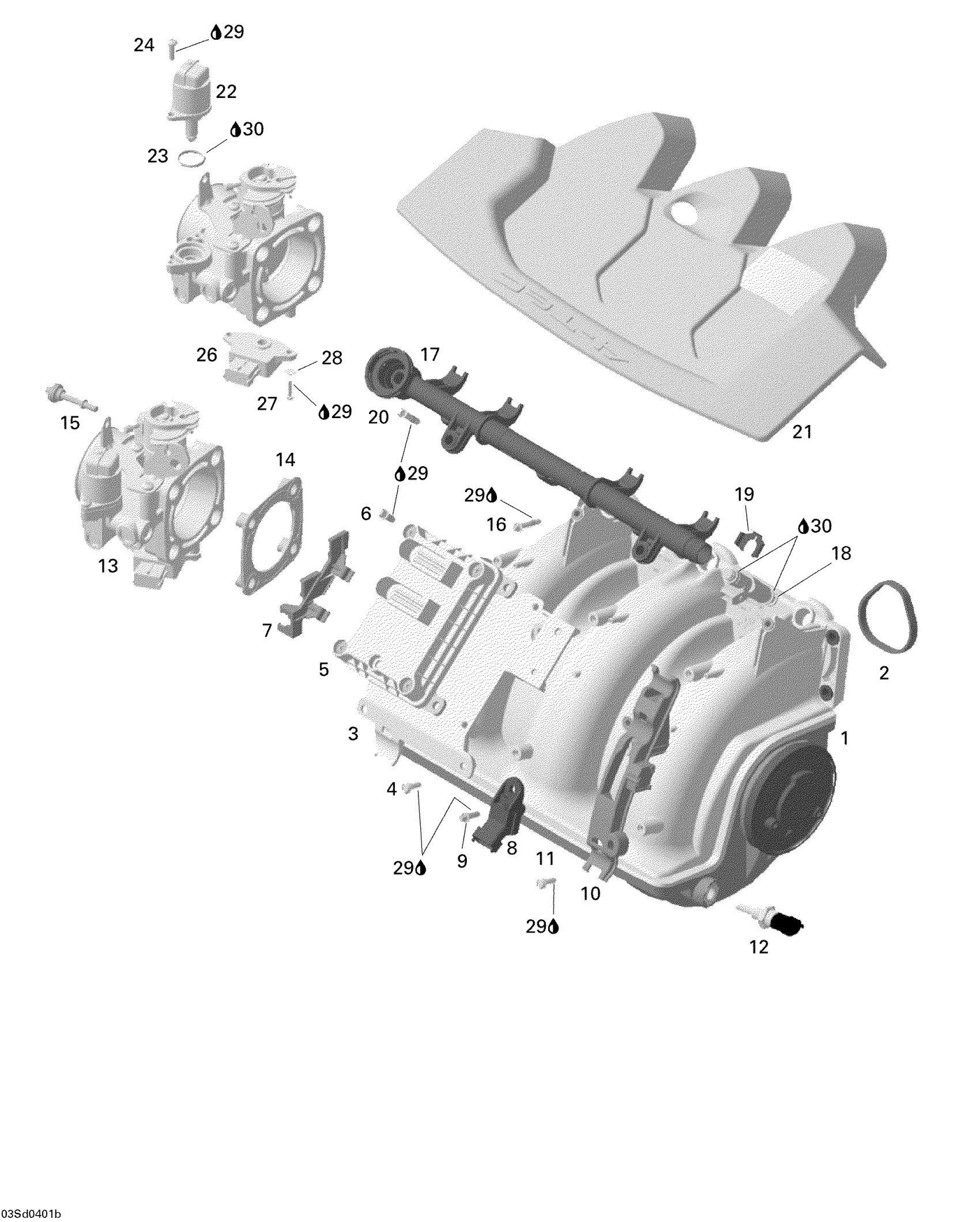

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Air Intake Manifold Diagram

#

Description
Price

1

Induction Manifold | Includes 1 to 2

420867951

Unavailable

2

Gasket | Included in gasket kit

420950740

Unavailable

3

Base Plate

420851520

Unavailable

4

Torx Flange Screw M6 X 16

420641048

Unavailable

5

Electronic Control Unit

420664562

Unavailable

6

Torx Flange Screw M6 X 16

420641588

Unavailable

7

Connector Bracket

420660400

Unavailable

8

Pressure Sensor

420274058

Unavailable

9

Torx Flange Screw M6 X 16

420641048

Unavailable

10

WIRING SUPPORT - Call your local BRP dealership

420660410

Unavailable

11

Torx Flange Screw M6 X 16

420641588

Unavailable

12

Temperature Sensor

278002895

Unavailable

13

Throttle Body

420892450

Unavailable

14

Rubber Gasket

420950792

Unavailable

15

Allen Screw M6 x 30,5

420440561

Unavailable

16

Torx Flange Screw M6 X 25

420641238

Unavailable

17

FUEL RAIL ASS'Y - Call your local BRP dealership

420874391

Unavailable

18

Fuel Injector | Includes 19 to 20

420874520

Unavailable

19

Injector Clip

420853030

Unavailable

20

Torx Flange Screw M6 X 25

420641238

Unavailable

21

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

22

Idle Bypass Valve

420963051

Unavailable

23

O-Ring

420631780

Unavailable

24

Binding Head Screw M5 X 16

420440911

Unavailable

25

Snap Ring

420845710

Unavailable

26

Position Sensor

420866120

Unavailable

27

Phillips Screw M4 X 16

208641660

Unavailable

28

Flat Washer 4 mm, Stainless

234042600

Unavailable

29

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

30

Loctite 243, 10 ml

293800060

Unavailable
