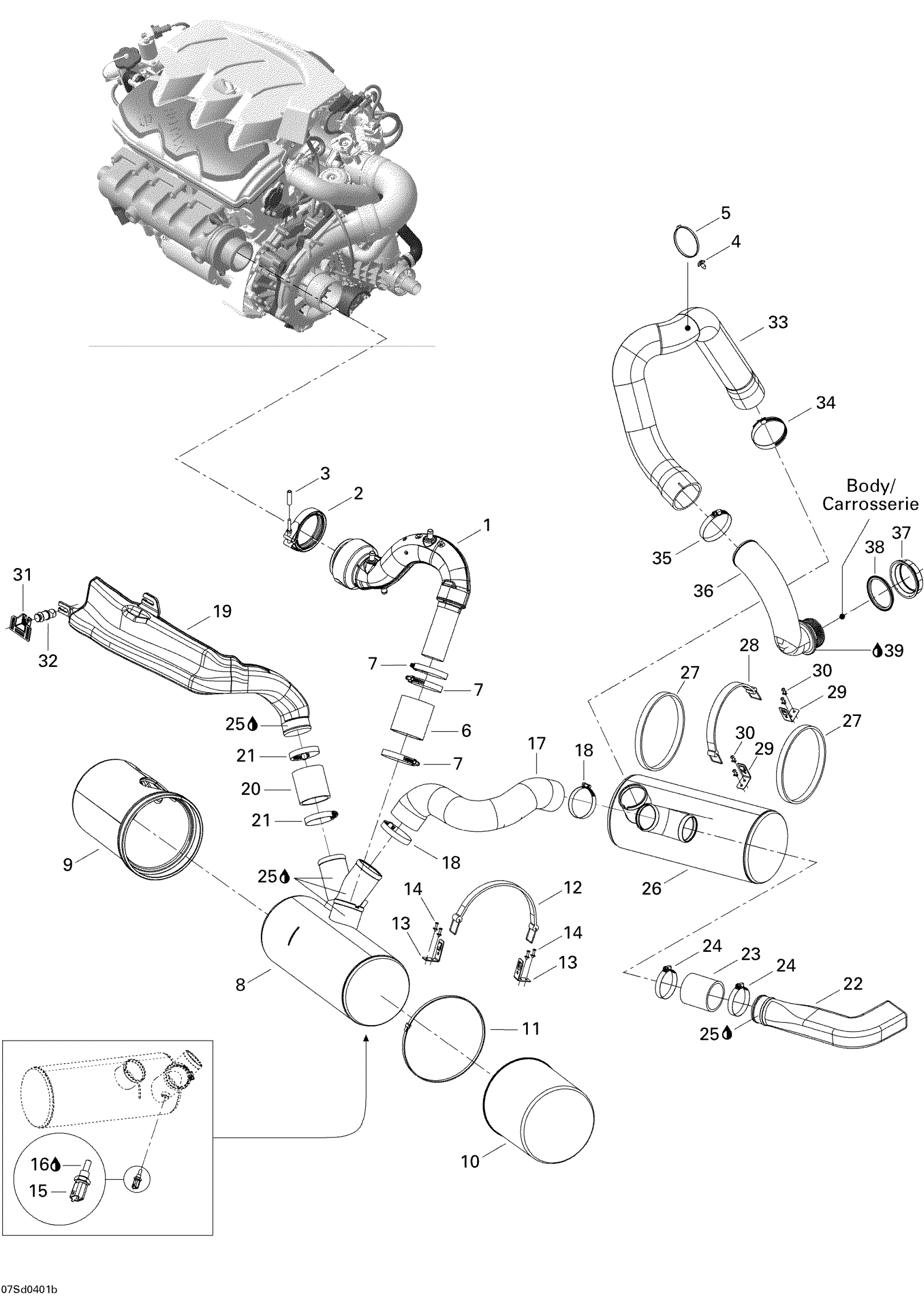

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Muffler Diagram
#
1
EXHAUST PIPE - Call your local BRP dealership
274001049
Unavailable
2
Exhaust Clamp This part replaces 274000959.
274001472
Unavailable
3
Polyurethane Hose 10000Mm Long
219704410
Unavailable
4
Mount Dart
293730040
Unavailable
5
Tie Wrap 368 mm
293750008
Unavailable
6
Exhaust Hose
274001302
Unavailable
7
TRIDON GEAR CLAMP - Call your local BRP dealership
293650006
Unavailable
8
Muffler
274000982
Unavailable
9
Front Muffler Cover
274001008
Unavailable
10
REAR MUFFLER COVER - Call your local BRP dealership
274000984
Unavailable
11
WRAP_TIE 828 X 9 - Call your local BRP dealership
293750020
Unavailable
12
Retainer Strap
293850097
Unavailable
13
STRAP CLIP 90 - Call your local BRP dealership
293850076
Unavailable
14
Avdel Rivet 3/16"
293150037
Unavailable
15
Temperature Sensor
278002895
Unavailable
16
Était/Was 293800038 Loctite 518, 50 ml
219704456
Unavailable
17
Front Hose
274001013
Unavailable
18
Tridon Clamp
293650179
Unavailable
19
LH Resonator
274000993
Unavailable
20
Exhaust Hose
274001014
Unavailable
21
Tridon Clamp
293650179
Unavailable
22
Straight Resonator
274000994
Unavailable
23
Exhaust Hose
274001014
Unavailable
24
Tridon Clamp
293650179
Unavailable
25
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
26
Secondary Muffler
274000988
Unavailable
27
Rubber Strip
293830034
Unavailable
28
Retainer Strap
293850097
Unavailable
29
STRAP CLIP 90 - Call your local BRP dealership
293850076
Unavailable
30
Avdel Rivet 3/16"
293150037
Unavailable
31
Pad Support
291001352
Unavailable
32
RUBBER PAD - Call your local BRP dealership
293830062
Unavailable
33
REAR HOSE - Call your local BRP dealership
274001015
Unavailable
34
Tridon Clamp
293650179
Unavailable
35
TRIDON GEAR CLAMP - Call your local BRP dealership
293650006
Unavailable
36
Exhaust Outlet
274000901
Unavailable
37
Nut 72 mm
274000224
Unavailable
38
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
39
Silicone Sealant 51388, 300 ml
296000309
Unavailable
