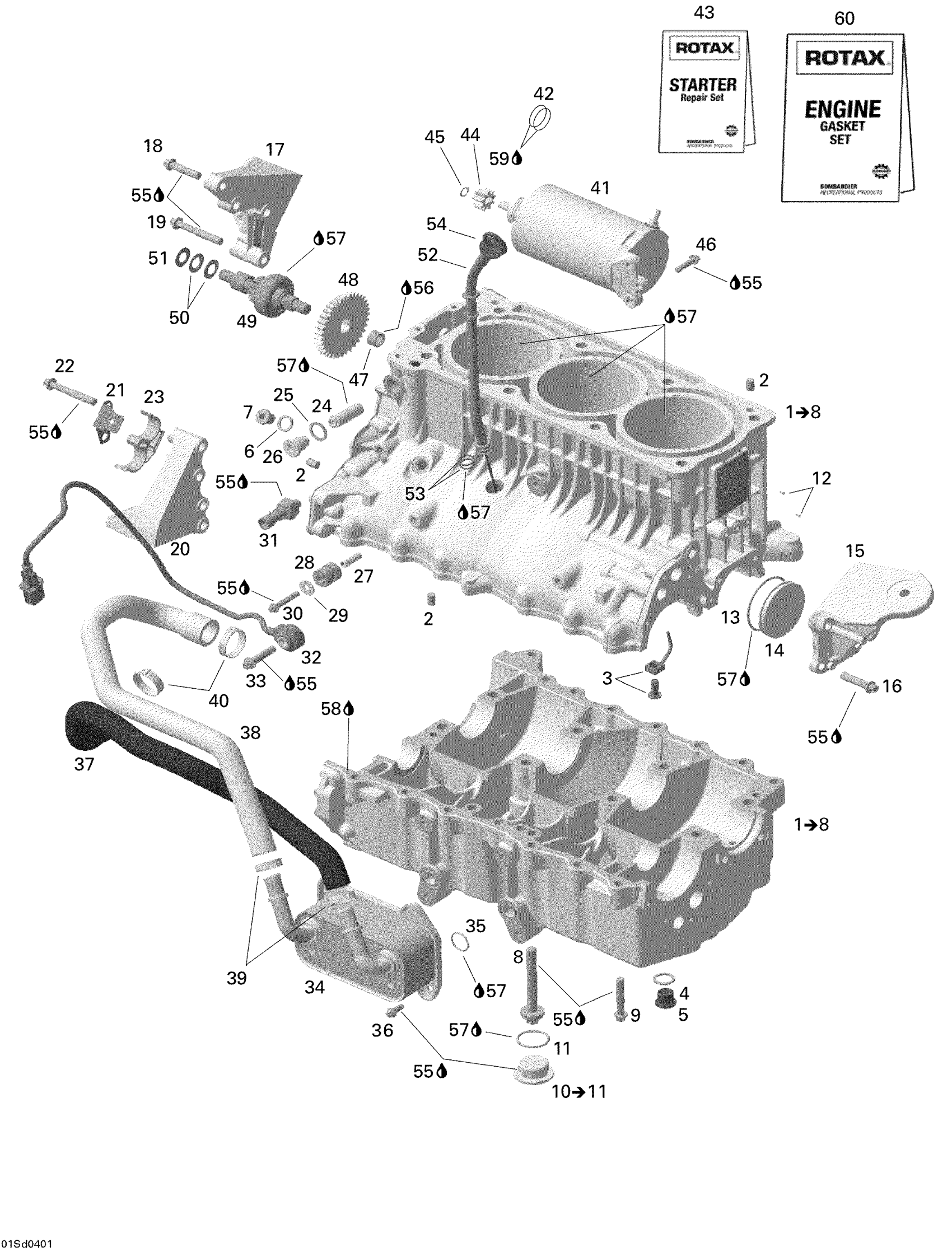

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Engine Block Diagram

#

Description
Price

1

Engine Block Ass’y | INCLUDES 1 TO 8

420888812

Unavailable

2

Center Pin 8 X 12

420632010

Unavailable

3

Oil Spray Nozzle This part replaces 420956778.

420956827

Unavailable

4

Gasket Ring

420430624

Unavailable

5

Plug Screw M16

420240233

Unavailable

6

Aluminum Sealing Ring

420250016

Unavailable

7

Plug Screw M12

420841923

Unavailable

8

Torx Flange Screw M10 X 82

420641120

Unavailable

9

Hex. Flange Screw M8 X 45

420641208

Unavailable

10

Plug Screw M30 X 1.5

420641171

Unavailable

11

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

Unavailable

12

Grooved Pin

420249073

Unavailable

13

O-Ring

420430405

Unavailable

14

Plug Cover

420660110

Unavailable

15

FRONT ENGINE BRACKET - Call your local BRP dealership This part replaces 420811791.

420811792

Unavailable

16

Torx Flange Screw M8 X 35

420641188

Unavailable

17

Engine Bracket PTO, Exhaust

420811788

Unavailable

18

Torx Flange Screw M8 X 35

420641188

Unavailable

19

Torx Flange Screw M8 X 55

420641213

Unavailable

20

Engine Bracket PTO, Exhaust

420811784

Unavailable

21

Retaining Plate

420851740

Unavailable

22

Torx Flange Screw M8 X 55

420641213

Unavailable

23

Hose Bracket

420660290

Unavailable

24

Chain Tensioner

415129408

Unavailable

25

Gasket Ring

420430624

Unavailable

26

Chain Tensioner With Screw | Includes no. 8-11

420236259

Unavailable

27

SPACER - Call your local BRP dealership

420847970

Unavailable

28

Rubber Bracket

420660090

Unavailable

29

Flat Washer M6

420827968

Unavailable

30

Torx Flange Screw M6 X 35

420641258

Unavailable

31

Inter.Press.Hui*Oil Pressure Switch This part replaces 420856530.

420856538

Unavailable

32

Noise Sensor

270000484

Unavailable

33

Torx Flange Screw M8 X 35

420641188

Unavailable

34

Oil Radiator

420888850

Unavailable

35

O-Ring

420250057

Unavailable

36

Torx Flange Screw M6 X 16

420641048

Unavailable

37

FORMED HOSE - Call your local BRP dealership

420922796

Unavailable

38

FORMED HOSE - Call your local BRP dealership

420922791

Unavailable

39

Oeticker Gear Clamp, 25.6-706R

509000442

Unavailable

40

Gear Clamp

420851673

Unavailable

41

Electric Starter Ass'y | Includes no. 20-21

420888995

Unavailable

42

O-Ring

420631310

Unavailable

43

CARBON BRUSH SET - Call your local BRP dealership

420664710

Unavailable

44

Starter Gear, 9 Teeth

420834522

Unavailable

45

Retaining Ring

420845601

Unavailable

46

Torx Flange Screw M6 X 25

420641238

Unavailable

47

Needle Bushing

420232482

Unavailable

48

Bendix Starter This part replaces 420889872.

420890637

Unavailable

49

Bendix Starter This part replaces 420889872.

420890637

Unavailable

50

Spring Washer

420238300

Unavailable

51

Thrust Washer

420827261

Unavailable

52

OIL LEVEL TUBE - Call your local BRP dealership | Includes 51 to 52

420956943

Unavailable

53

O-Ring

420950810

Unavailable

54

Oil Level Gauge

420956933

Unavailable

55

Loctite 243, 10 ml

293800060

Unavailable

56

Dow Corning 111, 150 g

413707000

Unavailable

57

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

58

Loctite 5910, 300 ml

293800081

Unavailable

59

Isoflex Grease, TOPAS NB52, 50 g

293550021

Unavailable

60

Not Available As Spare Part - Friction Washer

Unavailable
