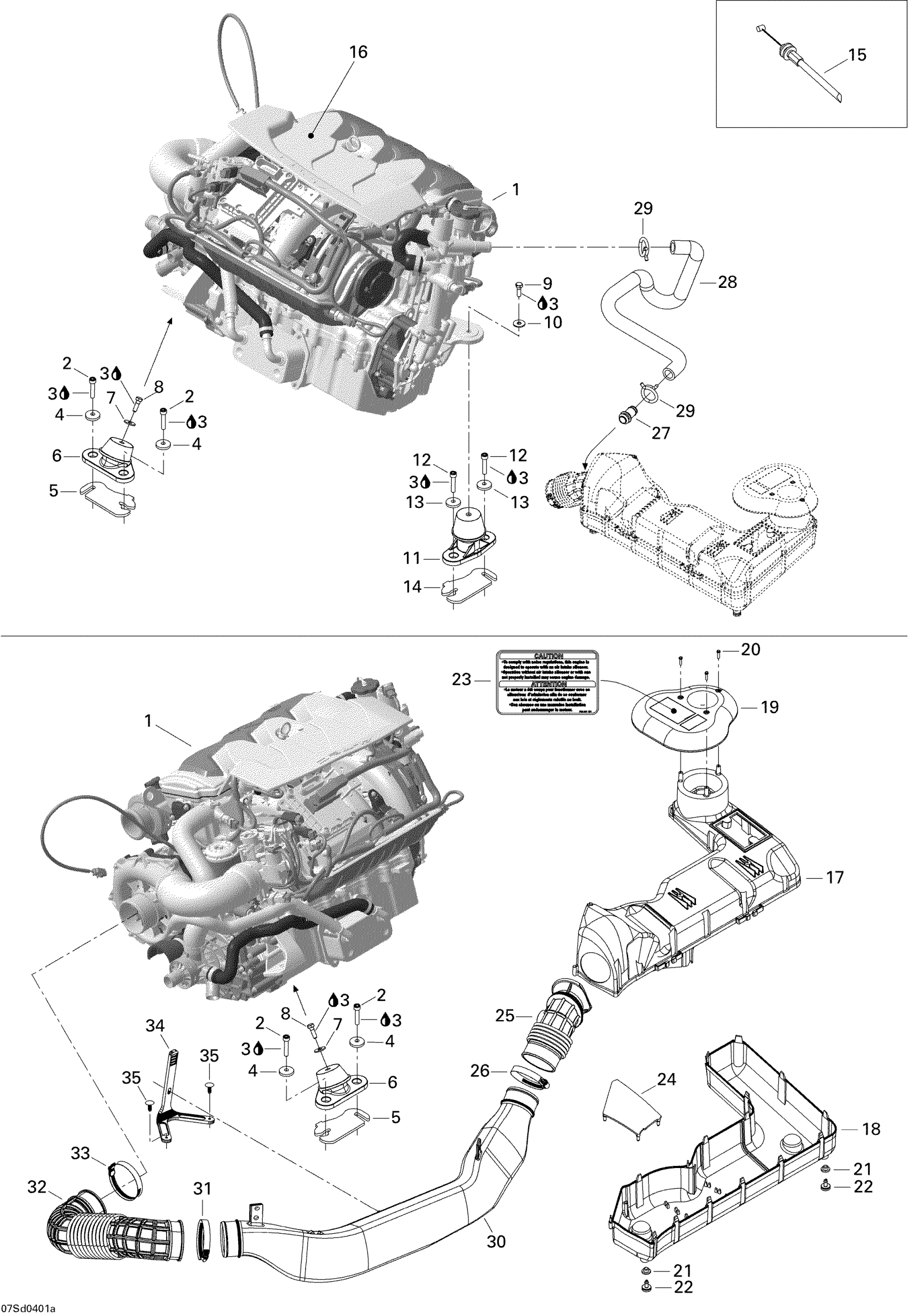

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Engine Support And Air Intake Diagram

#

Description
Price

1

Rotax Engine 4 Strokes 1503

270000454

Unavailable

2

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

3

Loctite 243, 10 ml

293800060

$21.49

4

Cone Washer

250200018

$5.61

5

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

Shim 1.3 mm

270000762

$12.99

6

Engine Support Ass'y

270001081

$109.99

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

9

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

10

Flat Washer 8 mm, Stainless

234082600

$2.43

11

Engine Support Ass'y

270001096

$97.99

12

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

13

Cone Washer

250200018

$5.61

14

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

Shim 1.3 mm

270000762

$12.99

15

THROTTLE CABLE - Call your local BRP dealership

277001121

Unavailable

16

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

17

Upper Air Silencer - Call Your Local BRP Dealership

273000222

Unavailable

18

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

19

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

20

Hex. Flange Screw K40 X 16

241141660

$1.48

21

GROMMET - Call your local BRP dealership

293720064

Unavailable

22

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

23

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

24

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

25

INTAKE HOSE - Call your local BRP dealership

273000186

Unavailable

26

Tridon Clamp

293650064

$8.29

27

Breather Valve

273000234

$14.49

28

Hose

275500566

Unavailable

29

Spring Clamp

293650115

$3.09

30

Intake Hose

273000214

Unavailable

31

Tridon Clamp

293650179

$11.49

32

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

33

Tridon Clamp

293650179

$11.49

34

Rubber Strap

293850065

Unavailable

35

Black, Dart

293730011

$0.99
