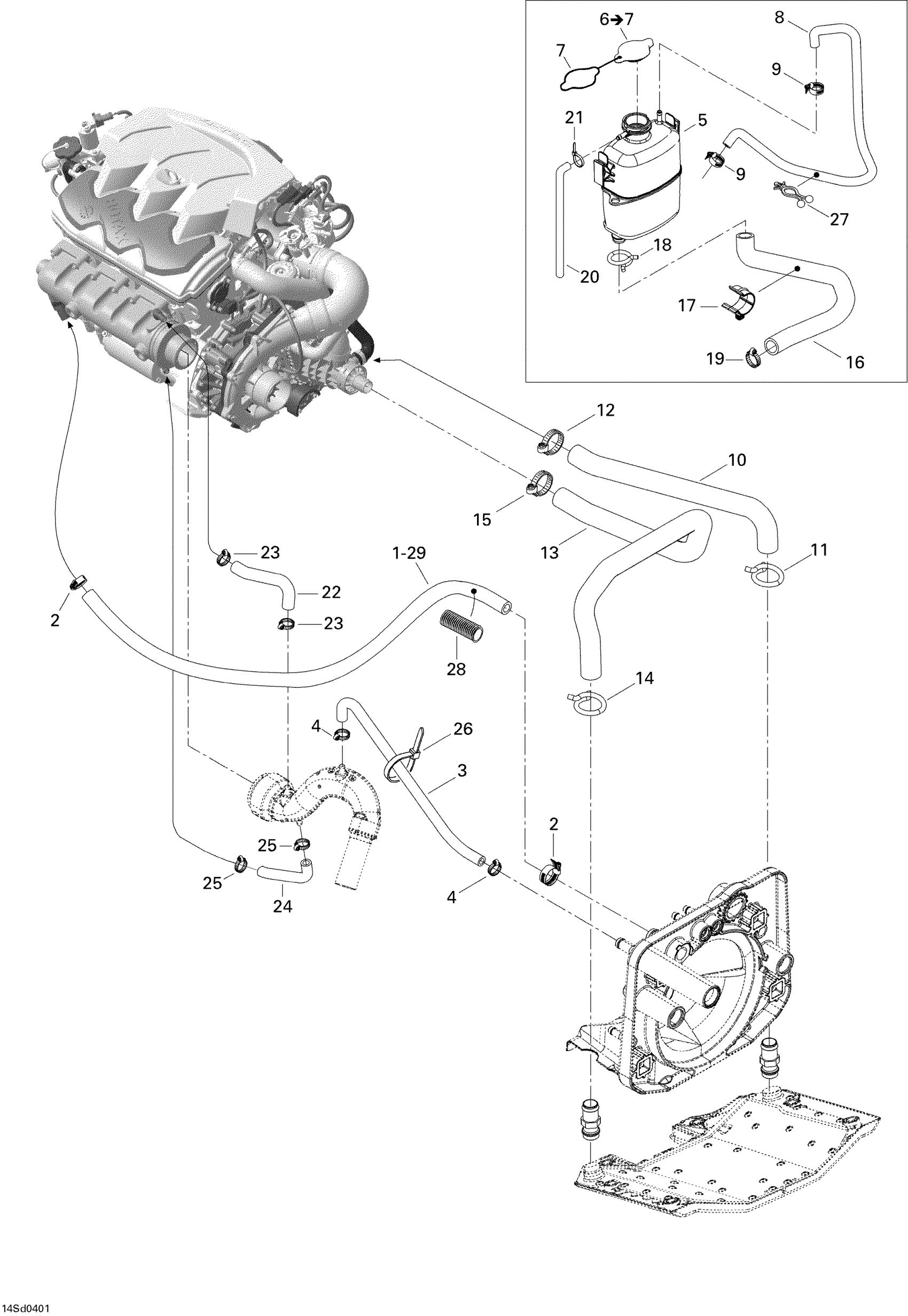

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Cooling System Diagram

#

Description
Price

1

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

2

Tridon Gear Clamp

293650051

$4.19

3

Was 276000001 Hose 12.5 mm

219704394

$51.99

4

Tridon Gear Clamp

293650172

$3.09

5

Coolant Tank

276000086

$109.99

6

Pressure Cap | Includes 720 to 720a

276000100

$25.99

7

Latch - Call your local BRP dealership | Not Shown

276000127

Unavailable

8

Hose

276000102

Unavailable

9

Tridon Gear Clamp

293650170

$1.99

10

RH Radiator Hose

276000248

$58.99

11

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

12

Tridon Gear Clamp

293650045

$5.69

13

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

14

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

15

Tridon Gear Clamp

293650045

$5.69

16

Formed Return Hose

276000115

Unavailable

17

Retainer

275500526

$4.55

18

Spring Clamp

293650115

$3.09

19

Tridon Gear Clamp

293650019

$5.82

20

Polyurethane Hose 10000Mm Long

219704410

$56.99

21

Tie Wrap 94 mm | 4X4

293750001

$1.03

22

UPPER FORMED HOSE - Call your local BRP dealership

276000103

Unavailable

23

Tridon Gear Clamp

293650172

$3.09

24

Lower Formed Hose

276000104

Unavailable

25

Tridon Gear Clamp

293650172

$3.09

26

Tie Wrap 368 mm

293750008

$1.04

27

ATTACHE *BRACKET - Call your local BRP dealership

291000714

Unavailable

28

Tubing 25 MM 1000MM Long

219704402

$15.99

29

SHRINK TUBING - Call your local BRP dealership

276000125

Unavailable
