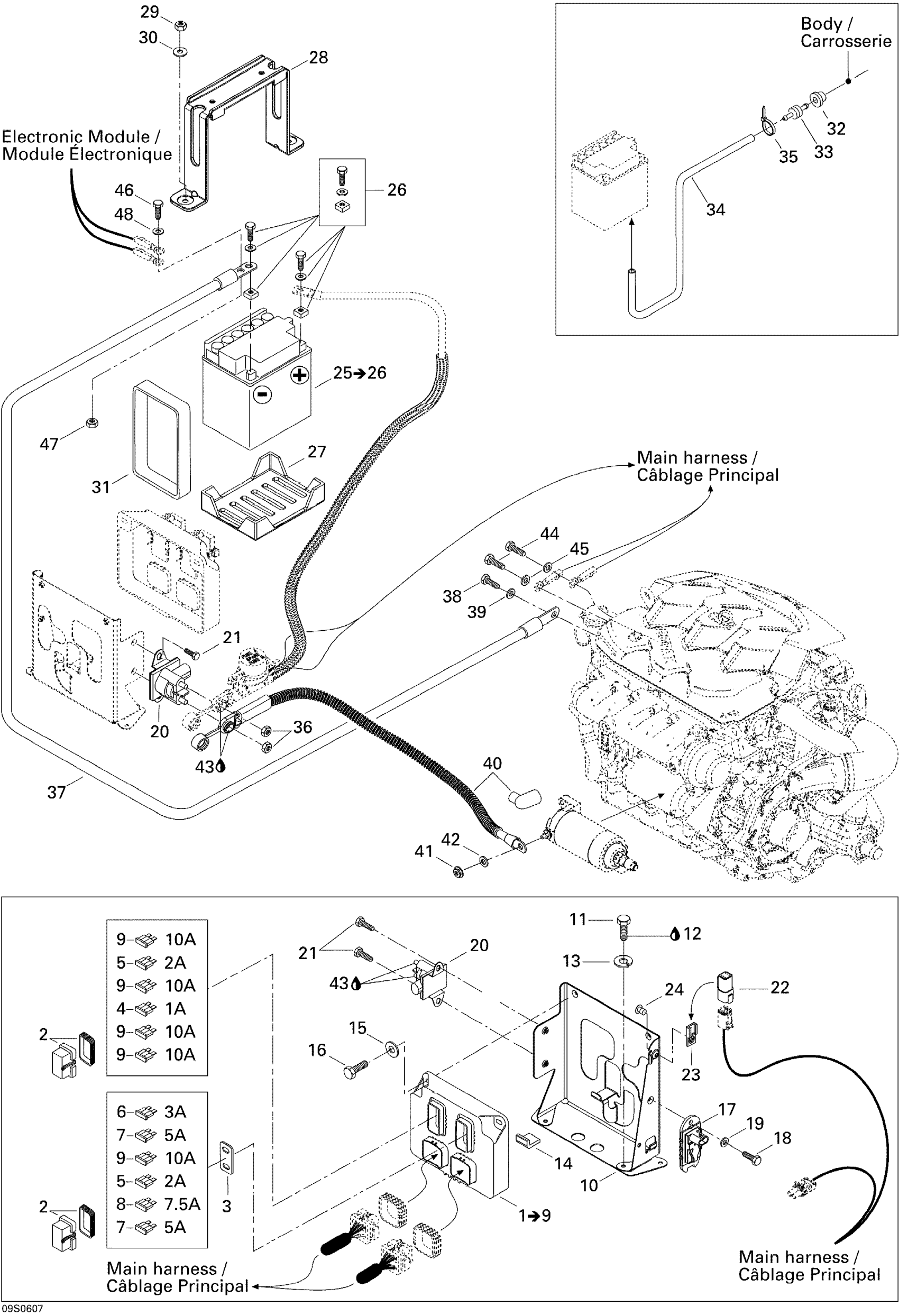

Sea-doo GTX 4-TEC SC, 2006 Electrical System Diagram

#

Description
Price

1

Multi Purpose Electronic Module, Mpem | Includes 1 to 9, GTI Rental

278002043

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

4

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

5

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

6

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

7

Fuse, 5 Amperes | CE

278000344

$3.22

8

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

9

Fuse, 10 Amperes | North America

278001197

Unavailable

10

Module Support

278002139

Unavailable

11

Hex. Screw 10-14 X 7/8”

211000023

Unavailable

12

Loctite 271, 10 ml

293800005

Unavailable

13

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

14

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

15

Flat Washer M6, Stainless

234062600

Unavailable

16

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

17

Interrupter T.O.P.S.

278001992

Unavailable

18

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

19

Stainless Flat Washer M6

234061600

$0.25

20

Starter Relay

278003012

Unavailable

21

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

22

Diagnostic Connector

278002704

Unavailable

23

Clip

270000141

$8.33

24

Pop Rivet 3/16"

204000081

Unavailable

25

Battery, 30 Amperes

278001882

Unavailable

26

Battery Bolt Kit

250000282

$2.95

27

LOWER BATTERY PAD - Call your local BRP dealership

278001582

Unavailable

28

BATTERY SUPPORT - Call your local BRP dealership

278001677

Unavailable

29

Hex. Elastic Nut M8 Brass

232581200

$1.29

30

Flat Washer 8 mm, Stainless

234082600

Unavailable

31

BATTERY STRAP 337 MM - Call your local BRP dealership

278001764

Unavailable

32

Grommet

293720029

Unavailable

33

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

34

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

35

Tie Wrap 94 mm | 4X4

293750001

$0.83

36

Hex. Elastic Stop Nut M6

232561600

$0.92

37

Battery Ground Cable Ass'y

278001611

Unavailable

38

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

39

Stainless Flat Washer M6

234061600

$0.25

40

STARTER CABLE - Call your local BRP dealership

278002265

Unavailable

41

Elastic Stop Nut M6, Brass

232561200

Unavailable

42

Stainless Flat Washer M6

234061600

$0.25

43

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

44

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

45

Stainless Flat Washer M6

234061600

$0.25

46

Hex. Cap Screw M6 X 12

207161260

Unavailable

47

Elastic Stop Nut M6, Brass

232561200

Unavailable

48

Stainless Flat Washer M6

234061600

$0.25
