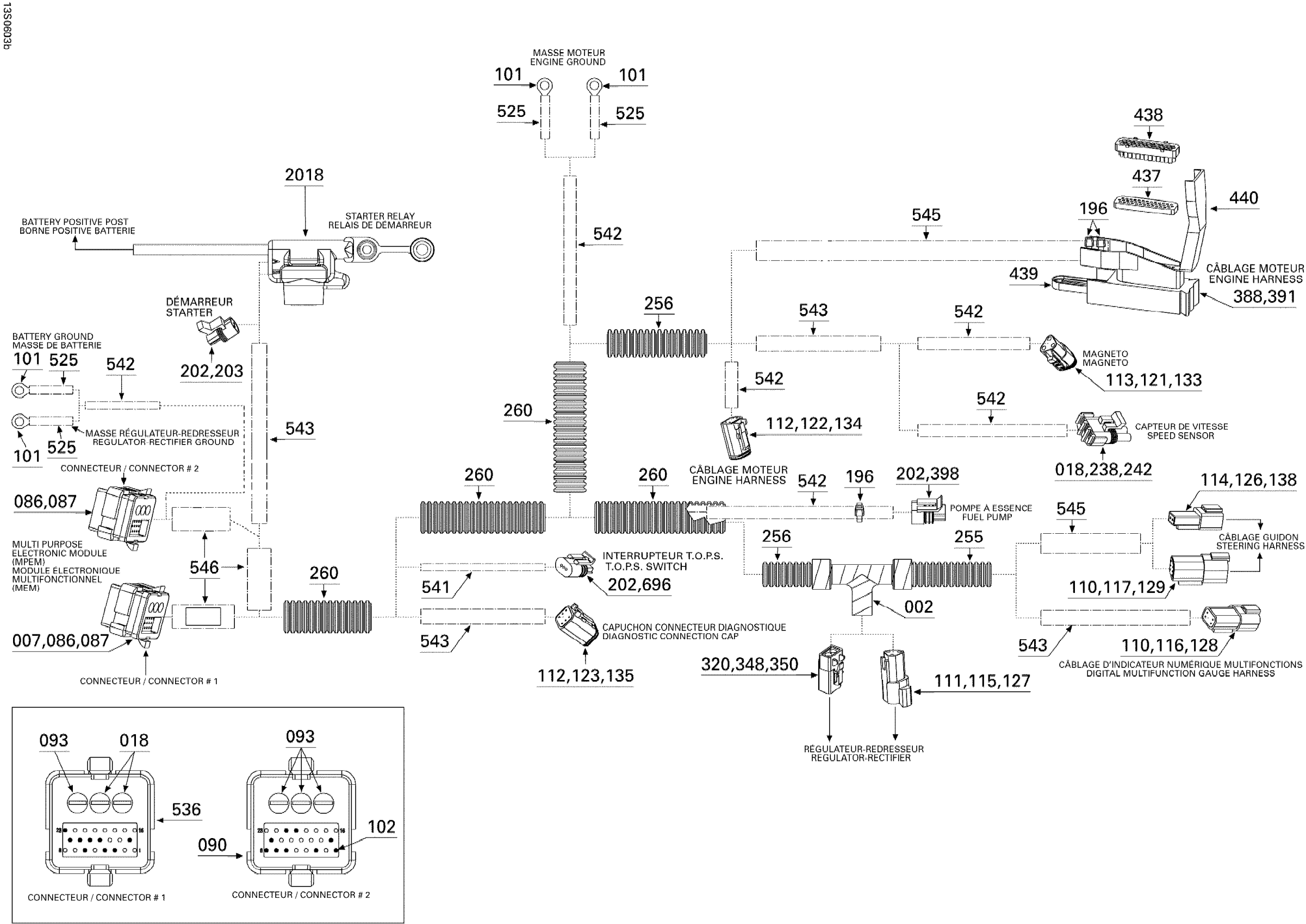

Sea-doo GTX 4-TEC SC, 2006 Electrical Harness Diagram

#

Description
Price

1

MAIN HARNESS - Call your local BRP dealership | Includes 1 to 2018

278002119

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

7

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

18

Seal

278001223

Unavailable

86

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

87

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

90

Male Terminal Housing, 26 Circuits

278001062

Unavailable

93

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

101

Open Barrel Terminal

278001392

Unavailable

102

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

110

Male Terminal

278000631

$4.12

111

Male Terminal

515175823

Unavailable

112

Female Terminal

278000632

Unavailable

113

FEMALE TERMINAL - Call your local BRP dealership

278001276

Unavailable

114

Male Housing, 2 Circuits

409206900

Unavailable

115

Male Housing

278002378

Unavailable

116

Female Housing, 4 Circuits

278000635

$14.02

117

Male Terminal Housing, 6 Circuits

710001539

$15.57

120

Female Connector, 2 Circuits

409207300

$9.60

121

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

122

Male Connector, 4 Circuits | CE

278000739

$14.92

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

126

Male Lock, 2 Circuits

409207500

$3.02

127

Male Lock, 3 Circuits

409207600

$3.02

128

Female Wedge, 4 Circuits

278000636

$4.12

129

Female Lock, 6 Circuits

278000735

$3.02

133

Female Lock

409207200

$3.48

134

Male Lock, 4 Circuits | CE

278000738

$2.91

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

138

Sealing Cap

293000052

Unavailable

196

Tie Wrap 142 mm

293750002

Unavailable

202

Female Terminal

278001114

$2.55

203

Male Connector, 2 Circuits

278001113

$12.65

229

Female Terminal

278000223

Unavailable

237

Male Connector, 2 Circuits

278000220

$11.02

238

Male Housing, 3 Circuits

278000273

Unavailable

242

Wire Seal

278000218

Unavailable

255

Was 409901800 Tubing (13 mm)

219704400

Unavailable

256

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

260

Was 515175319 Tubing 22 mm

219704423

Unavailable

320

Open Clamp

515175507

Unavailable

348

Female Terminal Housing, 2 Circuits

278001673

$23.05

350

Female Lock, 2 Circuits

278001671

$3.22

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

398

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$7.48

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

$5.31

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

536

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

696

Connector, 3 Circuits

278002064

Unavailable

2018

BATTERY CABLE - Call your local BRP dealership

278002137

Unavailable
