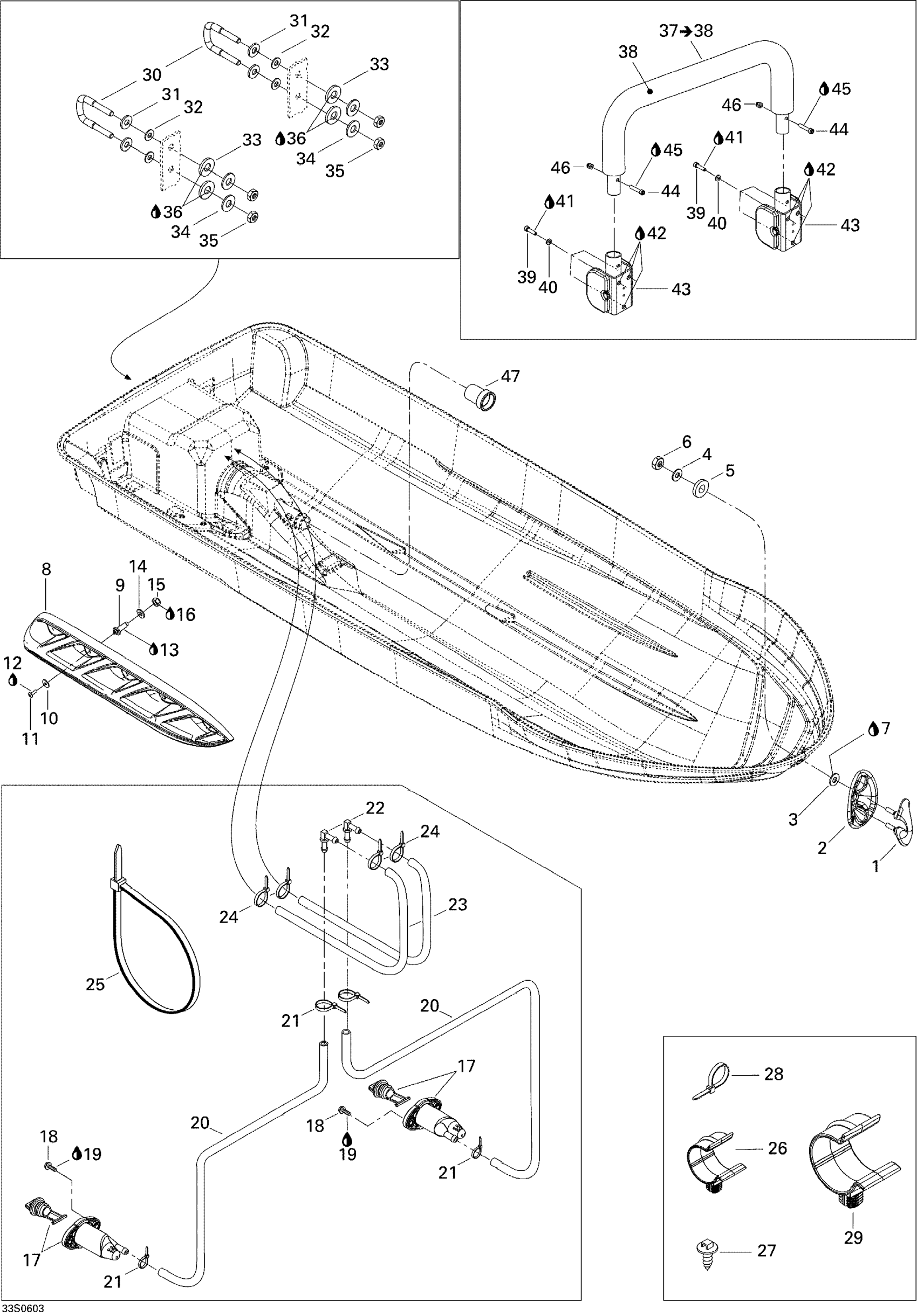

Sea-doo GTX 4-TEC SC, 2006 Hull Diagram

#

Description
Price

1

Bow Eye Ass'y, White

292000710

Unavailable

2

Shell, White

292000511

Unavailable

3

Stainless, Flat Washer 8 mm

234081600

Unavailable

4

Flat Washer 8 mm, Stainless

250200175

Unavailable

5

Rubber Washer

293830037

Unavailable

6

Hex. Elastic Nut M8 Brass

232581200

$1.29

7

Silicone Sealant 51388, 300 ml

296000309

Unavailable

8

RH Sponson

292001878

Unavailable

8

LH Sponson

292001877

Unavailable

9

SPONSON ADAPTER - Call your local BRP dealership

292001046

Unavailable

10

Flat Washer M6.6 X 22

250200022

Unavailable

11

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

Unavailable

12

Loctite 243, 10 ml

293800060

$20.77

13

Silicone Sealant 51388, 300 ml

296000309

Unavailable

14

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

15

NUT-STOP ELASTIC DIN.985A2 - Call your local BRP dealership

250100078

Unavailable

16

Loctite 243, 10 ml

293800060

$20.77

17

Drain Plug

292001252

Unavailable

18

Hex. Screw 10-14 X 7/8”

211000023

Unavailable

19

Silicone Sealant 51388, 300 ml

296000309

Unavailable

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

21

Tie Wrap 94 mm | 4X4

293750001

$0.83

22

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

23

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

24

Tie Wrap 94 mm | 4X4

293750001

$0.83

25

Tie Wrap 368 mm

293750008

$0.85

26

Cable Retainer

275500527

Unavailable

27

Mount Dart

293730040

$0.86

28

Tie-Rap 180 mm

414115200

$0.09

29

Retainer

275500590

Unavailable

30

U-Clamp

292000933

Unavailable

31

Flat Washer M8.5 x 18

293050001

Unavailable

32

Flat Washer 8 mm, Nylon

234081100

$1.00

33

Rubber Washer

293830037

Unavailable

34

Flat Washer 8 mm, Stainless

250200175

Unavailable

35

Hex. Elastic Nut M8 Brass

232581200

$1.29

36

Silicone Sealant 51388, 300 ml

296000309

Unavailable

37

LADDER TUBE ASS'Y - Call your local BRP dealership

292001038

Unavailable

38

Protective Sleeve

292001067

Unavailable

39

Socket Head Screw M6 X 25, Scotch Grip

250000076

Unavailable

40

Stainless Flat Washer M6

234061600

$0.25

41

Silicone Sealant 51388, 300 ml

296000309

Unavailable

42

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

Unavailable

43

STAIR SUPPORT - Call your local BRP dealership | Includes 39 to 40

292001115

Unavailable

44

Socket Head Screw M6 X 35

205063560

Unavailable

45

Loctite 243, 10 ml

293800060

$20.77

46

Nut M6 | Model-Australie, Brezil, Europe

232361600

Unavailable

47

HULL INSERT, 41 MM - Call your local BRP dealership

292000975

Unavailable
