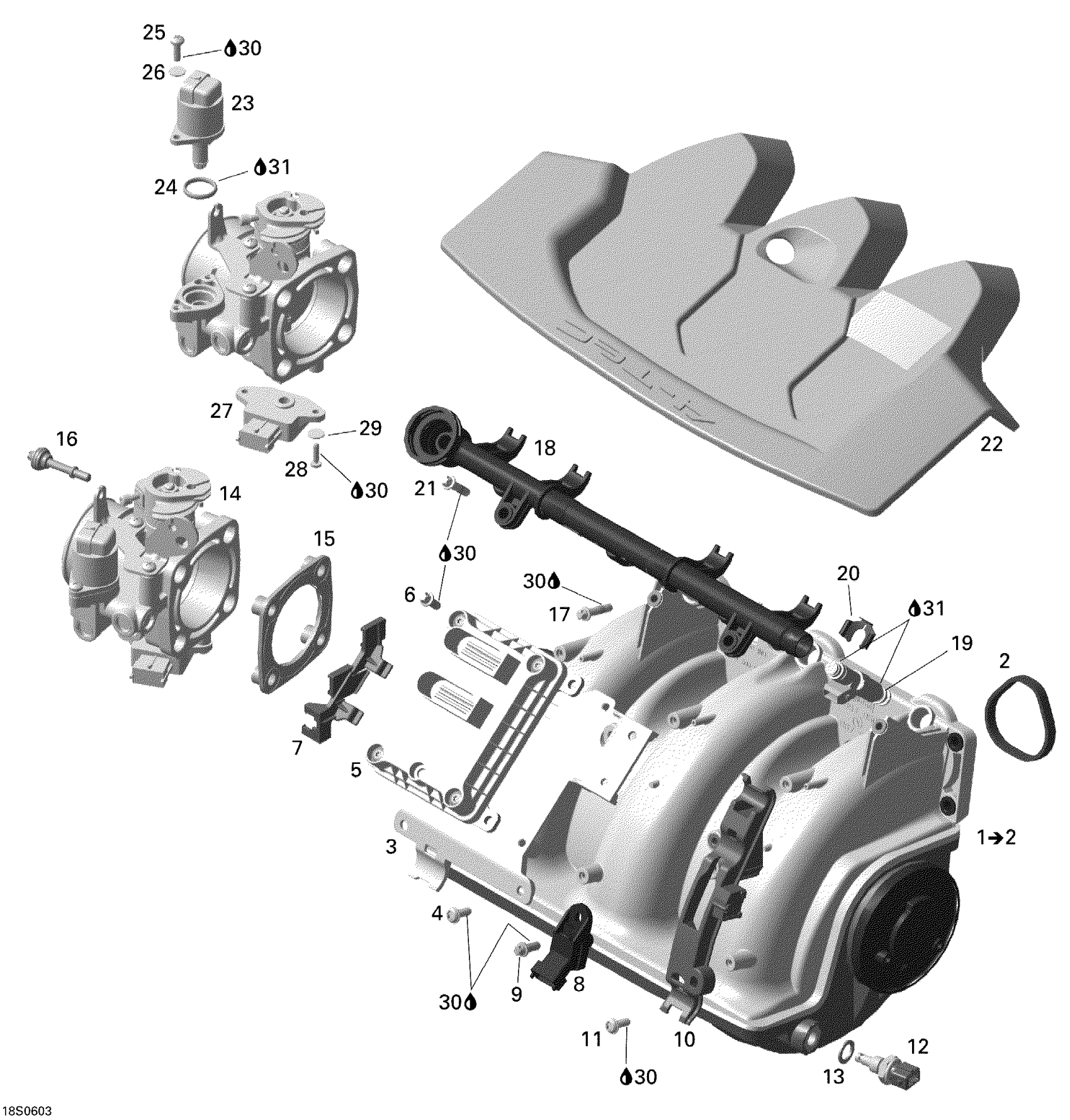

Sea-doo GTX 4-TEC SC, 2006 Air Intake Manifold Diagram

#

Description
Price

1

Induction Manifold | Includes 1 to 2

420867951

Unavailable

2

Gasket | Included in gasket kit

420950740

Unavailable

3

BASE PLATE - Call your local BRP dealership

420851521

Unavailable

4

Torx Flange Screw M6 X 16

420641048

Unavailable

5

ELECTRONIC BOX - Call your local BRP dealership

420664568

Unavailable

6

Torx Flange Screw M6 X 16

420641588

$1.74

7

CONNECTOR BRACKET - Call your local BRP dealership

420660402

Unavailable

8

Pressure Sensor

420274058

Unavailable

9

Torx Flange Screw M6 X 16

420641048

Unavailable

10

WIRING SUPPORT - Call your local BRP dealership

420660410

Unavailable

11

Torx Flange Screw M6 X 16

420641588

$1.74

12

Temperature Sensor This part replaces 420222423.

420222421

Unavailable

13

Aluminum Sealing Ring

420250016

Unavailable

14

Throttle Body

420889024

Unavailable

15

Rubber Gasket

420950792

Unavailable

16

Hex Screw M6 X 30

420440568

Unavailable

17

Torx Flange Screw M6 X 25

420641238

Unavailable

18

FUEL RAIL ASS'Y - Call your local BRP dealership

420874391

Unavailable

19

Fuel Injector | Includes 19 to 20

420874520

Unavailable

20

Injector Clip

420853030

$2.46

21

Torx Flange Screw M6 X 25

420641238

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Idle Bypass Valve

420963051

Unavailable

24

O-Ring

420631780

$3.61

25

Binding Head Screw M5 X 16

420440911

Unavailable

26

Snap Ring

420845710

Unavailable

27

Position Sensor

420866120

$77.97

28

Phillips Screw M4 X 16

208641660

$0.74

29

Flat Washer 4 mm, Stainless

234042600

Unavailable

30

Loctite 243, 10 ml

293800060

$20.77

31

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
