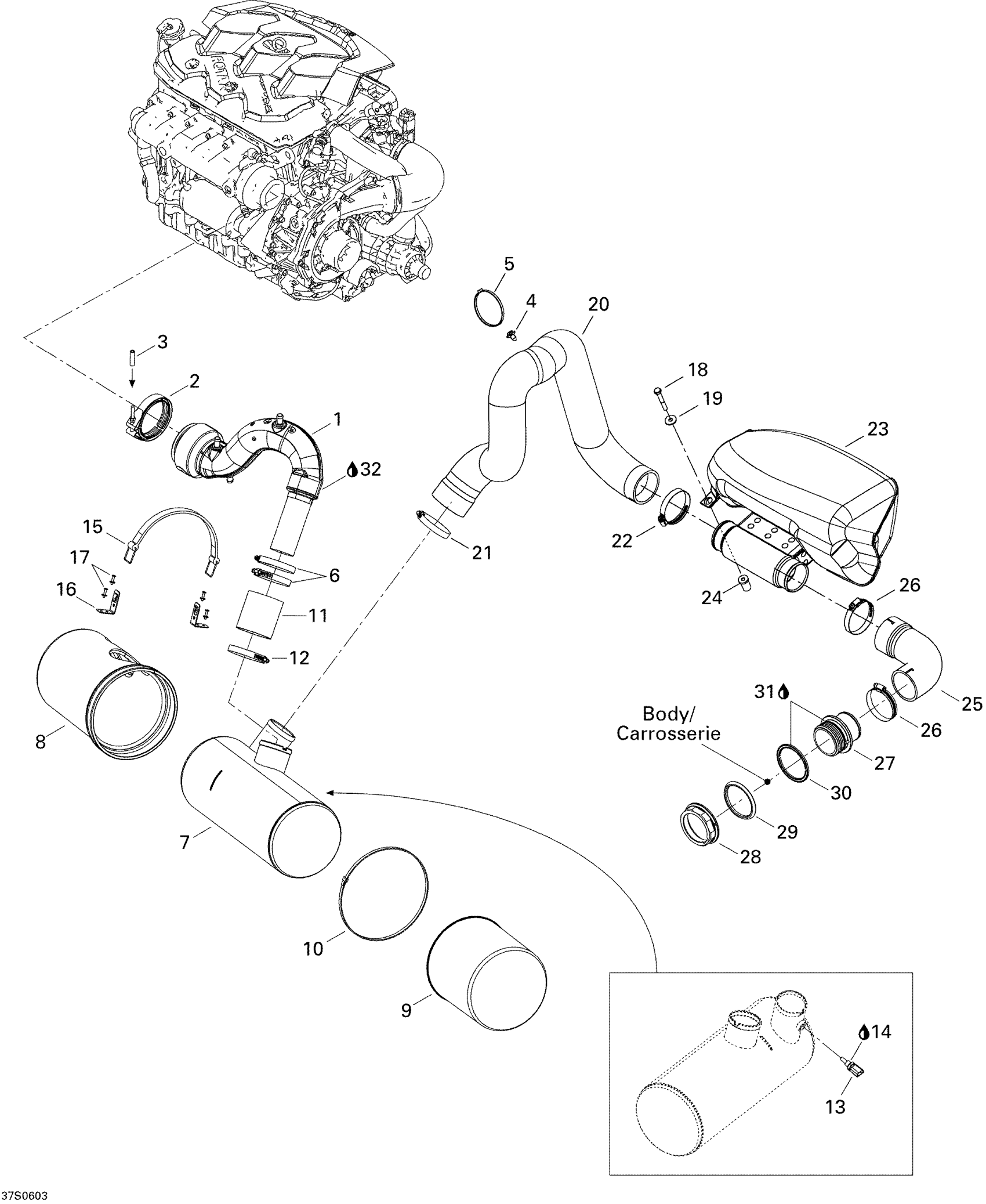

Sea-doo GTX 4-TEC SC, 2006 Exhaust System Diagram

#

Description
Price

1

EXHAUST PIPE - Call your local BRP dealership

274001089

Unavailable

2

Exhaust Clamp This part replaces 274000959.

274001472

Unavailable

3

Polyurethane Hose 10000Mm Long

219704410

Unavailable

4

Mount Dart

293730040

$0.86

5

Tie Wrap 368 mm

293750008

$0.85

6

Tridon Clamp

293650179

Unavailable

7

MUFFLER_EXHAUST - Call your local BRP dealership

274001095

Unavailable

8

Front Muffler Cover

274001008

Unavailable

9

REAR MUFFLER COVER - Call your local BRP dealership

274000984

Unavailable

10

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

11

Exhaust Hose

274001302

Unavailable

12

Tridon Clamp

293650179

Unavailable

13

Temperature Sensor

278002895

$31.82

14

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

15

Fuel Tank Strap

293850036

Unavailable

16

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

17

Pop Rivet 3/16"

293150043

Unavailable

18

Hex. Screw M8 X 40, Scotch Grip

207284060

Unavailable

19

Flat Washer 8 mm, Stainless

234082600

Unavailable

20

Exhaust Hose

274001101

Unavailable

21

Tridon Clamp

293650064

Unavailable

22

Tridon Clamp

293650179

Unavailable

23

RH Resonator

274001045

Unavailable

24

BUSHING - Call your local BRP dealership

278001940

Unavailable

25

REAR EXHAUST HOSE - Call your local BRP dealership

274001428

Unavailable

26

Tridon Clamp

293650064

Unavailable

27

Exhaust Hose, Outlet

274001391

Unavailable

28

Nut 72 mm

274000224

Unavailable

29

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

30

GASKET - Call your local BRP dealership

293250041

Unavailable

31

Silicone Sealant 51388, 300 ml

296000309

Unavailable

32

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable
