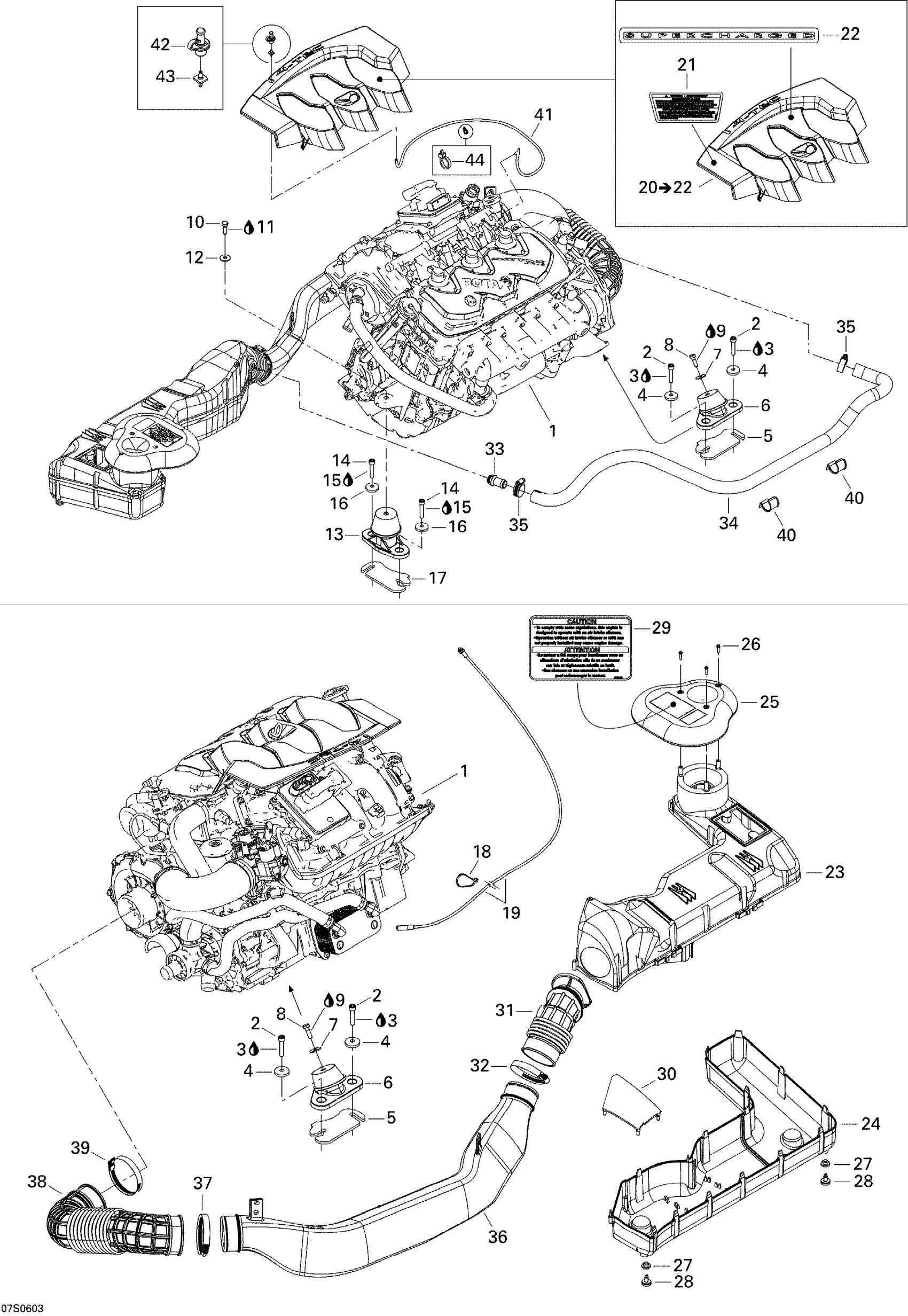

Sea-doo GTX 4-TEC SC, 2006 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Rotax Engine 4 Stokes «1503 Bv»

270000640

Unavailable

2

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

3

Loctite 243, 10 ml

293800060

$20.77

4

Cone Washer

250200018

Unavailable

5

Shim 1.3 mm

270000762

Unavailable

6

Engine Support Ass'y

270001081

Unavailable

7

Flat Washer 8 mm, Stainless

234082600

Unavailable

8

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

9

Loctite 243, 10 ml

293800060

$20.77

10

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

11

Loctite 243, 10 ml

293800060

$20.77

12

Flat Washer 8 mm, Stainless

234082600

Unavailable

13

Engine Support Ass'y

270001096

Unavailable

14

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

15

Loctite 243, 10 ml

293800060

$20.77

16

Cone Washer

250200018

Unavailable

17

Shim 1.3 mm

270000762

Unavailable

18

Tie-Rap 180 mm

414115200

$0.09

19

THROTTLE CABLE - Call your local BRP dealership

277001121

Unavailable

20

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

21

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

22

IDENTIFICATION DECAL, MOTOR BV - Call your local BRP dealership

219902675

Unavailable

23

Upper Air Silencer - Call Your Local BRP Dealership

273000222

Unavailable

24

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

25

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

26

Hex. Flange Screw K40 X 16

241141660

Unavailable

27

GROMMET - Call your local BRP dealership

293720064

Unavailable

28

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

29

Caution Decal, Air Silencer

219902673

Unavailable

30

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

31

INTAKE HOSE - Call your local BRP dealership

273000186

Unavailable

32

Tridon Clamp

293650064

Unavailable

33

Breather Valve

273000234

$10.63

34

FORMED HOSE - Call your local BRP dealership

270000838

$66.89

35

Tridon Gear Clamp

293650051

Unavailable

36

Intake Hose

273000214

Unavailable

37

Tridon Clamp

293650179

Unavailable

38

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

39

Tridon Clamp

293650179

Unavailable

40

Retainer

275500664

Unavailable

41

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

42

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

43

CONNECTOR - Call your local BRP dealership

293710107

Unavailable

44

Tie Wrap 94 mm | 4X4

293750001

$0.83
