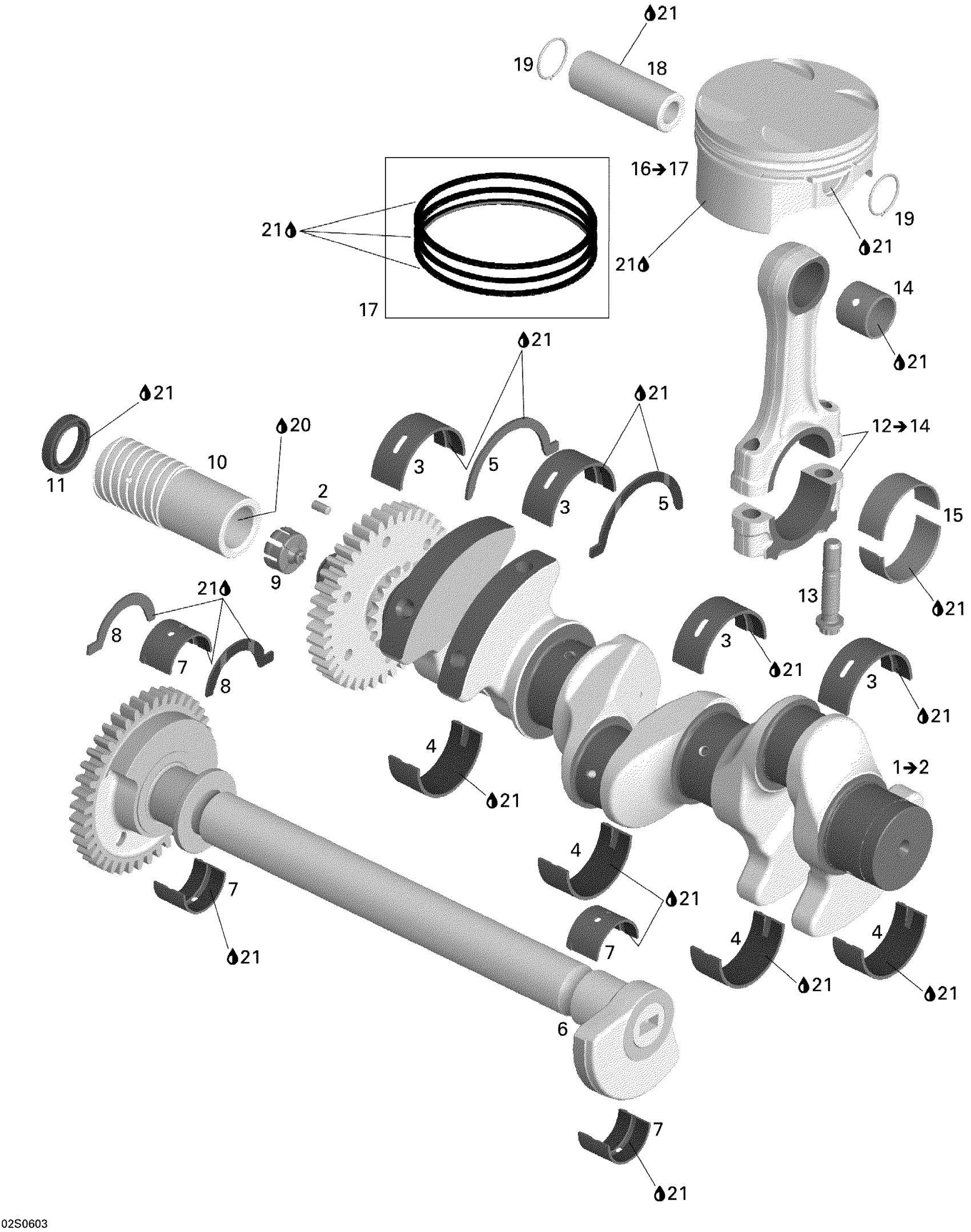

Sea-doo GTX 4-TEC SC, 2006 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 2

420819348

$1,011.49

2

Drive Pin 5 X 10

420929650

$1.54

3

Plain Half-Bearing

420933456

$13.90

4

Plain Half-Bearing

420933466

$13.90

5

Half-Ring

420933475

$10.76

6

Balance Shaft Ass'Y This part replaces 420837556.

420837559

$579.07

7

Plain Bearing Half

420933442

$17.13

8

Half-Ring

420933470

$7.01

9

Stop Sleeve

420660280

$12.52

10

Output Sleeve This part replaces 420847952.

420947770

$112.66

11

Sealing Ring

420630551

$14.10

12

Connecting Rod Ass'y | Includes 12 to 14 This part replaces 420917516.

420917516

Unavailable

13

Connecting rod Screw M10 X 1

420640991

$10.76

14

Bearing Sleeve

420933510

$11.91

15

Half-Bearing

420933523

$16.39

16

PISTON ASS'Y, 99.96 MM - Call your local BRP dealership | Starting from engine M6059519, Traxter 650 CVT, Includes 4 To 5

420890082

Unavailable

16

OVERSIZE PISTON ASS'Y 100,21 MM - Call your local BRP dealership | Includes 16 to 17

420890083

Unavailable

17

PISTON RING SET - Call your local BRP dealership | Starting from engine M6059519, Traxter 650 CVT

420891124

Unavailable

17

PISTON SET RING, OVERSIZE - Call your local BRP dealership

420891128

Unavailable

18

Piston Pin

420216250

$24.46

19

Circlip

420845580

$2.45

20

Sealant Loctite 648

219703000

$41.01

21

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
