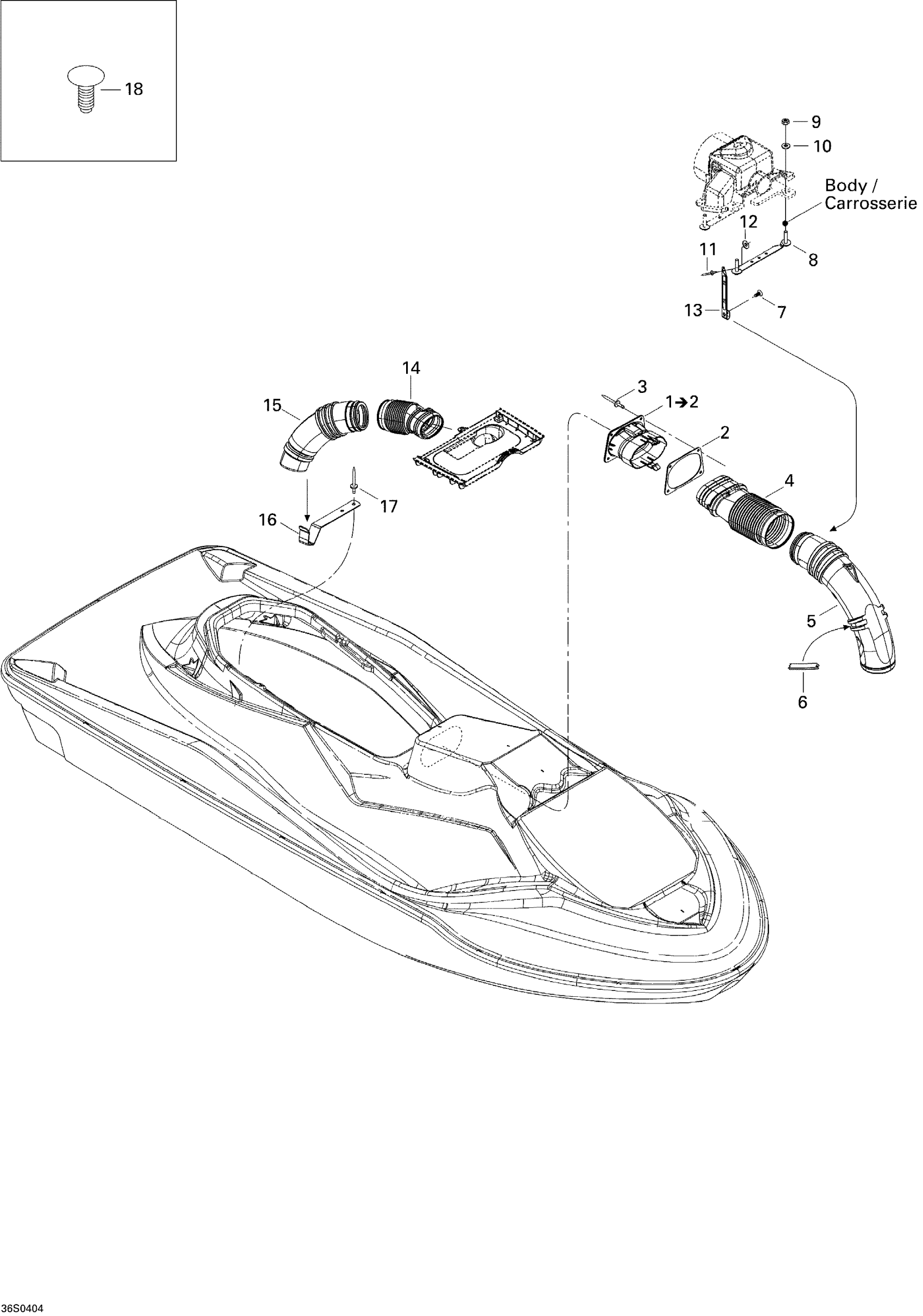

Sea-doo GTX 4-TEC, LTD Supercharged, 2004 09- Ventilation Diagram

Front Air Collector Ass'y

291001717

Unavailable

FRONT AIR COLLECTOR ASS'Y - Call your local BRP dealership | Includes 1 to 2

291002547

Unavailable

Avdel Rivet 3/16"

293150037

$0.56

FLEXIBLE HOSE - Call your local BRP dealership

291001746

Unavailable

Vent Hose

291001689

Unavailable

Neoprene Seal (1PAC=3M)

219704364

$27.49

Black Dart

293730010

$0.99

STEERING SUPPORT - Call your local BRP dealership

277001072

Unavailable

Hex. Elastic Nut M8

232581600

$1.48

Stainless, Flat Washer 8 mm

234081600

$0.55

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

Flat Washer M3, Stainless

234032600

$0.55

HOSE SUPPORT - Call your local BRP dealership

291001886

Unavailable

Flexible Hose

291001748

Unavailable

Vent Hose

291001601

Unavailable

HOSE SUPPORT - Call your local BRP dealership

291002627

Unavailable

Avdel Rivet 3/16"

293150037

$0.56

Dart, Fastex

293730024

$1.39
