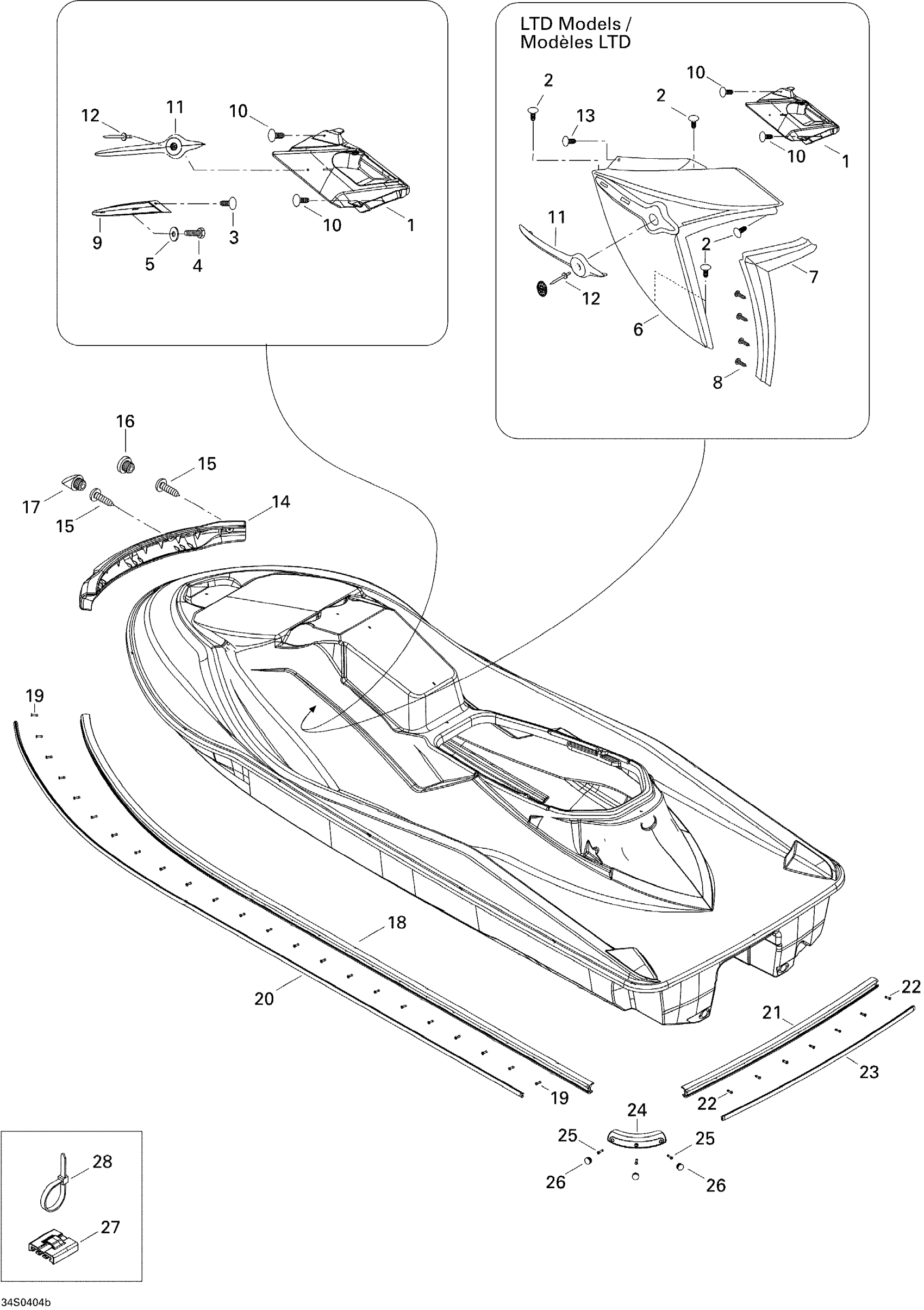

Sea-doo GTX 4-TEC, LTD Supercharged, 2004 09- Body 2 Diagram
#
1
RH GRILL, BLACK - Call your local BRP dealership | WAKE
269500931
Unavailable
RH Grille, Grey | LTD Models
269501217
Unavailable
LH GRILL, BLACK - Call your local BRP dealership | WAKE
269500932
Unavailable
LH Grille, Grey | LTD Models
269501218
Unavailable
2
Dart, Black
293730004
Unavailable
3
Black Dart
293730010
$0.99
4
Hex. Flange Screw K40 X 16
241141660
$1.48
5
Flat Washer 5 mm, Stainless
234052600
$0.77
6
Splashguard RH (Blue Pearl) | LTD Models
291001964
Unavailable
Splashguard LH (Blue Pearl) | LTD Models
291001966
Unavailable
7
RH Moulding
291001784
Unavailable
LH Moulding
291001785
Unavailable
8
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
209641960
Unavailable
9
RH INSERT - Call your local BRP dealership | WAKE
293450223
Unavailable
LH INSERT - Call your local BRP dealership | WAKE
293450224
Unavailable
10
Black, Dart
293730006
$0.99
11
FINITION PLATE - Call your local BRP dealership
269500716
Unavailable
12
Pop Rivet 3/16"
293150008
$0.50
13
Black Dart
293730010
$0.99
14
BUMPER NOSE, BLACK - Call your local BRP dealership
291001942
Unavailable
Bumper Nose (Sand Grey) | LTD Models
291001967
Unavailable
15
Plastite Torx Screw #10 X 7/8"
250000207
$2.00
16
Bumper Plug, Black
291001519
$5.49
BUMPER PLUG (SAND GREY) - Call your local BRP dealership | LTD Models
291001969
Unavailable
17
Bumper Plug, Black
291001040
$7.39
BUMPER PLUG (SAND GREY) - Call your local BRP dealership | LTD Models
291001970
Unavailable
18
Black, Side Bumper
204050270
$179.99
Black, Side Bumper
204050270
$179.99
19
Pop Rivet 3/16"
293150005
$0.52
20
SIDE BUMPER TRIM - Call your local BRP dealership
291001840
Unavailable
SIDE BUMPER TRIM, BLUE PEARL - Call your local BRP dealership | STD
291001972
Unavailable
21
REAR BUMPER, BLACK - Call your local BRP dealership
291002242
Unavailable
Rear Bumper (Sand Grey) | LTD Models
291001973
Unavailable
22
Pop Rivet 3/16"
293150005
$0.52
23
SIDE BUMPER TRIM - Call your local BRP dealership
291001840
Unavailable
REAR BUMPER TRIM, BLUE PEARL - Call your local BRP dealership | STD
291001974
Unavailable
24
Bumper Corner
291002244
$48.99
Bumper Corner
291002244
$48.99
25
Pop Rivet 3/16"
293150013
$1.37
26
Bumper Plug, Black
291000339
$2.99
BUMPER PLUG (SAND GREY) - Call your local BRP dealership | LTD Models
291001981
Unavailable
27
Tie-Rap Mount
293750025
$1.25
28
Tie-Rap 180 mm
414115200
$0.11
Tie Wrap 368 mm
293750008
$1.04
