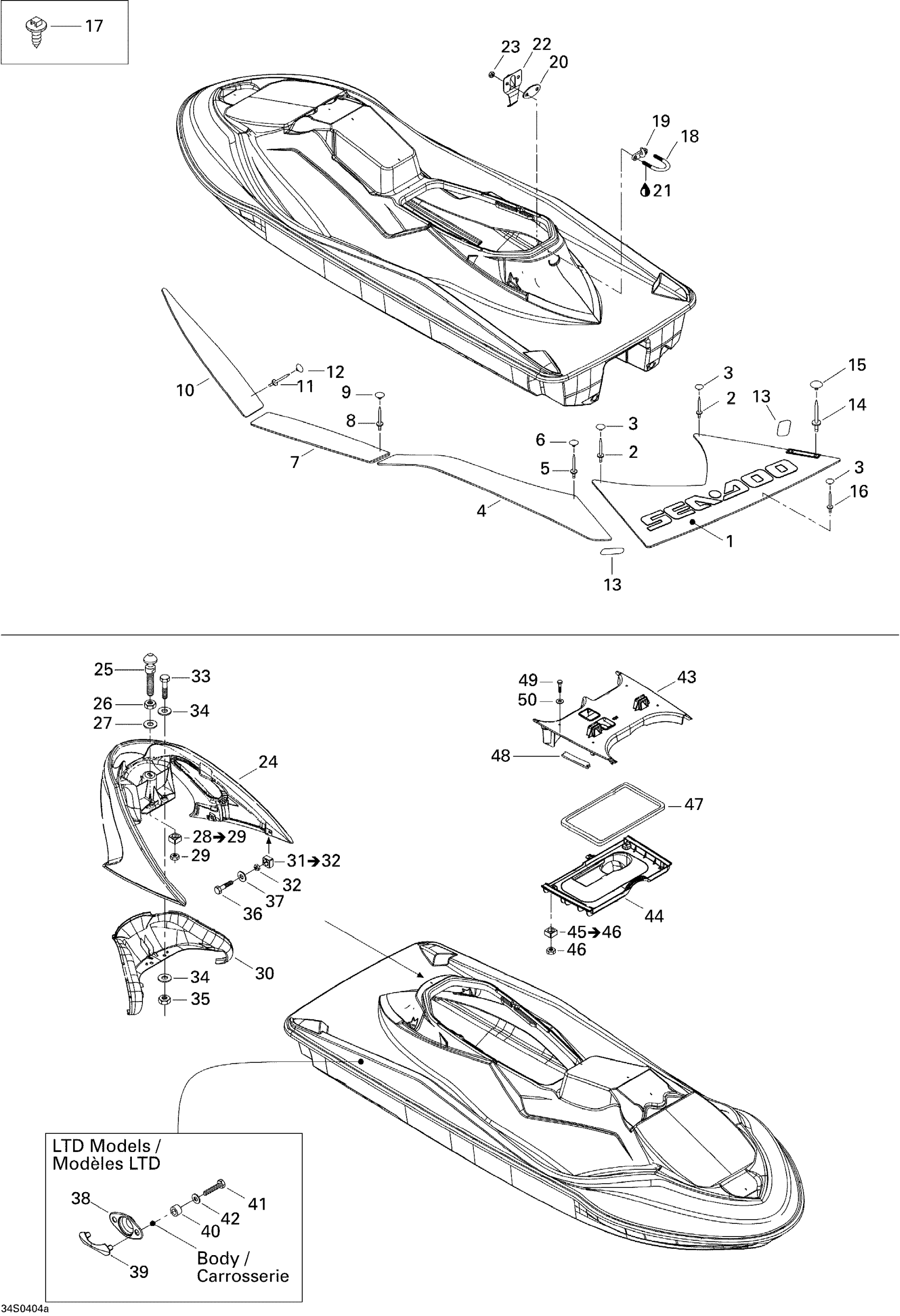

Sea-doo GTX 4-TEC, LTD Supercharged, 2004 09- Body 1 Diagram
#
1
Rear Carpet, Gray-Silver | LTD Models
291001985
Unavailable
Rear Carpet, Black | STD
291001905
Unavailable
2
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
3
Snap Cap, Grey | LTD Models
291001824
Unavailable
Black, Snap Cap
293000014
$1.09
4
RH Center Rear Carpet, Grey | LTD Models
291001825
Unavailable
RH Center Rear Carpet, Black
291001906
Unavailable
LH Center Rear Carpet, Grey | LTD Models
291001826
Unavailable
LH Center Rear Carpet, Black
291001907
Unavailable
5
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
6
Snap Cap, Grey | LTD Models
291001824
Unavailable
Black, Snap Cap
293000014
$1.09
7
RH Center Front Carpet, Grey | LTD Models
291001827
Unavailable
RH Center Front Carpet, Black
291001908
Unavailable
LH Center Front Carpet, Grey | LTD Models
291001828
Unavailable
LH Center Front Carpet, Black
291001909
Unavailable
8
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
9
Snap Cap, Grey | LTD Models
291001824
Unavailable
Black, Snap Cap
293000014
$1.09
10
RH Front Carpet, Grey | LTD Models
291001829
Unavailable
RH Front Carpet, Black
291001910
Unavailable
LH Front Carpet, Grey | LTD Models
291001830
Unavailable
LH Front Carpet, Black
291001911
Unavailable
11
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
12
Snap Cap, Grey | LTD Models
291001824
Unavailable
Black, Snap Cap
293000014
$1.09
13
RH ANTI-SKID - Call your local BRP dealership
291001758
Unavailable
LH Anti-Skid
291001759
Unavailable
14
Rivet 1/8"
293150016
$0.40
15
Black, Snap Cap
293000014
$1.09
16
Pop Rivet 1/8”
293150015
$0.40
17
Mount Dart
293730040
$1.04
18
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
19
Hook | Package LTD
291002351
$69.99
20
Black, Finition Plate
291001386
$10.99
Finition Plate, Grey | LTD Models
291001837
Unavailable
21
Silicone Sealant 51388, 300 ml
296000309
$36.99
22
Retainer Plate
291001747
Unavailable
23
Hex. Elastic Nut M8
232581600
$1.48
24
GRAB HANDLE, BLACK - Call your local BRP dealership
269000722
Unavailable
Grab Handle, Grey | LTD Models
269000842
Unavailable
25
SEAT STUD - Call your local BRP dealership
291000945
Unavailable
26
Hex. Jam Nut M10
232100600
$2.22
27
Flat Washer 10 mm, Stainless
234002600
$2.22
28
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
29
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
30
HANDLE COVER, BLACK - Call your local BRP dealership
269000749
Unavailable
Handle Cover, Grey | LTD Models
269000843
Unavailable
31
M6 Nut Housing Ass'y | Includes 7r to 7r2
269500725
$4.55
32
Hex. Elastic Stop Nut M6
232561600
$1.15
33
Hex. Screw M8 X 45
207084560
$3.38
34
Stainless, Flat Washer 8 mm
234081600
$0.55
35
Hex. Elastic Nut M8
232581600
$1.48
36
Hex. Screw M6 X 25
207162560
$1.47
37
Flat Washer M6, Stainless
234062600
$0.77
38
Hook Cargo Base | LTD Models
291001885
Unavailable
39
HOOK CARGO CLEATS - Call your local BRP dealership
291001196
Unavailable
40
Spacer
291001203
$13.49
41
Hex. Screw M5 X 16, Scotch Grip
207351660
$0.83
42
Flat Washer 5 mm, Stainless
234052600
$0.77
43
Upper Bridge, Black
291001602
Unavailable
44
Lower Bridge, Black
291001599
Unavailable
45
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
46
Elastic Stop Nut M6, Brass
232561200
$4.23
47
GASKET - Call your local BRP dealership
293200090
Unavailable
48
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
49
Hex. Screw M6 X 75
207167560
Unavailable
50
Flat Washer M6, Stainless
234062600
$0.77
