- GTX 4-TEC, LTD Supercharged, 2004
07- Off Power Assisted Steering

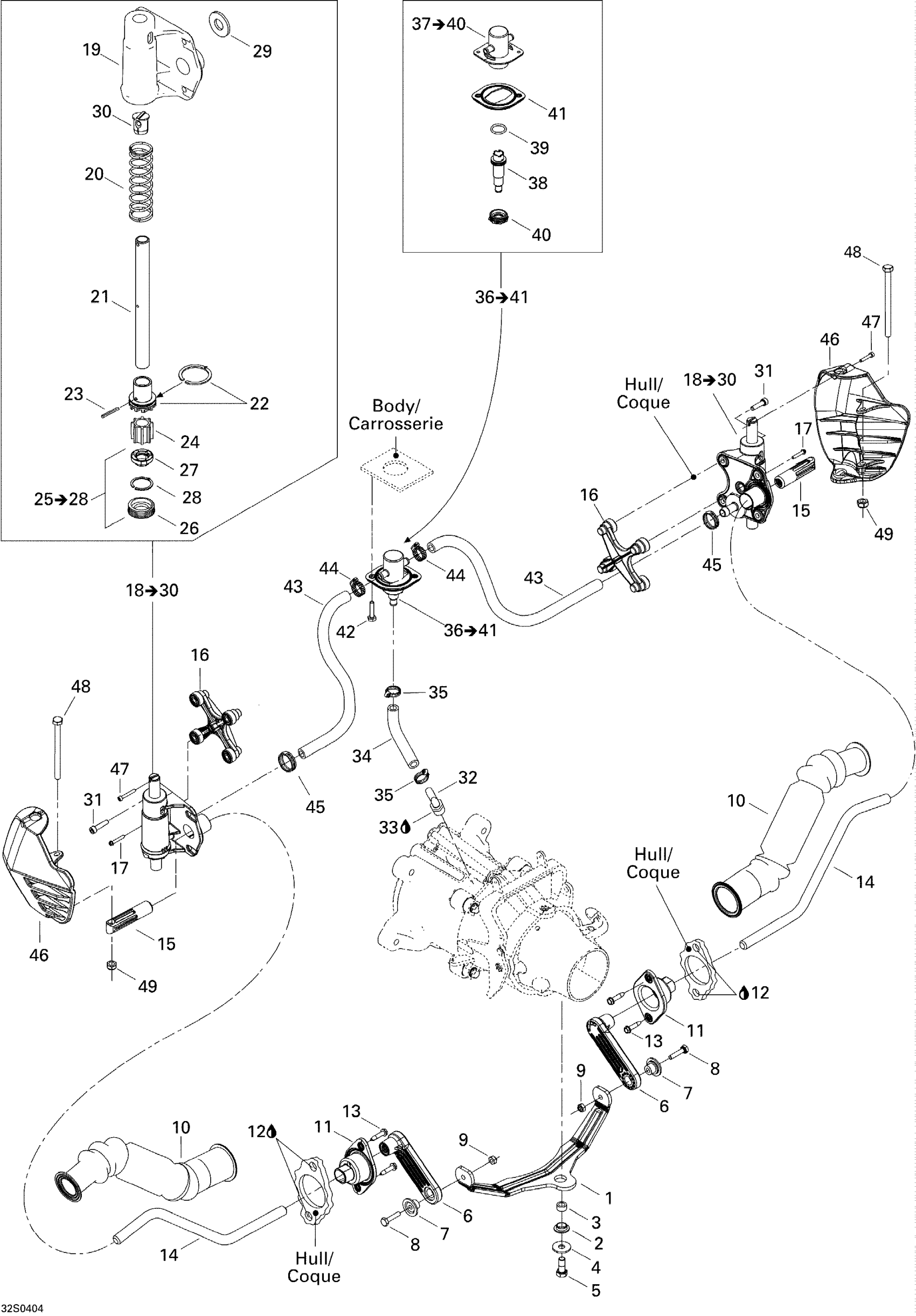

Sea-doo GTX 4-TEC, LTD Supercharged, 2004 07- Off Power Assisted Steering Diagram
#
1
U LEVER - Call your local BRP dealership
277000979
Unavailable
2
Venturi Bushing
271000321
$8.69
3
Bushing
277000980
$15.99
4
Flat Washer 8 mm, Stainless
234082600
$2.43
5
Hex. Screw M8 X 20, Scotch Grip
250000150
Unavailable
6
LEVER - Call your local BRP dealership
265000013
Unavailable
7
FLANGED BUSHING - Call your local BRP dealership
293900042
Unavailable
8
Hex. Screw M6 X 25
207162560
$1.47
9
Hex. Elastic Stop Nut M6
232561600
$1.15
10
Seal Tube
277001123
$45.99
11
ROD GROMMET - Call your local BRP dealership
277001164
Unavailable
12
Silicone Sealant 51388, 300 ml
296000309
$36.99
13
Hex. Screw 10-14 X 7/8”
211000023
$3.59
14
LH TIE ROD - Call your local BRP dealership
277000976
Unavailable
RH TIE ROD - Call your local BRP dealership
277001063
Unavailable
15
FITTING STABILISATOR - Call your local BRP dealership
265000014
Unavailable
16
SUPPORT PLATE ASS'Y - Call your local BRP dealership
277001177
Unavailable
17
Hex. Flange Screw K40 X 25
241142560
$2.64
18
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
19
LH Cylinder Support
265000016
Unavailable
RH CYLINDER SUPPORT - Call your local BRP dealership
265000036
Unavailable
20
SPRING - Call your local BRP dealership
277000962
Unavailable
21
Pivot Rod
277001091
$56.99
22
PISTON ASSY - Call your local BRP dealership
277001080
Unavailable
23
Spring Pin
250400014
$3.28
24
SPACER - Call your local BRP dealership
277001168
Unavailable
25
COVER ASS?Y - Call your local BRP dealership | Includes 25 to 27
265000008
Unavailable
26
Threaded Cover
265000009
Unavailable
27
WEAR RING - Call your local BRP dealership
277000985
Unavailable
28
Split Ring
277000986
Unavailable
29
SEAL - Call your local BRP dealership
293250119
Unavailable
30
LOCKING INSERT - Call your local BRP dealership
277001185
Unavailable
31
Socket Head Screw M6 X 25, Scotch Grip
205562560
$2.11
32
ELBOW ASSY - Call your local BRP dealership
271001298
Unavailable
33
Was 293800018 Loctite 592, 50 ml | Package T
219704455
$33.99
34
Formed Hose
276000101
Unavailable
35
Norma Clamp
293650080
Unavailable
36
VALVE ASSY - Call your local BRP dealership | Includes 35 to 40
277001178
Unavailable
37
Valve Housing
277000999
Unavailable
38
Not Available As Spare Part - Friction Washer
Unavailable
39
O-Ring
414542700
Unavailable
40
Threaded Cover
277000967
Unavailable
41
Seal
293250144
Unavailable
42
Hex. Screw 10-14 X 7/8”
211000023
$3.59
43
Was 276000001 Hose 12.5 mm
219704394
$51.99
44
Tridon Gear Clamp
293650172
$3.09
45
OETIKER CLAMP - Call your local BRP dealership
293650123
Unavailable
46
LH SIDE VANE - Call your local BRP dealership
277001486
Unavailable
RH Side Vane
277001487
$51.99
47
Socket Head Screw M4 X 25
205042560
$2.22
48
HEX. SCREW M8 X 110 - Call your local BRP dealership
250000077
Unavailable
49
Hex. Elastic Nut M8
232581600
$1.48
