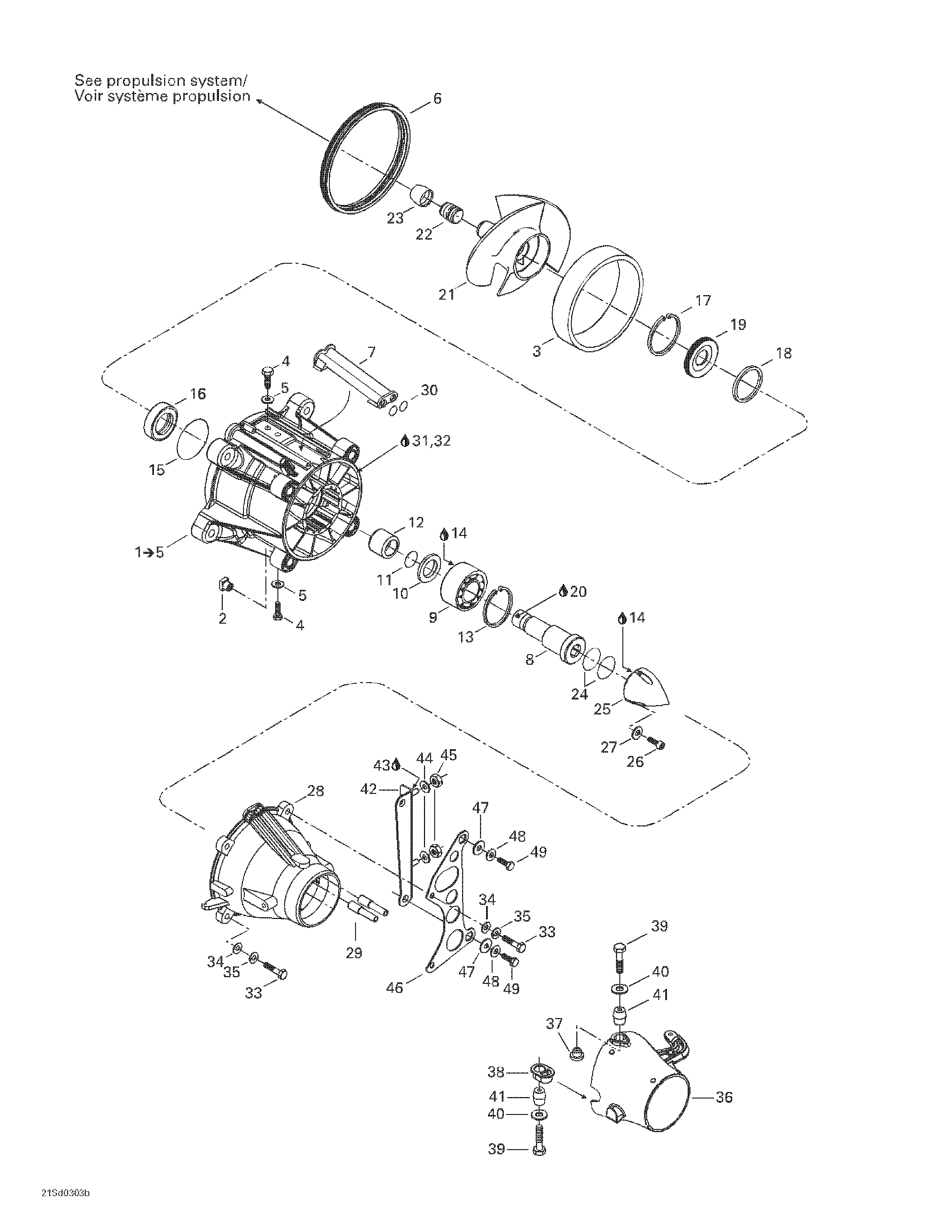

Sea-doo GTX 4-TEC, LTD Supercharged, 2003 Pump System Diagram

#

Description
Price

1

IMPELER HOUSING ASS?Y - Call your local BRP dealership | Includes 1 to 3

267000037

Unavailable

2

Square Nut M8

211100033

$16.39

3

Wear Ring

271000653

$54.45

4

Hex. Plastite Screw #10 X 3/8"

250000040

$0.93

5

Flat Washer M5, Stainless

234051600

$0.73

6

Neoprene Seal

293200087

$10.55

7

Water Outlet

271000785

$3.49

8

Impeller Shaft

271001263

$108.18

9

Angle Bearing

293350042

$85.04

10

SPACER - Call your local BRP dealership

271001264

Unavailable

11

O-Ring

293300079

$6.13

12

SHAFT SLEEVE - Call your local BRP dealership

271001406

Unavailable

13

CIRCLIP - Call your local BRP dealership

293370024

Unavailable

14

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

15

O-Ring

293300090

$6.85

16

Seal

271002071

$30.57

17

Circlip

293370038

$8.18

18

Spacer

271001393

$7.03

19

Oil Seal

293200089

$17.88

20

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

21

Impeller Ass'y This part replaces 267000119.

267000712

$364.15

22

IMPELLER BOOT - Call your local BRP dealership

271001152

Unavailable

23

IMPELLER RING - Call your local BRP dealership

271001153

Unavailable

24

O-Ring

293300086

$3.33

25

Impeller Cover

267000262

$19.37

26

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.72

27

Stainless Flat Washer M6

234061600

$0.28

28

Venturi, Black

271001411

Unavailable

29

Siphon Tube

271001133

$8.09

30

O-Ring

293300013

$6.54

31

Was 293800041 Loctite Primer 7649

219704458

$41.99

32

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

33

Hex. Screw M8 X 50, Scotch Grip

207285060

$1.96

34

Stainless, Flat Washer 8 mm

234081600

$0.52

35

Lock Washer 8 mm, Stainless

234181601

$0.52

36

Steering Nozzle

271001311

Unavailable

37

Venturi Bushing

293900001

$7.04

38

Plastic Bushing

293900010

$8.21

39

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

40

Flat Washer M8.5 x 18

293050001

$1.48

41

Sleeve

271001816

$13.30

42

Bracket

267000015

Unavailable

43

Silicone Sealant 51388, 300 ml

296000309

$36.99

44

Flat Washer 8 mm, Stainless

234082600

$2.27

45

Hex. Elastic Nut M8

232581600

$1.43

46

Support

267000017

Unavailable

47

Flat Washer 8 mm, Stainless

234082600

$2.27

48

Flat Washer M8.5 x 18

293050001

$1.48

49

Hex. Screw M8 X 20, Scotch Grip

250000150

Unavailable
