Description

Price

1

Engine Wiring Harness Ass'y | Includes 1 to 17

420664951

Unavailable

2

Male Connector, 2 Circuits

278001003

$46.49

3

ECM Connector

420664450

$27.49

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Housing Connector, 3 Circuits

278001829

$21.99

6

Housing Connector, 3 Circuits

278001830

$35.99

7

Male Housing, 1 Circuit

278001012

$16.86

8

Female Terminal Housing, 2 Circuits

415128500

$7.62

9

Female Terminal Housing, 2 Circuits

415128500

$7.62

10

Female Housing, 4 Circuits

278000635

$16.49

11

Connector, Magneto

278001831

Unavailable

12

Male Housing, 2 Circuits

278001005

$19.49

13

CONNECTOR 3 POSITIONS - Call your local BRP dealership

420964100

Unavailable

14

Male Housing, 3 Circuits

278000997

$19.49

15

Connector, Idle Bypass Valve

278001833

Unavailable

16

Female Terminal Housing, 2 Circuits

415128500

$7.62

17

Male Housing, 2 Circuits

278001005

$19.49

18

Tie Rap

420866714

$1.90

19

Tie-Rap

420866716

$1.90

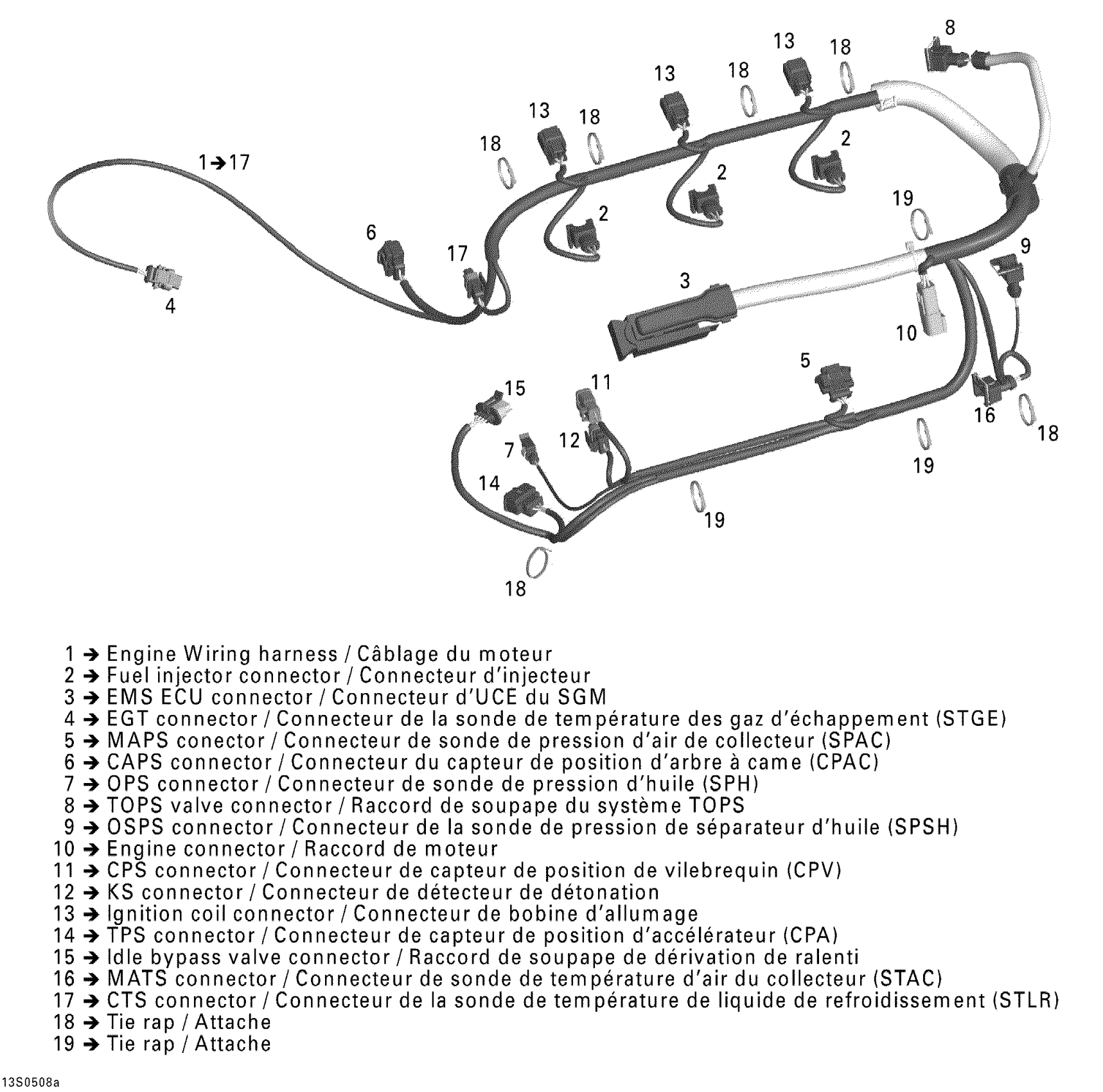

Sea-doo GTX 4-TEC, LTD SCIC, 2005 10- Engine Harness Diagram

Engine Wiring Harness Ass'y | Includes 1 to 17

Male Connector, 2 Circuits

ECM Connector

Not Available As Spare Part - Friction Washer

Housing Connector, 3 Circuits

Housing Connector, 3 Circuits

Male Housing, 1 Circuit

Female Terminal Housing, 2 Circuits

Female Terminal Housing, 2 Circuits

Female Housing, 4 Circuits

Connector, Magneto

Male Housing, 2 Circuits

CONNECTOR 3 POSITIONS - Call your local BRP dealership

Male Housing, 3 Circuits

Connector, Idle Bypass Valve

Female Terminal Housing, 2 Circuits

Male Housing, 2 Circuits

Tie Rap

Tie-Rap
