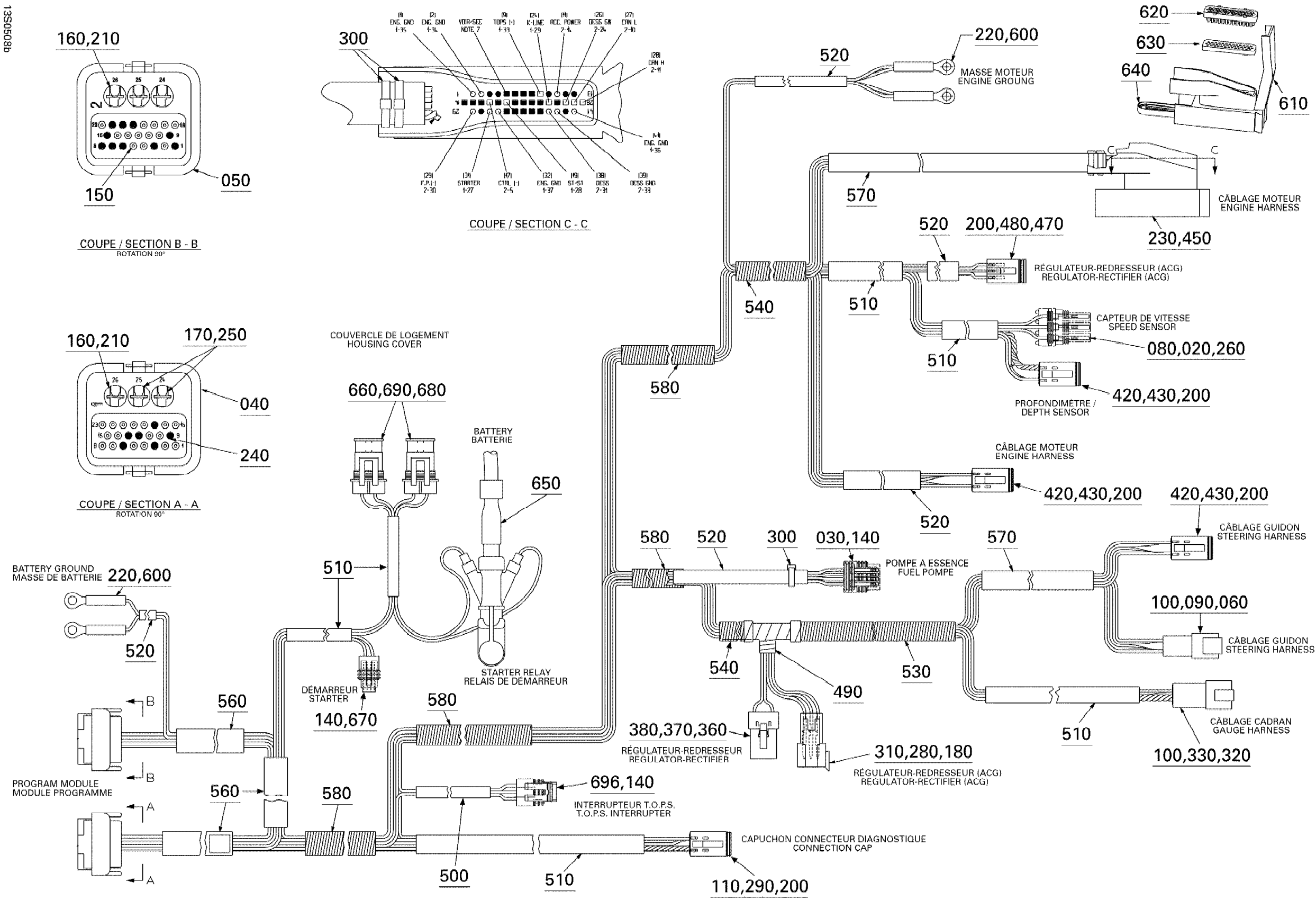

Sea-doo GTX 4-TEC, LTD SCIC, 2005 Electrical Harness 2 Diagram

#

Description
Price

001

Main Harness Ass'y | Includes 1 to 700

278002002

Unavailable

020

Female Terminal

278000223

$3.19

030

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

040

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

050

Male Terminal Housing, 26 Circuits

278001062

Unavailable

060

Male Terminal Housing, 6 Circuits

710001539

$19.99

080

Male Housing, 3 Circuits

278000273

$9.59

090

Female Lock, 6 Circuits

278000735

$3.19

100

Male Terminal

278000631

$4.39

110

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

130

FEMALE TERMINAL - Call your local BRP dealership

278001276

Unavailable

140

Female Terminal

278001114

$3.19

150

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

160

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

170

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

180

Male Terminal

515175823

$4.55

200

Female Terminal

278000632

$2.09

210

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

220

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

230

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

240

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

250

Seal

278001223

Unavailable

260

Wire Seal

278000218

$4.39

280

Male Lock, 3 Circuits

409207600

$3.19

290

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

300

Tie Wrap 142 mm

293750002

$1.25

310

Male Housing

278002378

$13.99

320

Female Housing, 4 Circuits

278000635

$16.49

330

Female Wedge, 4 Circuits

278000636

$4.39

360

Female Terminal Housing, 2 Circuits

278001673

$23.49

370

Female Lock, 2 Circuits

278001671

$3.58

380

FEMALE TERMINAL - Call your local BRP dealership

515175260

Unavailable

420

Male Connector, 4 Circuits | CE

278000739

$19.49

430

Male Lock, 4 Circuits | CE

278000738

$3.09

450

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

460

Male Connector, 2 Circuits

278000220

$15.49

470

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

480

Female Lock

409207200

$4.39

490

Not Available As Spare Part - Friction Washer

Unavailable

500

Not Available As Spare Part - Friction Washer

Unavailable

510

Not Available As Spare Part - Friction Washer

Unavailable

520

Not Available As Spare Part - Friction Washer

Unavailable

530

Not Available As Spare Part - Friction Washer

Unavailable

540

Not Available As Spare Part - Friction Washer

Unavailable

560

Not Available As Spare Part - Friction Washer

Unavailable

570

Not Available As Spare Part - Friction Washer

Unavailable

580

Not Available As Spare Part - Friction Washer

Unavailable

600

Not Available As Spare Part - Friction Washer

Unavailable

610

Not Available As Spare Part - Friction Washer

Unavailable

620

Not Available As Spare Part - Friction Washer

Unavailable

630

Not Available As Spare Part - Friction Washer

Unavailable

640

Not Available As Spare Part - Friction Washer

Unavailable

650

Battery Cable

278002058

Unavailable

660

Fuse, 30 Amperes

410917200

$3.28

670

Male Connector, 2 Circuits

278001113

$16.86

680

Fuse Holder

278001325

$8.79

690

Female Terminal

710000357

$7.69

696

Connector, 3 Circuits

278002064

$25.99

700

BUS CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278001892

Unavailable
