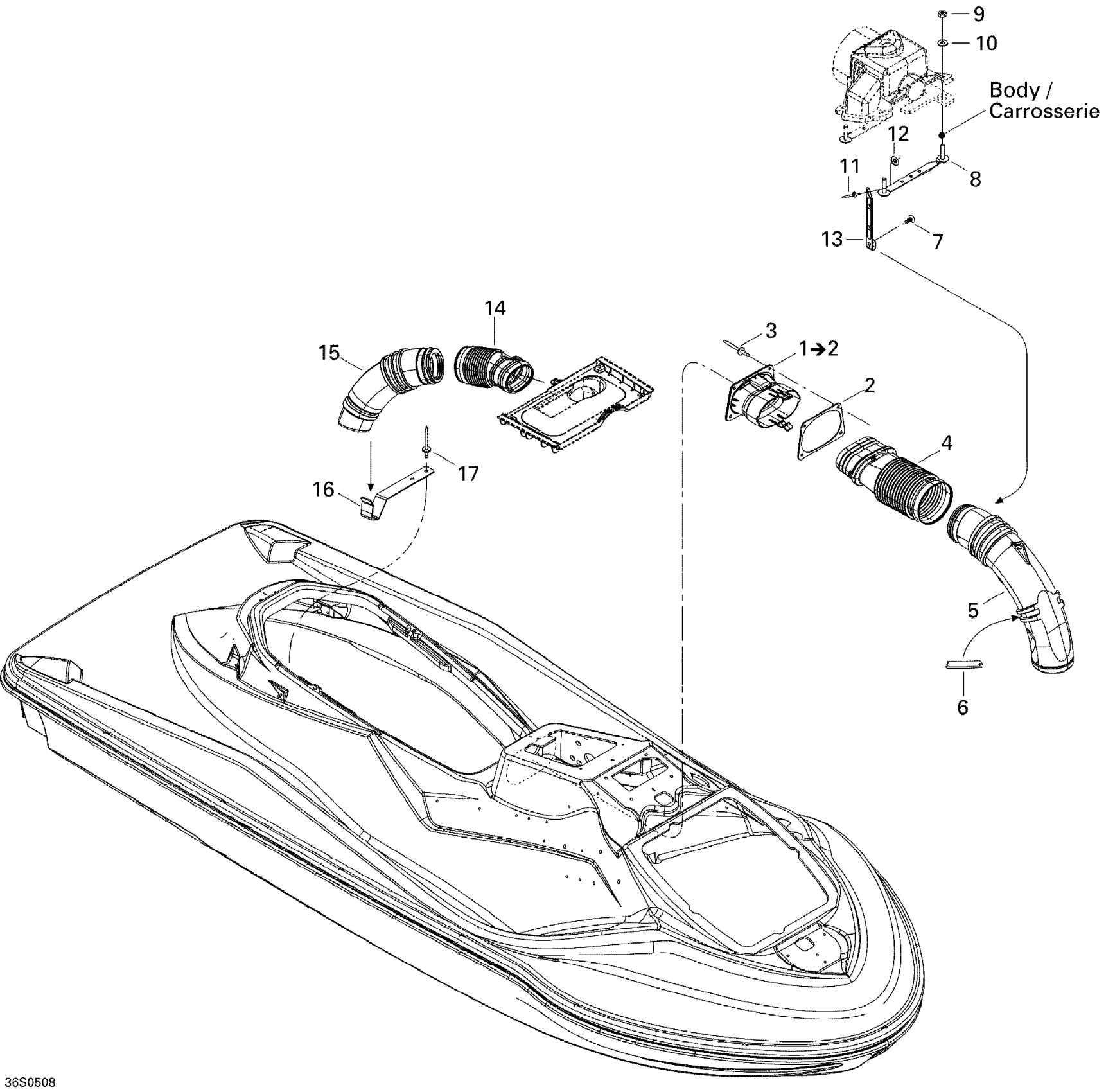

Sea-doo GTX 4-TEC, LTD SCIC, 2005 Ventilation Diagram

#

Description
Price

1

Front Air Collector Ass'y

291001717

Unavailable

2

FRONT AIR COLLECTOR ASS'Y - Call your local BRP dealership | Includes 1 to 2

291002547

$18.43

3

Pop Rivet 3/16"

293150005

$0.40

4

FLEXIBLE HOSE - Call your local BRP dealership

291001746

$32.28

5

Vent Hose

291001689

Unavailable

6

Neoprene Seal (1PAC=3M)

219704364

$22.72

7

Black Dart

293730010

$0.81

8

STEERING SUPPORT - Call your local BRP dealership

277001072

Unavailable

9

Hex. Elastic Nut M8

232581600

$1.25

10

Stainless, Flat Washer 8 mm

234081600

$0.46

11

RIVET_POP 1/8 - Call your local BRP dealership

293150026

$0.29

12

Flat Washer M3, Stainless

234032600

$0.54

13

HOSE SUPPORT - Call your local BRP dealership

291001886

$10.74

14

Flexible Hose

291001748

Unavailable

15

Vent Hose

291001601

$77.66

16

HOSE SUPPORT - Call your local BRP dealership

291002627

Unavailable

17

Avdel Rivet 3/16"

293150037

$0.47
