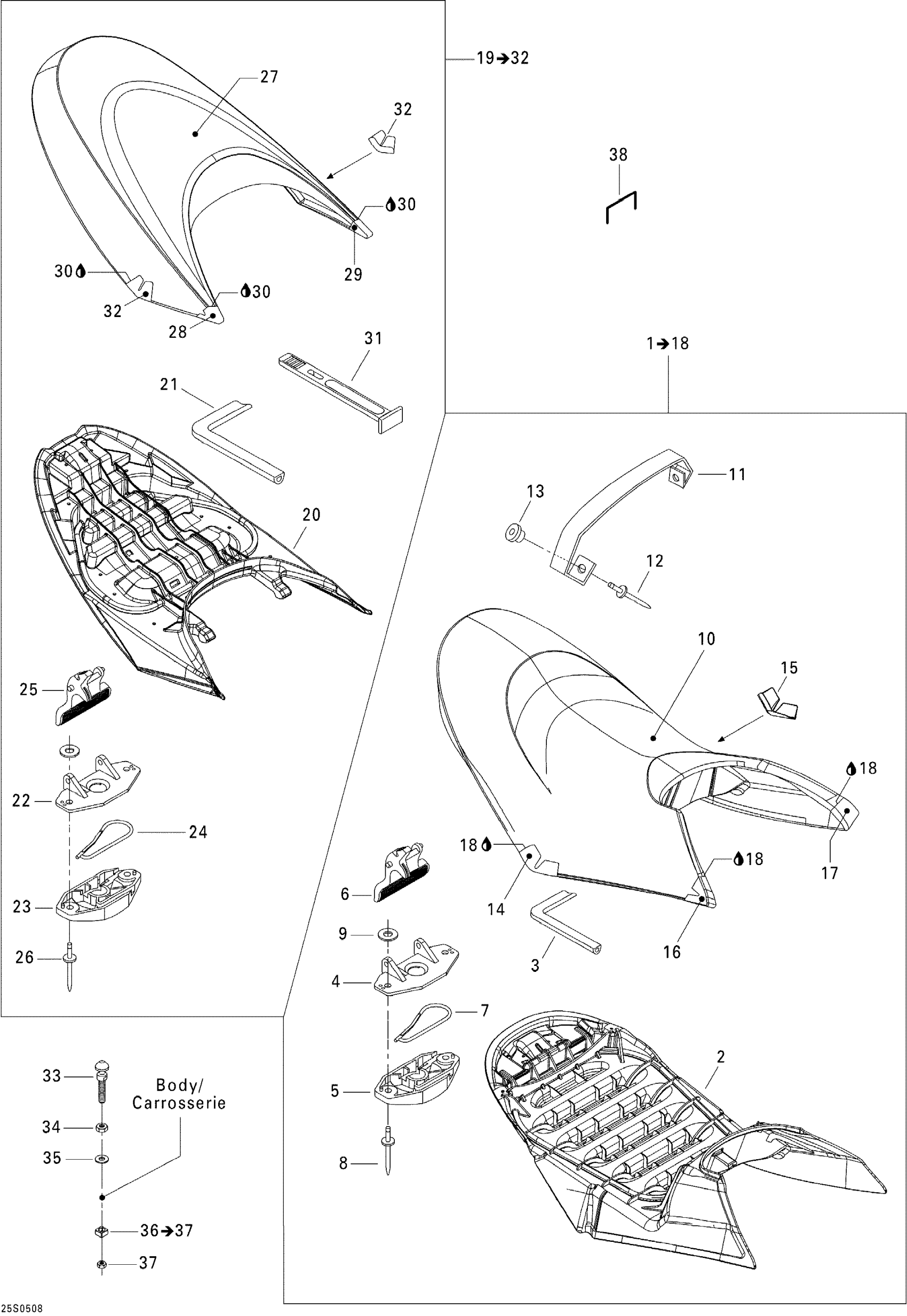

Sea-doo GTX 4-TEC, LTD SCIC, 2005 09- Seat Diagram
#
Description
Price
1
Front Seat Ass'y, Slate Grey | Includes 1 to 12, Black Perle
269001180
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Was 293200062 Seal
219704366
$76.49
4
Latch Ass'y
269700109
$24.99
5
Latch Ass'y
269700109
$24.99
6
Latch Ass'y
269700109
$24.99
7
Latch Spring
269700017
$9.19
8
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
9
Stainless Flat Washer M6
234061600
$0.33
10
Not Available As Spare Part - Friction Washer
Unavailable
11
SEAT STRAP, SLATE GREY - Call your local BRP dealership | Black Perle
269001183
Unavailable
12
RIVET_POP 1/4 X ,725 - Call your local BRP dealership
293150078
Unavailable
13
Grommet
293720067
$12.99
14
RH Seat Corner, Slate Grey
269001184
Unavailable
15
LH Seat Corner, Slate Grey
269001185
Unavailable
16
RH Front Seat Corner, Slate Grey
269001186
Unavailable
17
LH Front Seat Corner, Slate Grey
269001187
Unavailable
18
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
19
Rear Seat Ass'y, Slate Grey | Includes 13 to 21, Black Perle
269001181
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Was 293200062 Seal
219704366
$76.49
22
Latch Ass'y
269700109
$24.99
23
Latch Ass'y
269700109
$24.99
24
Latch Ass'y
269700109
$24.99
25
Latch Spring
269700017
$9.19
26
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
RH Seat Corner, Slate Grey
269001189
Unavailable
29
LH Seat Corner, Slate Grey
269001190
Unavailable
30
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
31
Strap
269502417
$17.69
32
Seat Corner, Slate Grey
269001192
Unavailable
33
SEAT STUD - Call your local BRP dealership
291000945
Unavailable
34
Hex. Jam Nut M10
232100600
$2.22
35
Flat Washer 10 mm, Stainless
234002600
$2.22
36
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
37
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
38
Staple
293730005
Unavailable
