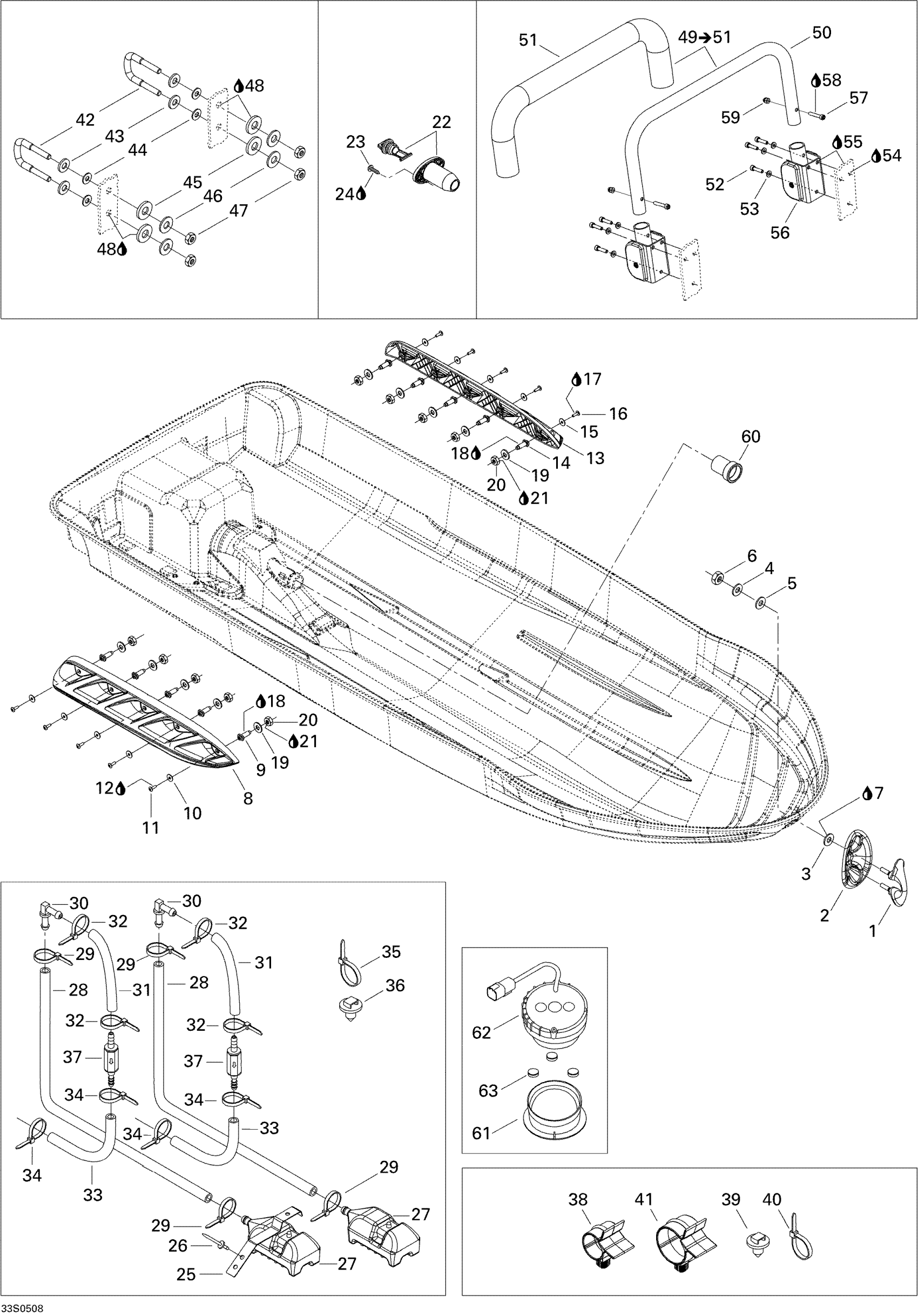

Sea-doo GTX 4-TEC, LTD SCIC, 2005 Hull Diagram

#

Description
Price

1

Eye-Bow (Black) This part replaces 292000708.

292000452

$33.12

2

Black Shell

292001837

$14.92

3

Stainless, Flat Washer 8 mm

234081600

$0.46

4

Flat Washer 8 mm, Stainless

250200175

$1.29

5

Rubber Washer

293830037

$2.68

6

Hex. Elastic Nut M8

232581600

$1.25

7

Silicone Sealant 51388, 300 ml

296000309

$35.72

8

RH Sponson

292001878

$72.77

9

SPONSON ADAPTER - Call your local BRP dealership

292001046

Unavailable

10

Flat Washer M6.6 X 22

250200022

$1.87

11

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$2.90

12

Loctite 243, 10 ml

293800060

$20.77

13

LH Sponson

292001877

$72.77

14

SPONSON ADAPTER - Call your local BRP dealership

292001046

Unavailable

15

Flat Washer M6.6 X 22

250200022

$1.87

16

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$2.90

17

Loctite 243, 10 ml

293800060

$20.77

18

Silicone Sealant 51388, 300 ml

296000309

$35.72

19

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

20

NUT-STOP ELASTIC DIN.985A2 - Call your local BRP dealership

250100078

Unavailable

21

Loctite 243, 10 ml

293800060

$20.77

22

Drain Plug

292001252

$28.57

23

Hex. Screw 10-14 X 7/8”

211000023

$2.91

24

Silicone Sealant 51388, 300 ml

296000309

$35.72

25

LH SPRING CLIP - Call your local BRP dealership

292000398

Unavailable

26

Avdel Rivet 3/16"

293150037

$0.47

27

Bailer Screen

292000688

Unavailable

28

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

29

Tie Wrap 94 mm | 4X4

293750001

$0.83

30

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

31

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

32

Tie Wrap 94 mm | 4X4

293750001

$0.83

33

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

34

Tie Wrap 94 mm | 4X4

293750001

$0.83

35

Tie-Rap 180 mm

414115200

$0.09

36

Mount Dart

293730040

$0.86

37

Check Valve

276000093

Unavailable

38

Cable Retainer

275500527

$2.68

39

Mount Dart

293730040

$0.86

40

Tie-Rap 180 mm

414115200

$0.09

41

Retainer

275500590

$7.18

42

U-Clamp

292000933

$32.47

43

Flat Washer M8.5 x 18

293050001

$1.29

44

Flat Washer 8 mm, Nylon

234081100

$1.00

45

Rubber Washer

293830037

$2.68

46

Flat Washer 8 mm, Stainless

250200175

$1.29

47

Hex. Elastic Nut M8

232581600

$1.25

48

Silicone Sealant 51388, 300 ml

296000309

$35.72

49

LADDER TUBE ASS'Y - Call your local BRP dealership

292001038

Unavailable

50

Not Available As Spare Part - Friction Washer

Unavailable

51

Protective Sleeve

292001067

Unavailable

52

Socket Head Screw M6 X 25, Scotch Grip

250000076

$1.60

53

Stainless Flat Washer M6

234061600

$0.25

54

Silicone Sealant 51388, 300 ml

296000309

$35.72

55

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12

56

STAIR SUPPORT - Call your local BRP dealership | LE

292000562

Unavailable

57

Socket Head Screw M6 X 35

205063560

$1.85

58

Loctite 243, 10 ml

293800060

$20.77

59

Nut M6 | Model-Australie, Brezil, Europe

232361600

$3.60

60

HULL INSERT, 41 MM - Call your local BRP dealership

292000975

Unavailable

61

Not Available As Spare Part - Friction Washer

Unavailable

62

DEPTH SENSOR - Call your local BRP dealership

278001995

Unavailable

63

Gel Pad

293550042

$16.87
