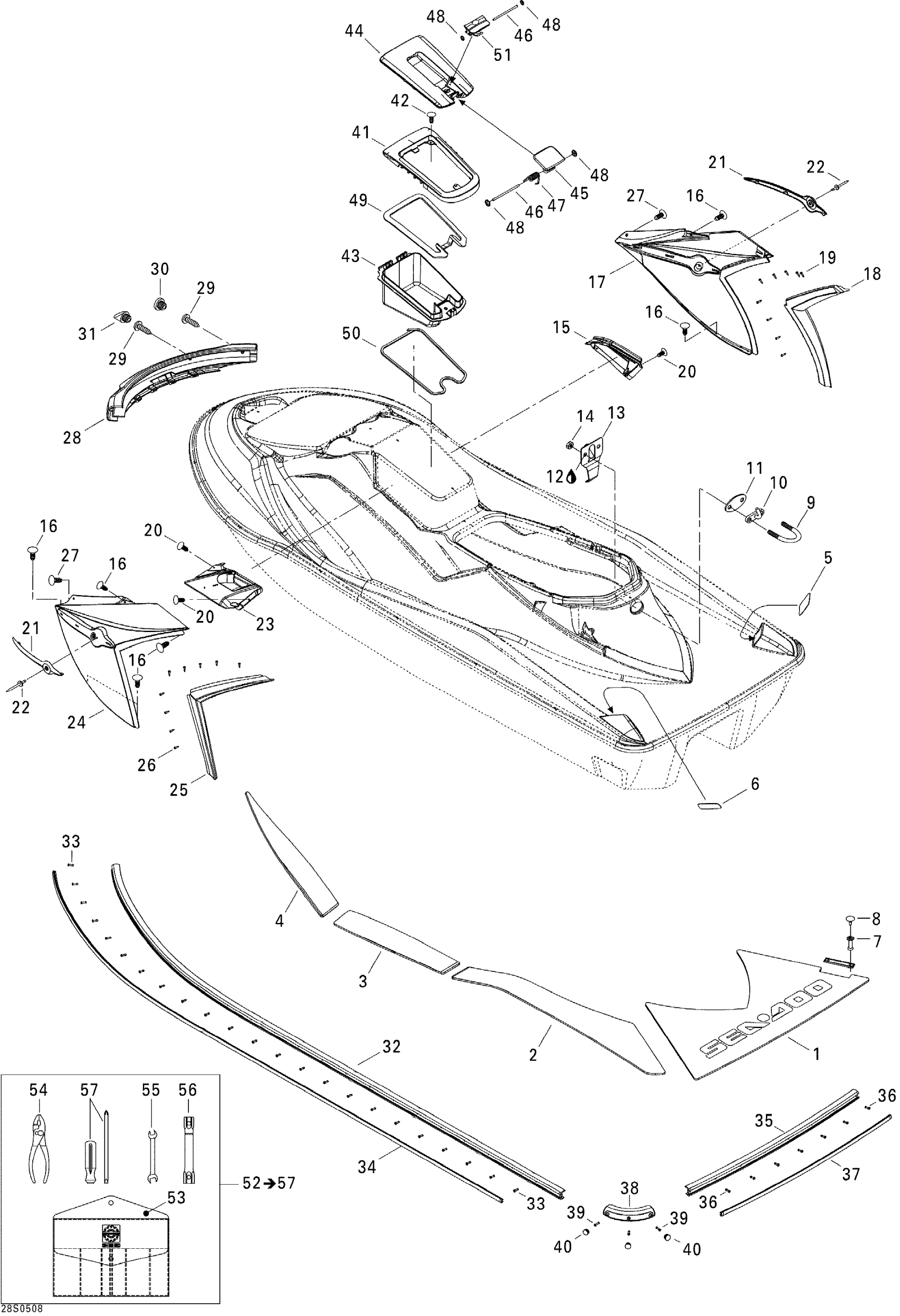

Sea-doo GTX 4-TEC, LTD SCIC, 2005 09- Body, Rear View Diagram

#

Description
Price

1

Rear Carpet

291002140

Unavailable

2

RH Center Rear Carpet

291002162

Unavailable

2

LH Center Rear Carpet

291002164

Unavailable

3

RH Center Front Carpet

291002166

Unavailable

3

LH Center Front Carpet

291002168

Unavailable

4

RH Front Carpet

291002170

Unavailable

4

LH Front Carpet

291002172

Unavailable

5

RH ANTI-SKID - Call your local BRP dealership

291001758

Unavailable

6

LH Anti-Skid

291001759

Unavailable

7

Rivet 1/8"

293150016

$0.40

8

Black, Snap Cap

293000014

$1.09

9

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

10

Hook | Package LTD

291002351

$69.99

11

Black, Finition Plate

291001386

$10.99

12

Silicone Sealant 51388, 300 ml

296000309

$36.99

13

Retainer Plate

291001747

Unavailable

14

Hex. Elastic Nut M8

232581600

$1.48

15

RH Grille, Slate Gray

269501309

Unavailable

16

Dart, Black

293730004

Unavailable

17

RH Splash Guard, Pearl Black | Black Perle

291002081

Unavailable

18

RH Moulding

291001784

Unavailable

19

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable

20

Black, Dart

293730006

$0.99

21

FINITION PLATE - Call your local BRP dealership

269500716

Unavailable

22

Pop Rivet 3/16"

293150008

$0.50

23

LH Grille, Slate Gray

269501310

Unavailable

24

LH Splash Guard, Pearl Black | Black Perle

291002080

Unavailable

25

LH Moulding

291001785

Unavailable

26

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable

27

Black Dart

293730010

$0.99

28

BUMPER NOSE, SLATE GREY - Call your local BRP dealership

291002069

Unavailable

29

TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership

250000236

Unavailable

30

BUMPER PLUG, SLATE GREY - Call your local BRP dealership

291002070

Unavailable

31

Bumper Plug, Slate Grey

291002071

Unavailable

32

SIDE BUMPER, SLATE GREY - Call your local BRP dealership

291002072

Unavailable

33

Pop Rivet 3/16"

293150005

$0.52

34

SIDE BUMPER TRIM - Call your local BRP dealership

204050271

Unavailable

35

Rear Bumper, Slate Grey

291002075

Unavailable

36

Pop Rivet 3/16"

293150005

$0.52

37

Side Bumper Trim

291002077

Unavailable

38

BUMPER CORNER, SLATE GREY - Call your local BRP dealership

291002078

Unavailable

39

Pop Rivet 3/16"

293150013

$1.37

40

BUMPER PLUG, SLATE GREY - Call your local BRP dealership

291002079

Unavailable

41

Glove Box Trim

269501311

Unavailable

42

Black, Dart

293730006

$0.99

43

GLOVE BOX - Call your local BRP dealership

269501281

Unavailable

44

GLOVE BOX DOOR, SLATE GREY - Call your local BRP dealership

269501321

Unavailable

45

Latch, Black

269500553

$21.99

46

Pin

211400008

$9.10

47

Latch Spring

291000922

$7.39

48

Push Nut | Not shown

211100002

$2.19

49

GASKET - Call your local BRP dealership

293250146

Unavailable

50

GASKET - Call your local BRP dealership

293250127

Unavailable

51

LATCH, BLACK - Call your local BRP dealership | LTD

269501289

Unavailable

52

Tool Kit | Includes 52 to 57

294000682

Unavailable

53

Not Available As Spare Part - Friction Washer

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

56

Socket Wrench

529035731

Unavailable

57

DRIVER SCREW - Call your local BRP dealership

529019200

Unavailable
