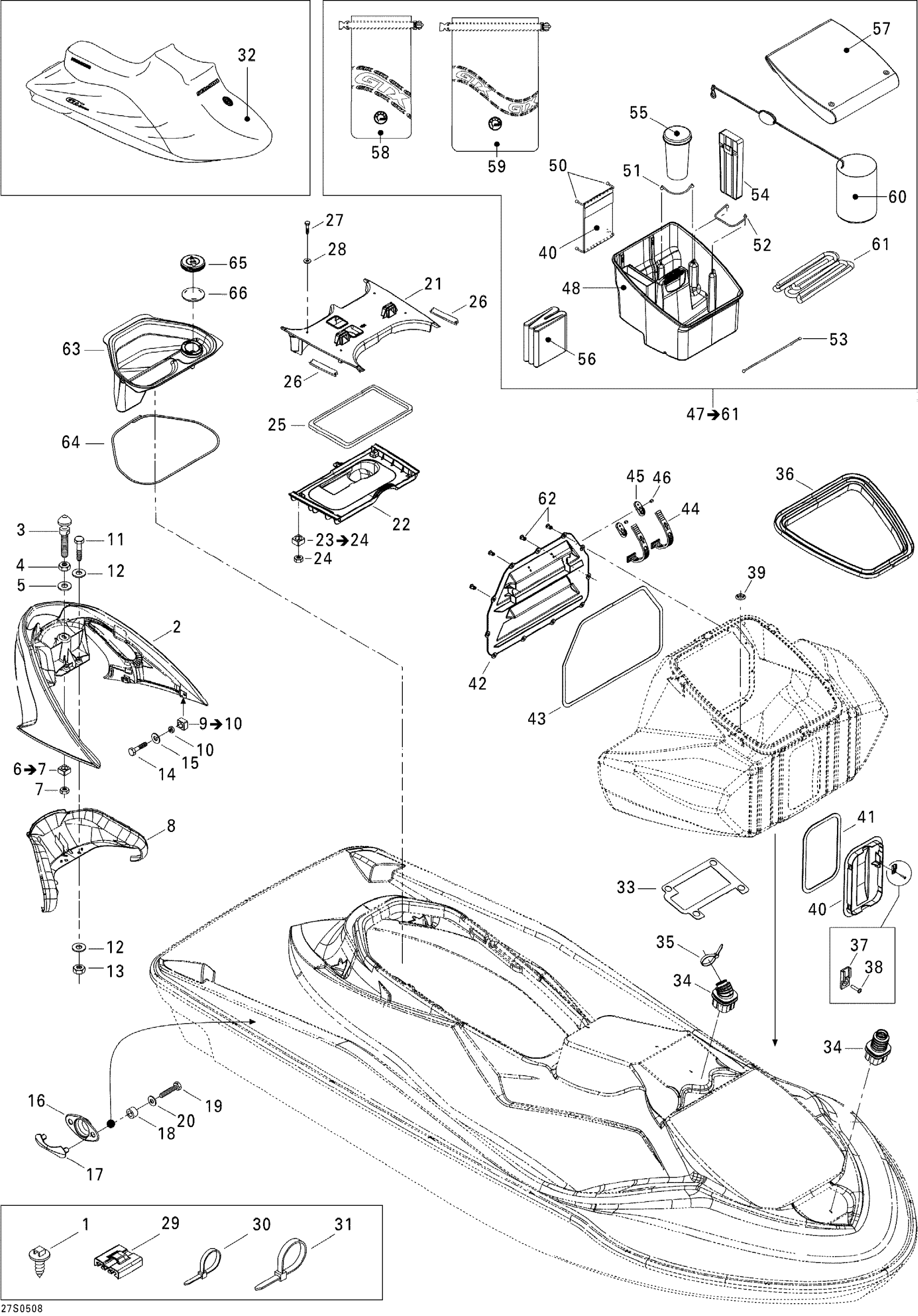

Sea-doo GTX 4-TEC, LTD SCIC, 2005 Body, Front View Diagram

#

Description
Price

1

Mount Dart

293730040

$0.86

2

Grab Handle, Slate Grey

269001265

Unavailable

3

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

4

Hex. Jam Nut M10

232100600

$1.85

5

Flat Washer 10 mm, Stainless

234002600

$1.85

6

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

7

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

8

Grab Handle Cover, Slate Grey

269001266

Unavailable

9

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

10

Hex. Elastic Stop Nut M6

232561600

$0.92

11

Hex. Screw M8 X 45

207084560

$2.77

12

Stainless, Flat Washer 8 mm

234081600

$0.46

13

Hex. Elastic Nut M8

232581600

$1.25

14

Hex. Screw M6 X 25

207162560

$1.22

15

Flat Washer M6, Stainless

234062600

$0.64

16

CARGO HOOK BASE - Call your local BRP dealership

291001195

Unavailable

17

HOOK CARGO CLEATS - Call your local BRP dealership

291001196

Unavailable

18

Spacer

291001203

$10.28

19

Hex. Screw M5 X 16, Scotch Grip

207351660

$0.69

20

Flat Washer 5 mm, Stainless

234052600

$0.64

21

UPPER BRIDGE, BLACK - Call your local BRP dealership

291002136

Unavailable

22

Lower Bridge, Black

291002138

Unavailable

23

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

24

Elastic Stop Nut M6, Brass

232561200

$3.51

25

GASKET - Call your local BRP dealership

293200090

Unavailable

26

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

27

Hex. Screw M6 X 75

207167560

Unavailable

28

Flat Washer M6, Stainless

234062600

$0.64

29

Tie-Rap Mount

293750025

$0.99

30

Tie-Rap 180 mm

414115200

$0.09

31

Tie Wrap 368 mm

293750008

$0.85

32

Cover | Black Perle This part replaces 280000155.

280000371

$325.34

33

GASKET - Call your local BRP dealership

293250171

Unavailable

34

GROMMET - Call your local BRP dealership

293720042

Unavailable

35

Tie-Rap 180 mm

414115200

$0.09

36

Cover Trim

269501234

Unavailable

37

Clip

270000141

$8.33

38

Flange Screw K40 X 20

241642060

$1.06

39

Black Plug

291000279

$5.99

40

Front Door

291001744

Unavailable

41

Gasket, Neoprene 2000Mm Long

219704476

$12.64

42

Rear Door

291001743

Unavailable

43

Gasket, Neoprene 2000Mm Long

219704476

$12.64

44

Strap

269502417

$14.27

45

Hook

269500521

Unavailable

46

Avdel Rivet

293150027

$2.30

47

Removable Tray Ass'y, Ltd | Includes 47 to 61

269501312

Unavailable

48

Removable Tray | Includes 40 to 45

269501478

$90.97

49

Storage Pocket

269501442

Unavailable

50

STRAP - Call your local BRP dealership

269501175

Unavailable

51

STRAP - Call your local BRP dealership

269501174

Unavailable

52

STRAP - Call your local BRP dealership

269501175

Unavailable

53

STRAP - Call your local BRP dealership

269501176

Unavailable

54

Cellular Phone Case | LTD

269501313

Unavailable

55

Safety Kit | Package LTD

295100330

$18.82

56

Ice-box

269501314

Unavailable

57

Luggage Net

269501315

Unavailable

58

Dry Bag 10 | Not shown

269502121

$35.07

59

Dry Bag, 40 Liters

269501438

Unavailable

60

ANCHOR SANDBAG - Call your local BRP dealership

269501318

Unavailable

61

15' ANCHOR CABLE - Call your local BRP dealership

269501319

Unavailable

62

Tuflok Plastic Rivet

293150230

$1.21

63

Rear Tray

269501036

Unavailable

64

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

65

COVER - Call your local BRP dealership

269000788

Unavailable

66

COVER SEAL - Call your local BRP dealership

269000810

Unavailable
