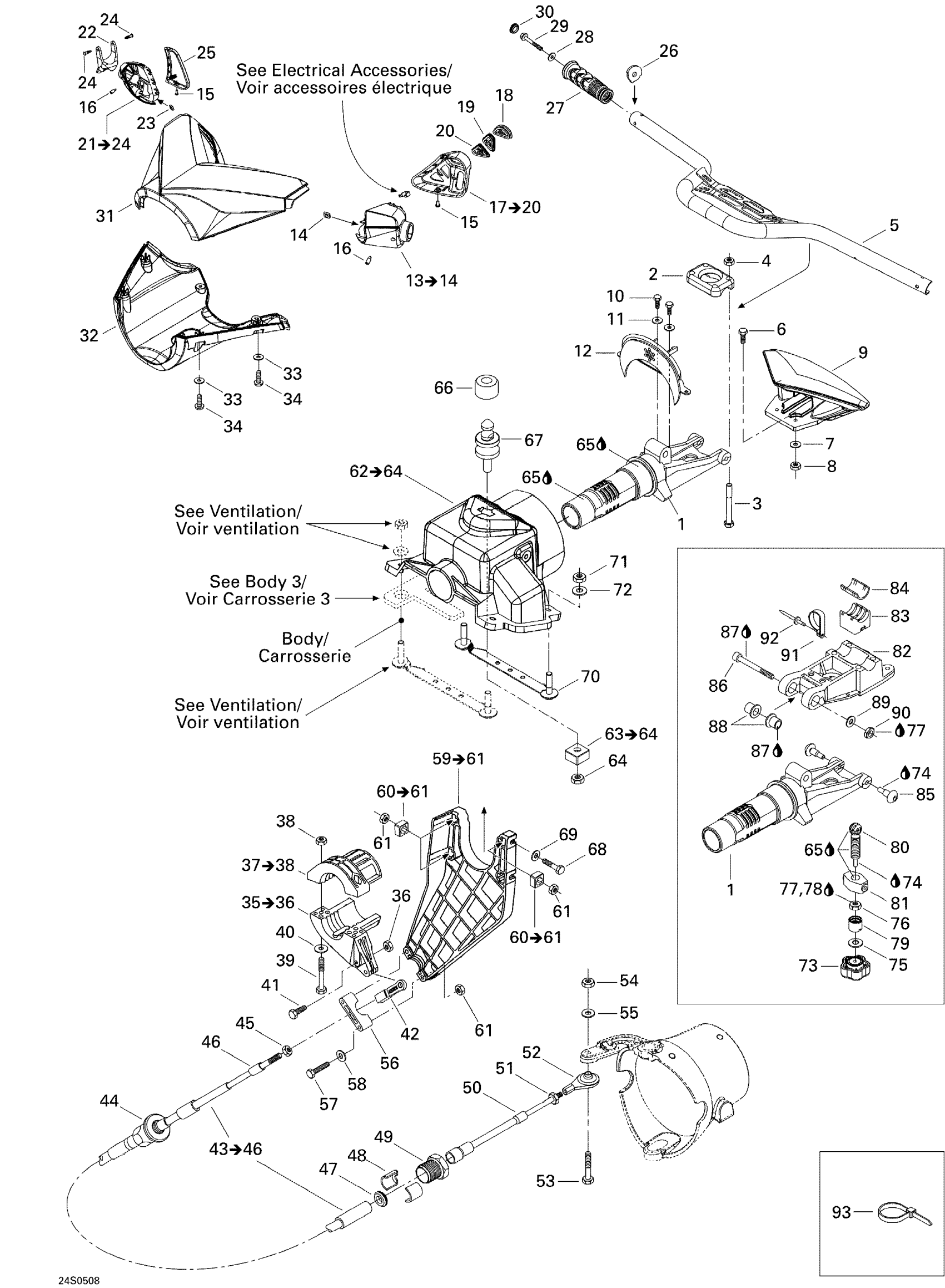

Sea-doo GTX 4-TEC, LTD SCIC, 2005 Steering System Diagram

#

Description
Price

1

Steering Stem

277000758400

Unavailable

2

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

3

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

4

Hex. Elastic Nut M8

232581600

$1.48

5

Handlebar

277001452

Unavailable

6

Hex. Screw M6 X 30

207063060

$1.89

7

Stainless Flat Washer M6

234061600

$0.33

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

HANDLE PAD, METALLIC SILVER - Call your local BRP dealership | Black Perle

277001361

Unavailable

10

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

11

Flat Washer M6, Stainless

234062600

$0.77

12

Plate, Black

277000766

Unavailable

13

HOUSING ASS'Y - Call your local BRP dealership | Includes 8 to 9

277001481

Unavailable

14

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

15

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

16

Socket Head Screw M6 X 16

250000036

$9.00

17

LH Housing Cover Ass'y | Includes 17 to 20

277001334

Unavailable

18

Stop Knob

278001713

$18.49

19

MODE KNOB - Call your local BRP dealership

278001714

Unavailable

20

SET KNOB - Call your local BRP dealership

278001715

Unavailable

21

THROTTLE HOUSING ASS'Y - Call your local BRP dealership | Includes 16 to 19

277001483

Unavailable

22

THROTTLE HANDLE - Call your local BRP dealership

277001485

Unavailable

23

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

24

PIN - Call your local BRP dealership

277000381

Unavailable

25

Throttle Housing Cover

277001354

Unavailable

26

Insert Grip Handle

277001863

$8.83

27

Handle Grip, Slate Grey

277001336

$19.49

28

Flat Washer M6, Stainless

234062600

$0.77

29

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

30

Black, Cap

277000203

$9.39

31

Upper Steering Cover, Slate Grey

277001337

Unavailable

32

Lower Steering Cover, Slate Grey

277001338

Unavailable

33

Flat Washer M5, Stainless

234051600

$0.77

34

Hex. Flange Screw K40 X 16

241141660

$1.48

35

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

36

Hex. Elastic Stop Nut M6

232561600

$1.15

37

Arm Thrust | Includes 43 to 44

277000519

Unavailable

38

Hex. Elastic Stop Nut M6

232561600

$1.15

39

Hex. Screw M6 X 25

207162560

$1.47

40

Flat Washer M6, Stainless

234062600

$0.77

41

Hex. Screw M6 X 30

211000081

$3.59

42

Ball Joint

277001180

$35.99

43

Steering Cable | Includes 43 to 46

277001326

Unavailable

44

Ajustment Knob

277000782

$22.99

45

Hex. Nut 1/4"-28

211100056

$0.69

46

Terminal Wiper

277000441

$11.99

47

Rubber Washer

293830063

$1.90

48

Half Ring

277001527

$10.37

49

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

50

Terminal Wiper

277000441

$11.99

51

Hex. Nut 1/4"-28

211100056

$0.69

52

Ball Joint

277000775

$51.99

53

Hex. Screw M6 X 35

207063560

$2.22

54

Hex. Elastic Stop Nut M6

232561600

$1.15

55

Stainless Flat Washer M6

234061600

$0.33

56

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

57

Hex. Screw M6 X 50

207065060

$2.22

58

Stainless Flat Washer M6

234061600

$0.33

59

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

60

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

61

Hex. Nut M6

232061600

$1.15

62

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

63

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

64

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

65

Synthetic Grease, 400 G

293550010

Unavailable

66

RUBBER PAD - Call your local BRP dealership

293830078

Unavailable

67

Latch Stud

291002147

Unavailable

68

Hex. Forming Screw M6 X 20

207162060

$1.29

69

Stainless Flat Washer M6

234061600

$0.33

70

STEERING SUPPORT - Call your local BRP dealership

277001072

Unavailable

71

Hex. Elastic Nut M8

232581600

$1.48

72

Stainless, Flat Washer 8 mm

234081600

$0.55

73

ADJUSTER HANDLE - Call your local BRP dealership

277000764

Unavailable

74

Loctite 243, 10 ml

293800060

$21.49

75

Flat Washer 8 mm, Stainless

234082600

$2.43

76

Hex. Jam Nut M8

232180600

$0.67

77

Loctite 271, 10 ml

293800005

$26.99

78

Was 293800041 Loctite Primer 7649

219704458

$39.99

79

Stopper Bushing

277000786

Unavailable

80

ADJUSTER SCREW - Call your local BRP dealership

211000145

Unavailable

81

BLOCK - Call your local BRP dealership

277000761

Unavailable

82

Steering Support

277000901

Unavailable

83

STOPPER - Call your local BRP dealership

277000762

Unavailable

84

RUBBER PAD - Call your local BRP dealership

293830098

Unavailable

85

THREADED PIVOT - Call your local BRP dealership

277000763

Unavailable

86

SOCKET HEAD SCREW M10 X 73 SCOTCH GRIP - Call your local BRP dealership

250000004

Unavailable

87

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

88

SUPPORT BUSHING - Call your local BRP dealership

277000844

Unavailable

89

Flat Washer 10 mm, Stainless

234001600

$1.15

90

Hex. Jam Nut M10

232100600

$2.22

91

CLAMP TIE - Call your local BRP dealership

293750021

Unavailable

92

Pop Rivet 3/16"

293150008

$0.50

93

Tie Wrap 368 mm

293750008

$1.04
