- GTX 4-TEC, LTD SCIC, 2005
05- Reverse

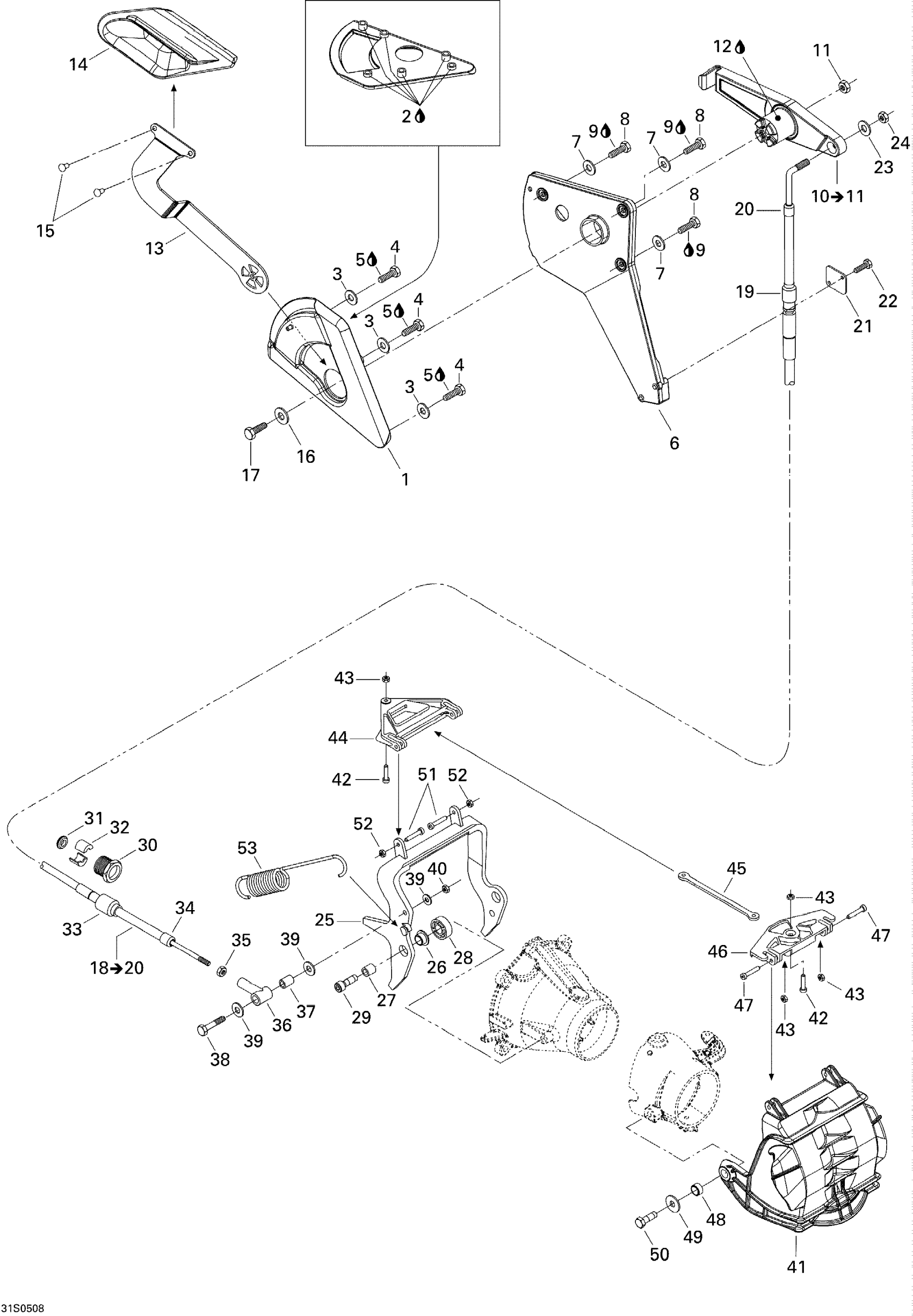

Sea-doo GTX 4-TEC, LTD SCIC, 2005 05- Reverse Diagram
#
1
REVERSE HANDLE HOUSING - Call your local BRP dealership
268000009
Unavailable
2
Silicone Sealant 51388, 300 ml
296000309
$36.99
3
Flat Washer M6.6 X 22
250200022
$2.72
4
Hex. Cap Screw M6 X 12
207161260
$1.26
5
Loctite 243, 10 ml
293800060
$21.49
6
REVERSE CABLE SUPPORT - Call your local BRP dealership
268000010
Unavailable
7
Flat Washer M6, Stainless
234062600
$0.77
8
Hex. Screw M6 X 16
207161660
$1.59
9
Loctite 243, 10 ml
293800060
$21.49
10
Lever Ass.
271000986
$42.99
11
Hex. Elastic Stop Nut M6
232561600
$1.15
12
Synthetic Grease, 400 G
293550010
Unavailable
13
REVERSE HANDLE LEVER - Call your local BRP dealership | GTS PRO
268000022
$44.99
14
Reverse Handle, Slate Gray
271001510
Unavailable
15
Phillips Screw M5 x 12
250000319
$1.39
16
Stainless Flat Washer M6
234061600
$0.33
17
Hex. Screw M6 X 16
207161660
$1.59
18
Reverse Cable | Includes 16 to 18
268000030
$153.49
19
Boot, Large
277000473
Unavailable
20
Boot, Small
277000466
Unavailable
21
BRACKET - Call your local BRP dealership
277001058
Unavailable
22
Hex. Flange Screw M5 X 30
207153060
$1.99
23
Flat Washer M5, Stainless
234051600
$0.77
24
HEX. ELASTIC STOP NUT - Call your local BRP dealership
212000006
Unavailable
25
ARM BLACK - Call your local BRP dealership
271001012
Unavailable
26
Venturi Bushing
271000321
$8.69
27
Spacer
271001039
$16.49
28
BUSHING - Call your local BRP dealership | GTS PRO
293900038
Unavailable
29
PIVOT SCREW M8 X 25 - Call your local BRP dealership
250000026
Unavailable
30
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
31
RUBBER WASHER - Call your local BRP dealership
211100009
Unavailable
32
Half Ring
277000055
$9.49
33
Boot, Large
277000473
Unavailable
34
Boot, Small
277000466
Unavailable
35
Hex. Nut
212100005
$1.35
36
Joint
277001204
$18.49
37
Spacer
271001020
$12.99
38
Hex. Screw M6 X 35
207063560
$2.22
39
Flat Washer M6, Stainless
234062600
$0.77
40
Hex. Elastic Stop Nut M6
232561600
$1.15
41
Gate Reverse
271001317
Unavailable
42
PIVOT SCREW - Call your local BRP dealership
250000018
Unavailable
43
Hex. Elastic Nut M5 | X
232551600
$1.15
44
TRIANGLE - Call your local BRP dealership
268000013
Unavailable
45
CONNECTOR ROD - Call your local BRP dealership
271001018
Unavailable
46
ROD PIVOT - Call your local BRP dealership
268000014
Unavailable
47
SCREW PIVOT - Call your local BRP dealership
250000023
Unavailable
48
Spacer
277001066
Unavailable
49
Flat Washer 8 mm, Stainless
234082600
$2.43
50
Hex. Screw M8 X 30, Scotch Grip
207383060
$1.90
51
PIVOT SCREW - Call your local BRP dealership
250000018
Unavailable
52
Hex. Elastic Nut M5 | X
232551600
$1.15
53
Spring
271001328
$17.49
